3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Rockchip RK3399 | Rockchip RK3399K]
// [Rockchip RK3399 | Rockchip RK3399K]
// 4 GB
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 13~30V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

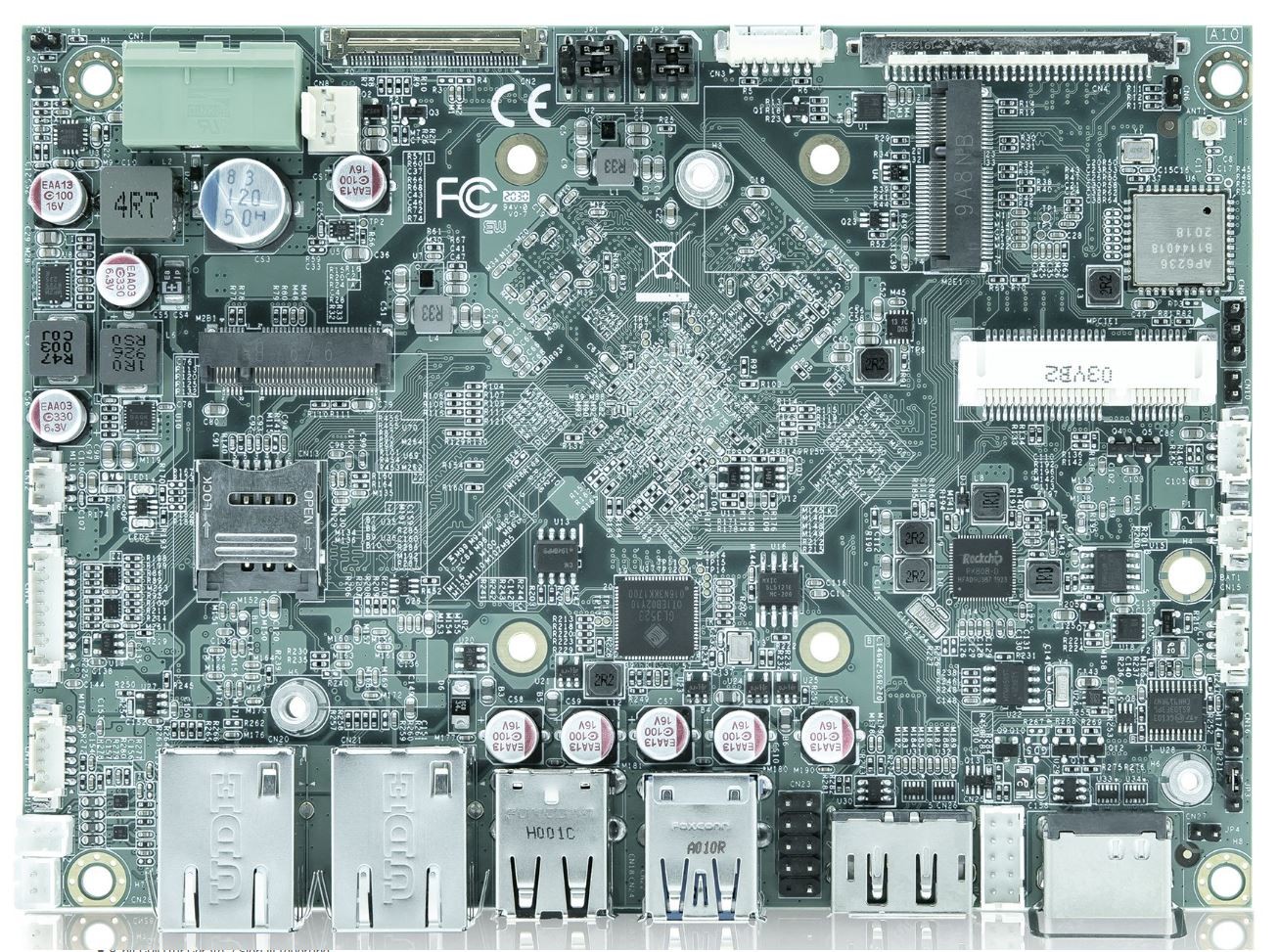

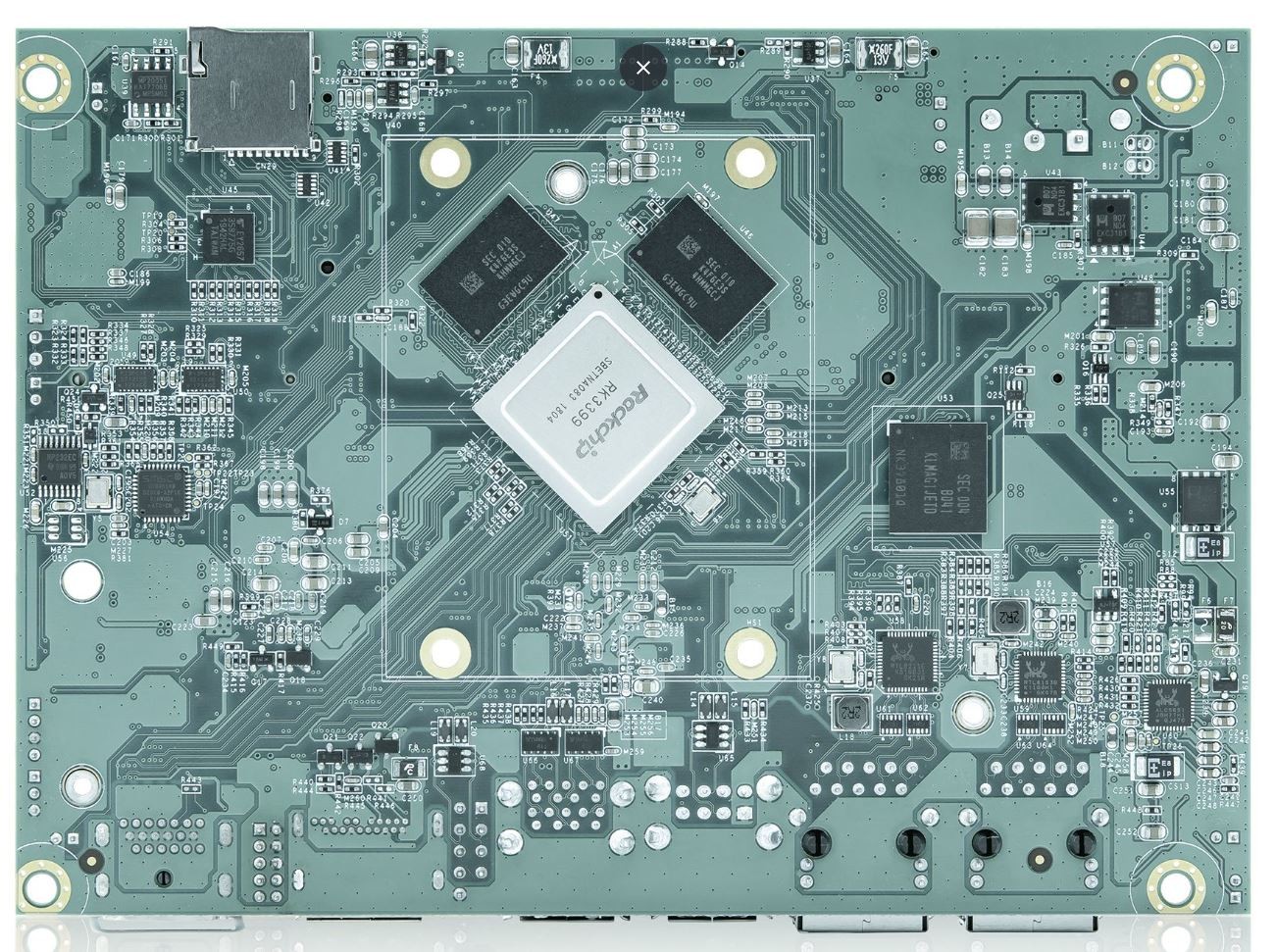

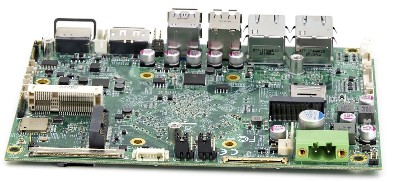

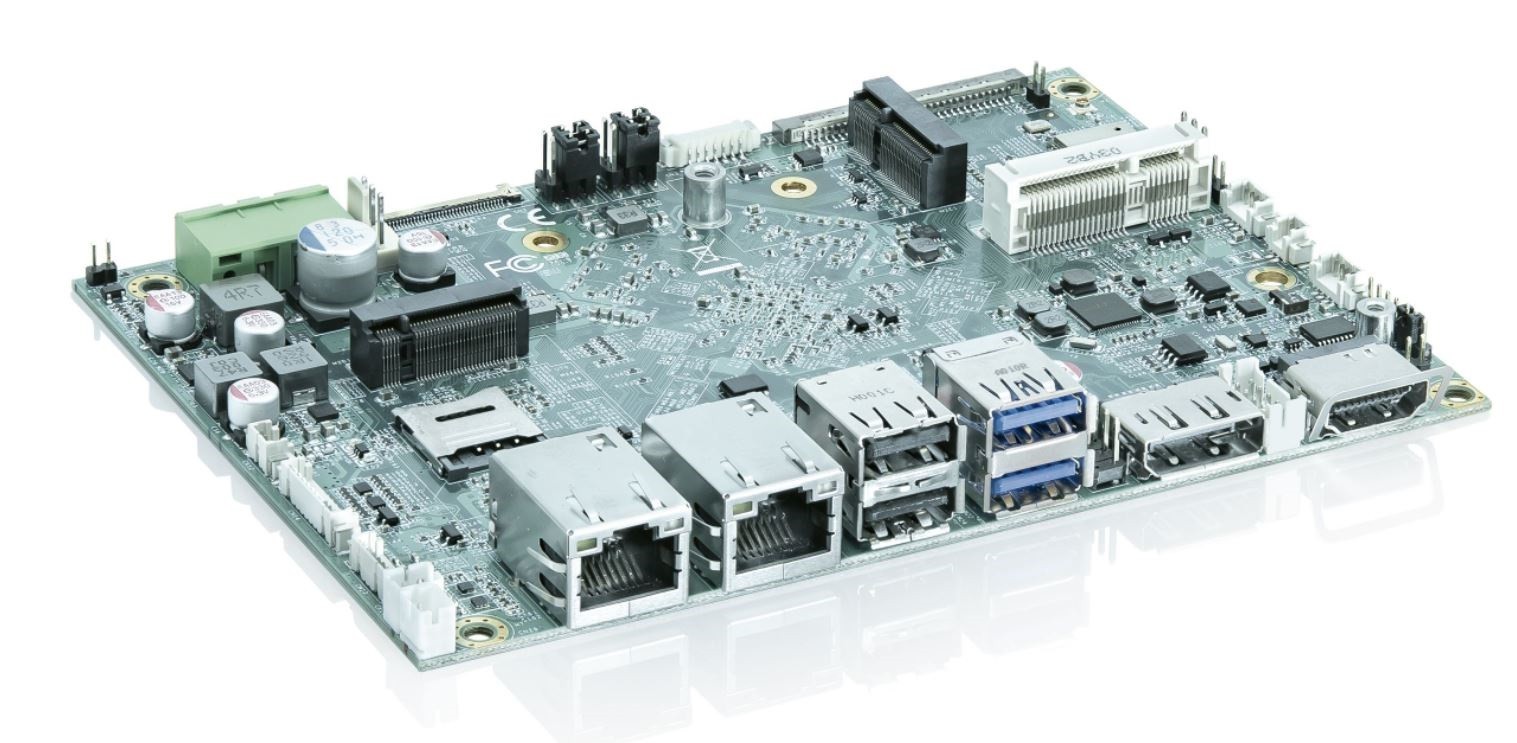

Basismodul: Kontron SBC-R39
| Allgemein | ||||
| SKU / Artikelnummer | SBC-R39 | |||
| Produktgrunddaten | ||||
| Hersteller | Kontron | |||
| System | ||||
| Prozessor | Serie | ARM Cortex-A72 | ||
| Nummer | Rockchip RK3399, Rockchip RK3399K | |||
| CPU Kerne | 2 St | |||
| Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz | |||
| Prozessor 2 | Serie | ARM Cortex-A53 | ||
| Nummer | Rockchip RK3399, Rockchip RK3399K | |||
| CPU Kerne | 4 St | |||
| Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz | |||
| Speicher | Memory Type | DDR4 | ||
| Speicher onBoard | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) 16 GB | |||
| Grafik | ||||
| Prozessor | Mali-T864 | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0 | |||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | B | |
| Interface | USB 3.0 | |||
| Unterstütze Abmaße | 3042 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | B, E | |||
| SIM | Formfaktor (Slot) | Micro SIM | ||
| Storage | Micro-SD | |||
| Audio | ||||
| Chipsatz | Realtek ALC5651 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Realtek RTL8211E (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8153B (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n | |
| Bluetooth | Versions / Features | v4.0 | ||
| Netzwerk | 2x G-LAN, Bluetooth, Wi-Fi | |||

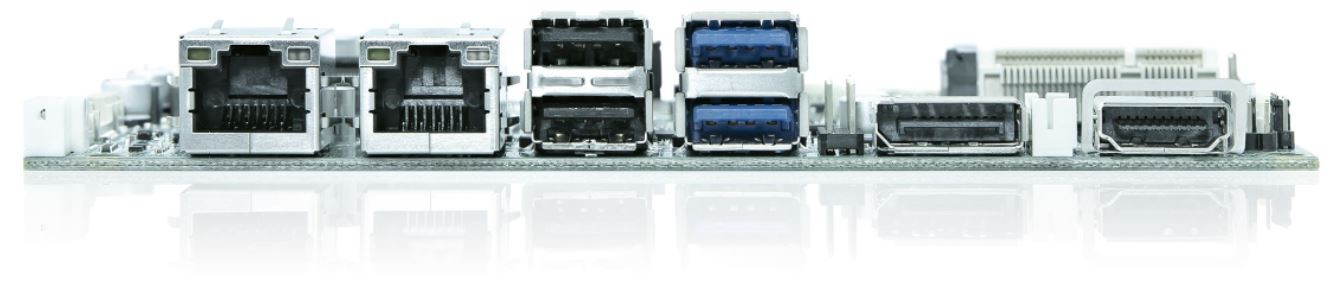

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Displayport | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.2 (Gen 1) | 2 St | |||
| USBOTG (USB On-The-Go) | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
| Anzeige | LVDS | Dual Channel | ||
| LVDS Anschlüsse | 1 St | |||
| eDP (embedded Display Port) Lanes | 1 St | |||
| Digital I/O | Bits | 8-Bit | 1 St | |
| I²C | 1 St | |||
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Amplifier | 2 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Microchip ATSHA204A | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Bereich | 13~30V | |
| Anschluss | 2 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 13~30V | |||
| Betriebssysteme / Software | ||||
| Android | Release | 7 | ||
| Unterstützte BS | Android | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -20° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | 3,5" | ||
| Breite | 146 mm | |||
| Tiefe | 105 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
