3,5" Mainboards
// 3,5" Industrie-Mainboards
// [Intel Core i3-1315UE | Intel Core i3-1315URE | Intel Core i5-1335UE | Intel Core i5-1345UE | Intel Core i5-1345URE | Intel Core i7-1365UE | Intel Core i7-1365URE | Intel U300E]
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// LVDS
// 4 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: MSI MS-CF17
Allgemein | ||||
SKU / Artikelnummer | MS-CF17 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
Produkt-ID | 916-CF17-001, 916-CF17-002, 916-CF17-003, 916-CF17-004, 916-CF17-005, 916-CF17-006, 916-CF17-007, 916-CF17-008 | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Raptor Lake | |||
Nummer | Intel Core i3-1315UE, Intel Core i3-1315URE, Intel Core i5-1335UE, Intel Core i5-1345UE, Intel Core i5-1345URE, Intel Core i7-1365UE, Intel Core i7-1365URE, Intel U300E | |||
CPU Kerne | 5 St, 6 St, 10 St | |||
Threads | 6 St, 8 St, 12 St | |||
Sockel | BGA 1744 | |||
Basis Frequenz | 1,1 GHz, 1,2 GHz, 1,3 GHz, 1,4 GHz, 1,7 GHz | |||
Performance-core Max Turbo Frequenz | 4,3 GHz, 4,5 GHz, 4,6 GHz, 4,9 GHz | |||
Efficient-core Max Turbo Frequenz | 3,2 GHz, 3,3 GHz, 3,4 GHz, 3,7 GHz | |||
Cache | 8 MB, 10 MB, 12 MB | |||
Thermal Design Power (TDP) | 28 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 5200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81966AB-I | |
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0 | |||
LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | B | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2242, 3042 | |||
Slot 3 | Key ID | E | ||
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC897 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 4 St | |||
Netzwerk | 4x G-LAN | |||

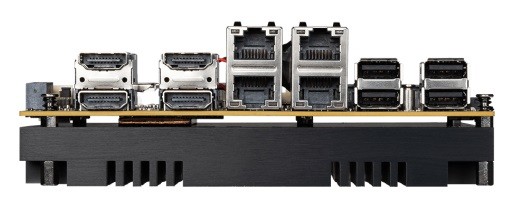

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 4 St | ||
Ethernet | RJ-45 | 4 St | ||
USB | USB v3.2 (Gen 2) | 4 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
Seriell | RS-232 / 422 / 485 | Ports (Sonderanschluss) | 4 St | |
Anzeige | LCD- / Inverterstrom | Ja | ||
Digital I/O | Bits | 16-Bit | 1 St | |
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Amplifier | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9672 VU 2.0, Infineon SLB 9672 XU 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 70°C | ||
Lagerung | -20° bis 80°C, -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Lagerung | 10 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | 3,5" | ||
Breite | 146 mm | |||
Tiefe | 102 mm | |||
Gewicht | 670 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, International Certificate (IC), RCM, UKCA, VCCI | |||
RoHS konform | Ja |
