4" Mainboards
// 4" Industrie-Mainboards
// [Intel Atom x7211E | Intel Atom x7425E | Intel Core i3-N305 | Intel N97]
// SoC (System-On-Chip)
// [8 GB | 16 GB]
// 3 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x Seriell I/O
// 1 x Mini-PCIe
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

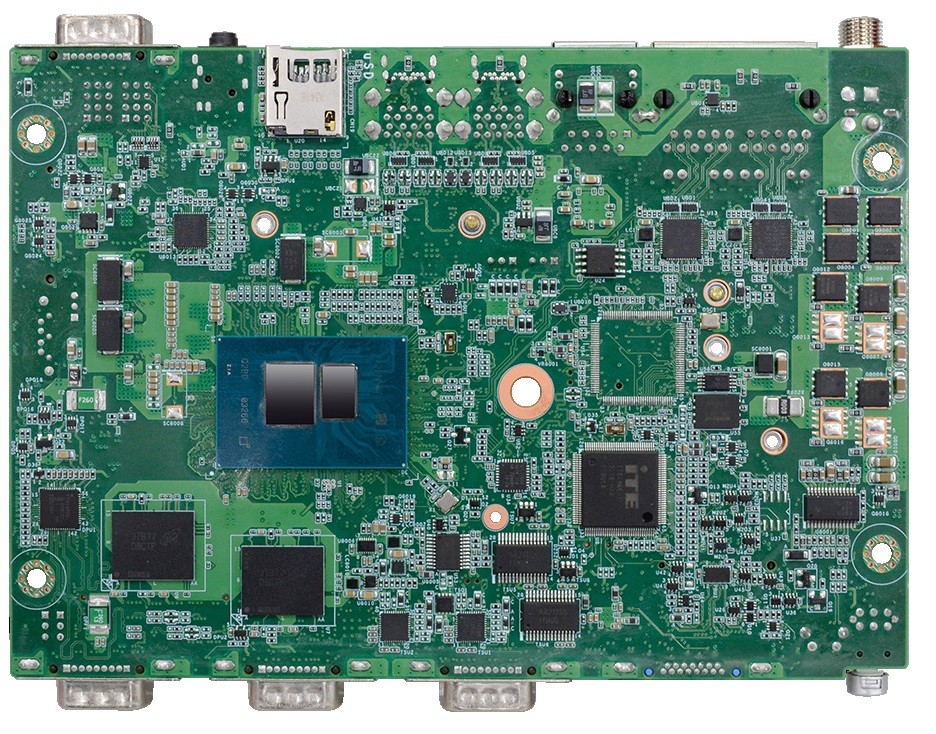

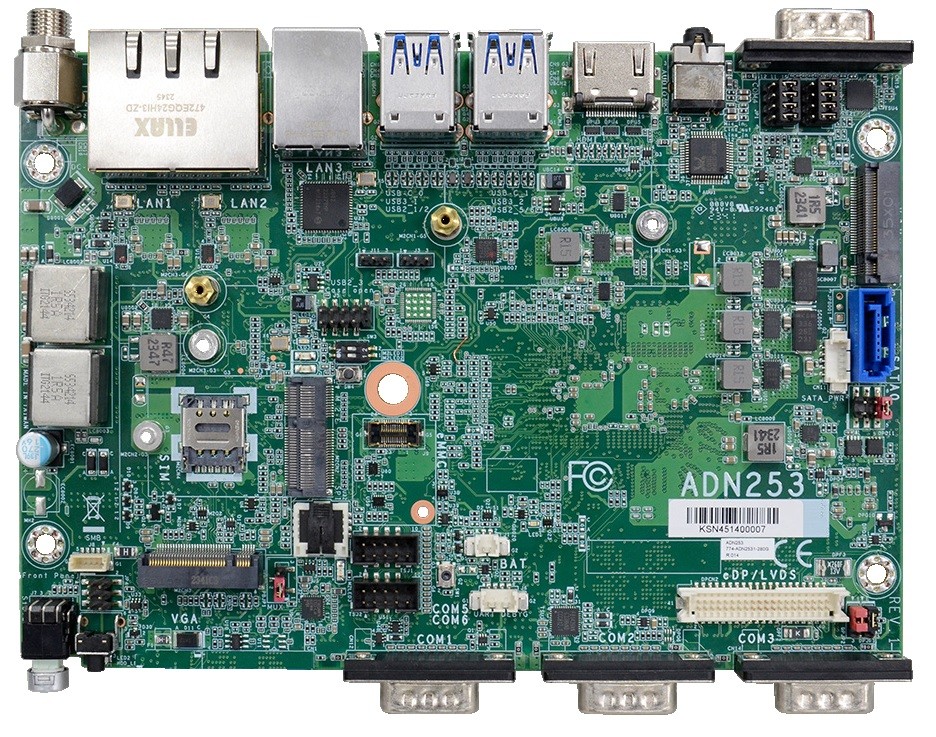

Basismodul: DFI ADN253
| Allgemein | ||||
| SKU / Artikelnummer | ADN253 | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-ADN2531-000G, 770-ADN2531-100G, 770-ADN2531-500G, 770-ADN2531-600G | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Alder Lake | |||
| Nummer | Intel Atom x7211E, Intel Atom x7425E, Intel Core i3-N305, Intel N97 | |||
| CPU Kerne | 2 St, 4 St, 8 St | |||
| Threads | 8 St, - | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,2 GHz, 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
| Thermal Design Power (TDP) | 6 W, 12 W, 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Memory Type | DDR5 | ||
| Frequenz | 4800 MHz | |||
| Speicher onBoard | 8 GB, 16 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| I/O Controller | Controller 1 | I/O Controller | ITE IT8786E | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 4 Displays | |||
| HDMI | Version | 1.4 | ||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×1 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 3), USB 2.0, USB 3.0 | |||
| Unterstütze Abmaße | 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | M.2, Micro-SD (extern) | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 3x G-LAN | |||

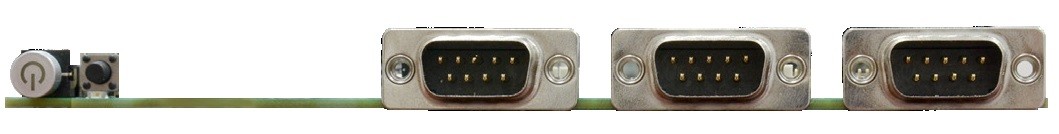

| Externe I/O (Frontseite) | ||||
| Seriell | RS-232 / 422 / 485 | DB-9 | 3 St | |

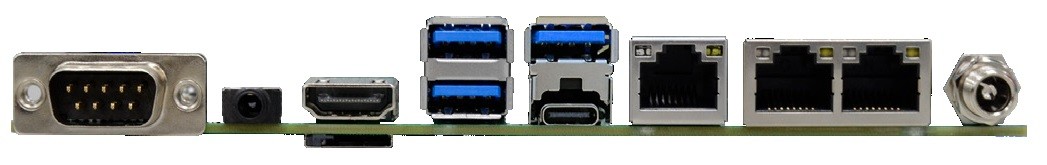

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP USB-C | 1 St | |||
| Audio | Combo Jack | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| RJ-45 mit OOB | 1 St | |||
| Digital I/O | Anzahl | 1 St | ||
| Bits | 8-Bit | |||
| Anschluss | DB-9 | |||
| USB | USB v3.2 (Gen 1) | 3 St | ||
| USB v3.2 (Gen 2, Type C) | 1 St | |||
| Interne I/O | ||||
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 2 St | |
| Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
| SMBus | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | DC Jack | |||
| Stromversorgung - Eingang | DC: 9~36V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 11 IoT | wird unterstützt | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 80°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Lagerung | 5 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | 4" | ||
| Breite | 165 mm | |||
| Tiefe | 115 mm | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Power | 1 St | ||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
