4" Mainboards
// 4" Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Pentium N4200]
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 1 x G-LAN (Front page)
// 3 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

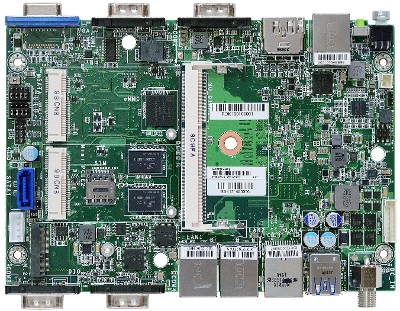

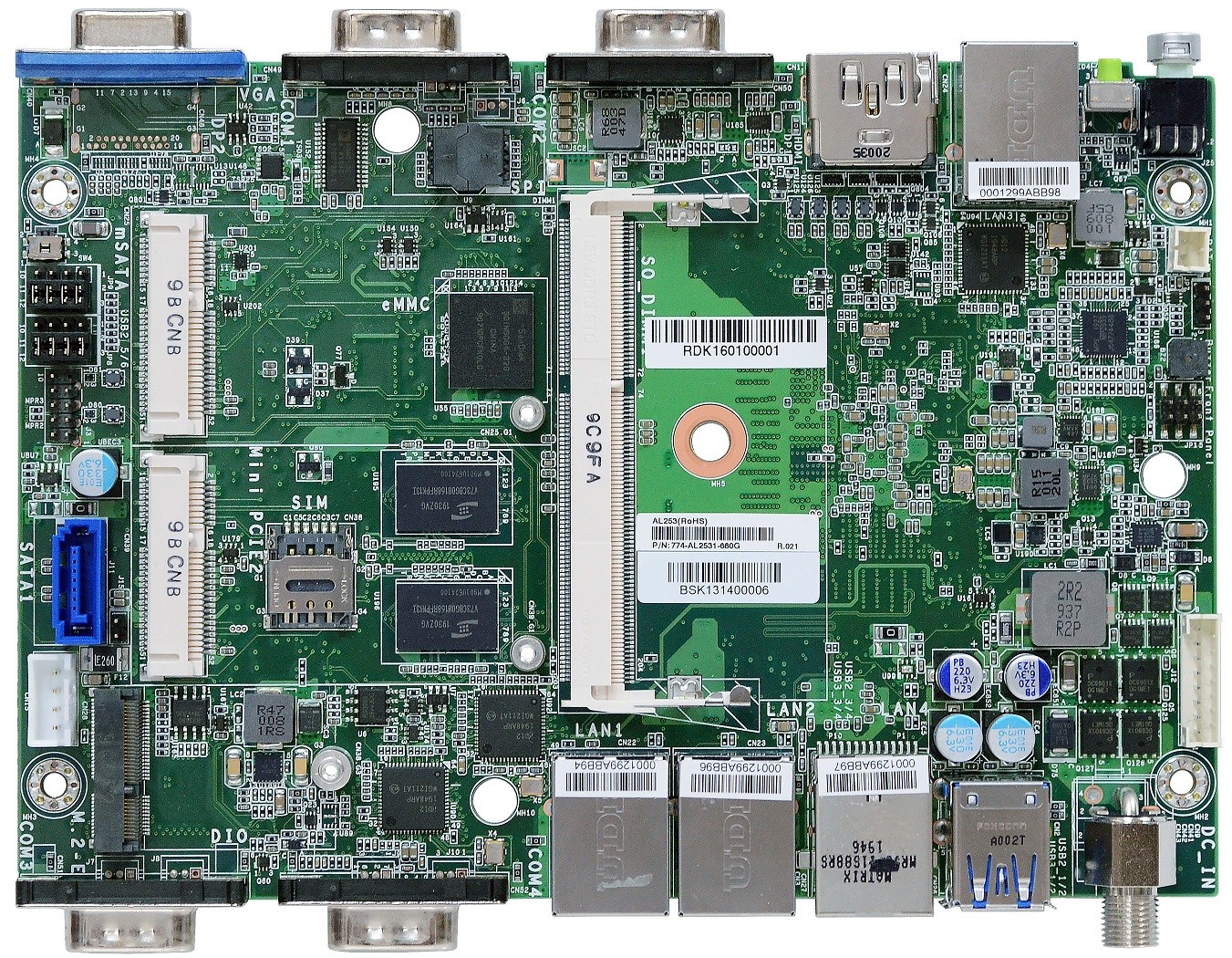

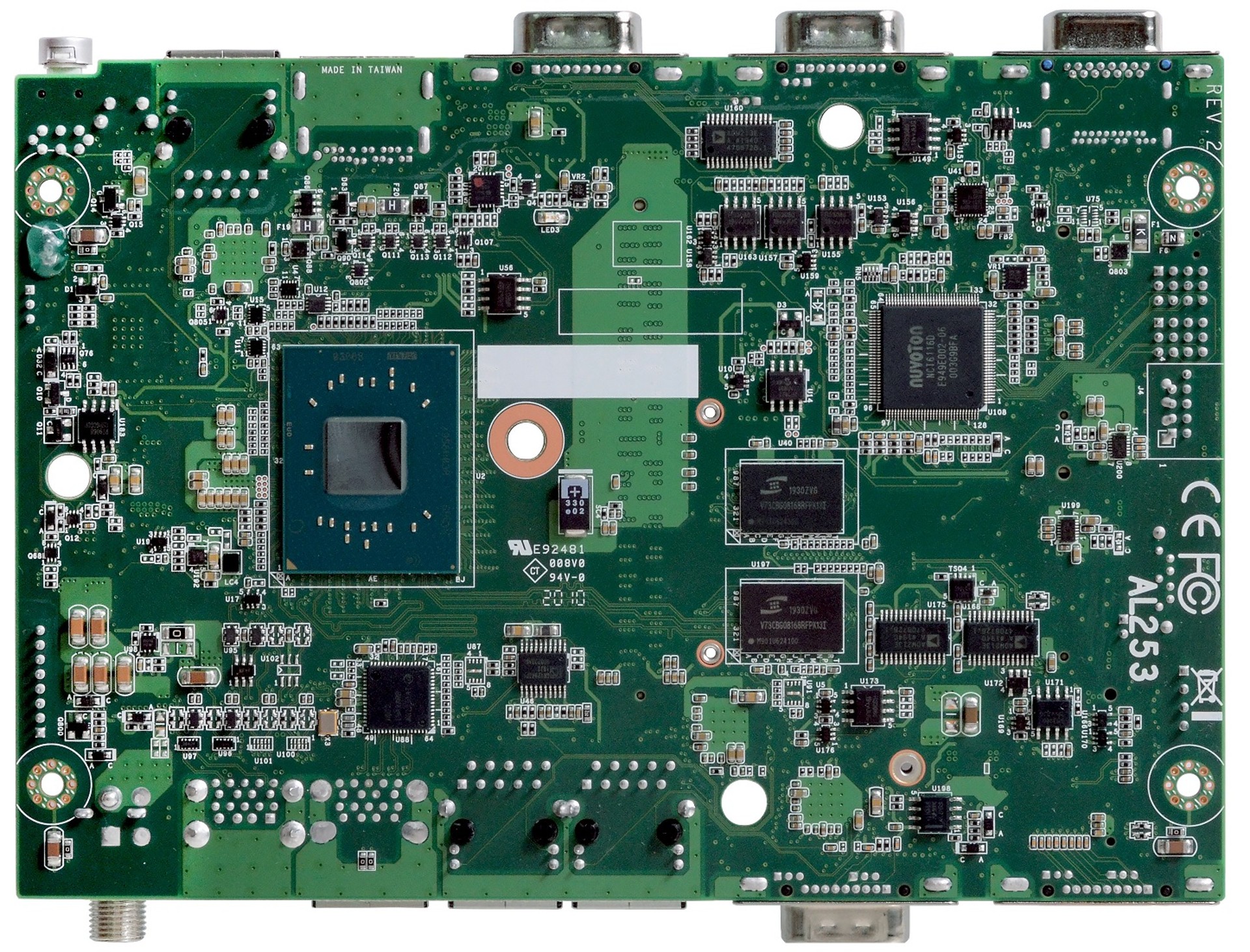

Basismodul: DFI AL253
Allgemein | ||||
SKU / Artikelnummer | AL253 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-AL2531-000G, 770-AL2531-100G, 770-AL2531-200G, 770-AL2531-300G, 770-AL2531-400G, 770-AL2531-500G, 770-AL2531-600G | |||
System | ||||
Prozessor | Serie | Intel Apollo Lake | ||
Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 1,8 GHz, 2,5 GHz | |||
Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 1866 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 2 GB, 4 GB | |||
BIOS | AMI SPI 128 Mbit | |||
Grafik | ||||
Prozessor | Intel HD Graphics 500, Intel HD Graphics 505 | |||
Bildschirme (Multidisplay) | 2 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
USB Unterstützung | Ja | |||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E | |||
Storage | mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 4 St | |||
Netzwerk | 4x G-LAN | |||

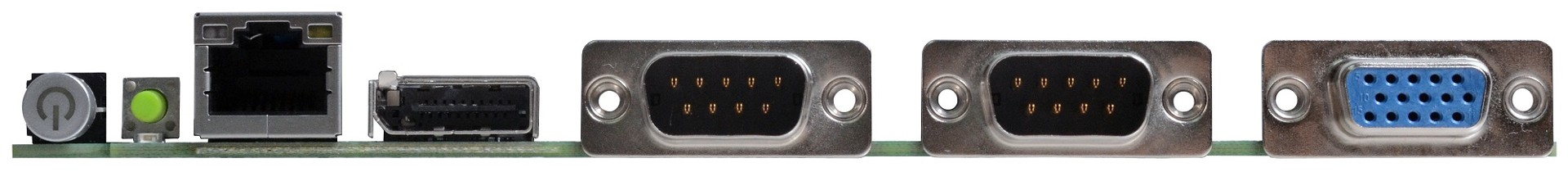

Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
DP++ | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |

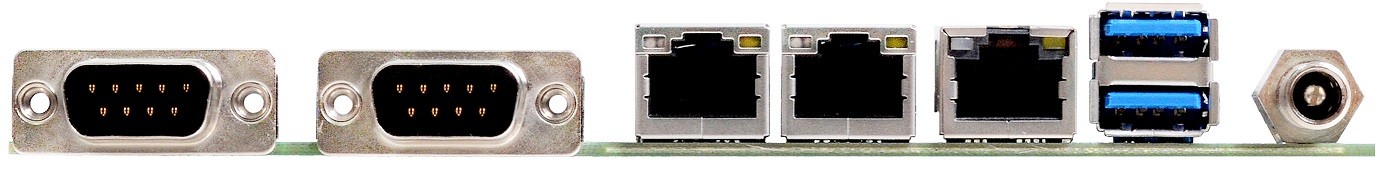

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 3 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
USB | USB v3.1 Gen. 1 | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C, -40° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | 4" | ||
Breite | 165 mm | |||
Tiefe | 115 mm | |||
Höhe | 24,1 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja |
