EPIC Mainboards
// EPIC Industrie-Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System-On-Chip)
// 1 x DVI-D
// 1 x Displayport
// LVDS
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12~48V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

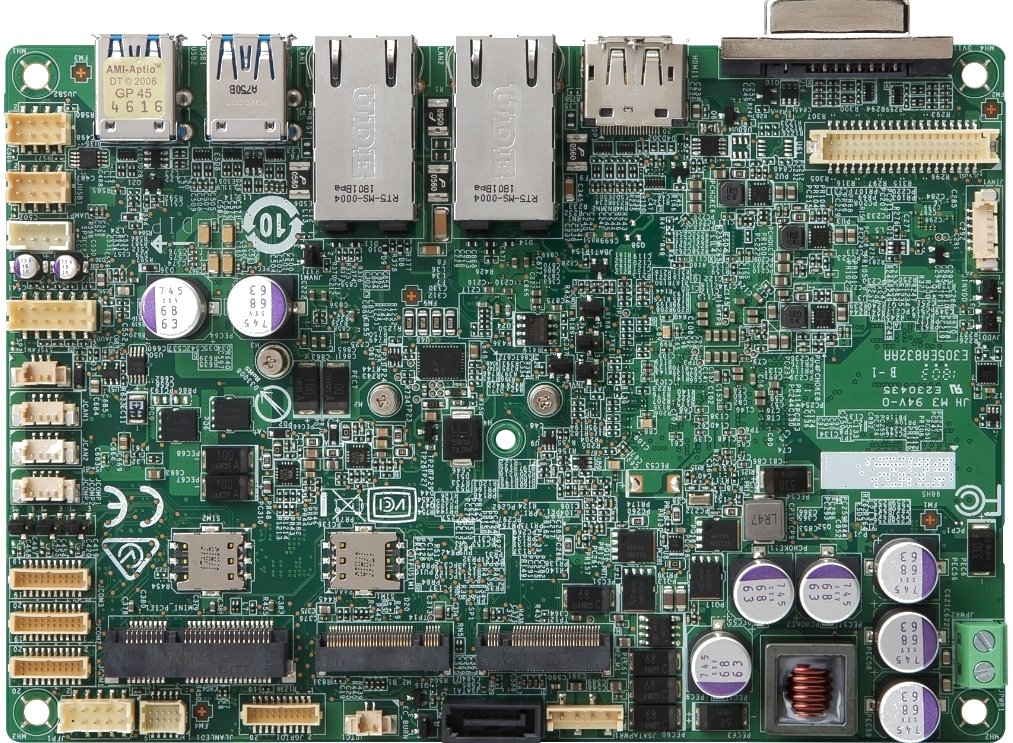

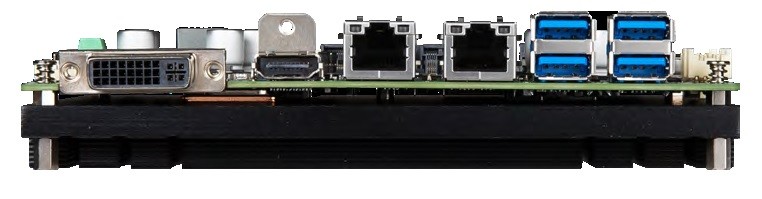

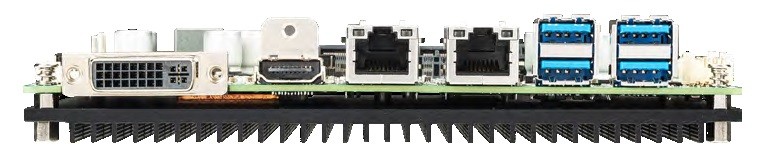

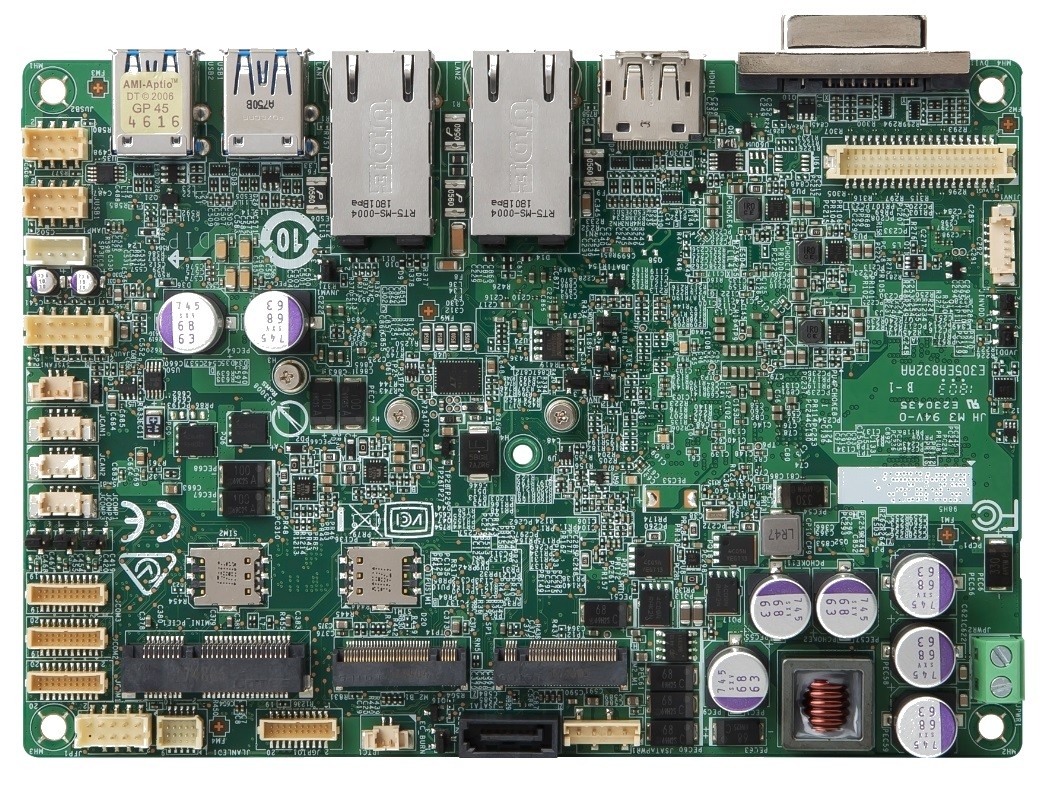

Basismodul: MSI MS-98H5
| Allgemein | ||||
| SKU / Artikelnummer | MS-98H5 | |||
| Produktgrunddaten | ||||
| Hersteller | MSI | |||
| System | ||||
| Prozessor | Serie | Intel Apollo Lake | ||
| Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St | |||
| Sockel | BGA 1296 | |||
| Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Memory Type | DDR4 | ||
| Frequenz | 2133 / 2400 MHz | |||
| Maximaler Ausbau | 4 GB | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | Fintek F81867D-I | |
| Grafik | ||||
| Prozessor | Intel HD Graphics | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 24 Bit | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | SATA III | |||
| Unterstütze Abmaße | 2242 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Unterstütze Abmaße | 3042 | |||
| M.2 Key IDs | B, M | |||
| SIM | PCIe / USB 2.0 Unterstützung | 3 St | ||
| Storage | mSATA | |||
| Audio | ||||
| Chipsatz | Realtek ALC887 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.0 | 4 St | ||
| Anzeige | DVI | DVI-D Signal | 1 St | |
| Displayport | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 4 St | |
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 4 St | |
| RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | ||
| Anzeige | LCD- / Inverterstrom | Ja | ||
| LVDS | Dual Channel | |||
| LVDS Anschlüsse | 1 St | |||
| Digital I/O | Bits | 16-Bit | 1 St | |
| SMBus | 1 St | |||
| CAN Bus | Version 2.0B (mit Isolation) | 2 St | ||
| Channel | 2 St | |||
| Protokoll | CAN 2.0B | |||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Amplifier | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | -, Infineon SLB 9665 XT 2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~48V | |||
| Anschluss | Hohlstecker | |||
| POE | Protokoll | -, IEEE 802.3af / 15.4W | ||
| Stromversorgung - Eingang | DC: 12~48V | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Unterstützte BS | Windows | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -10° bis 60°C, -40° bis 85°C | ||
| Lagerung | -20° bis 80°C, -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
| Lagerung | 10 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | EPIC | ||
| Breite | 115 mm | |||
| Tiefe | 165 mm | |||
| Gewicht | 420 g, 670 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
