Mainboards mit Sonderformat
// Sonderformat Industrie-Mainboards
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// LVDS
// 2 x G-LAN (Front page)
// 2 x USB (Front page)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply DC 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

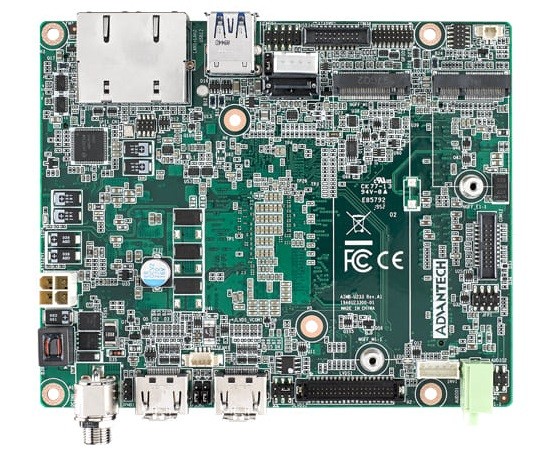

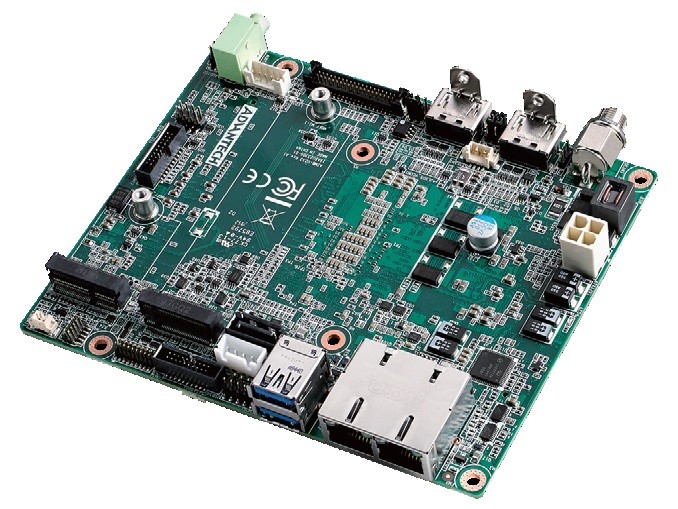

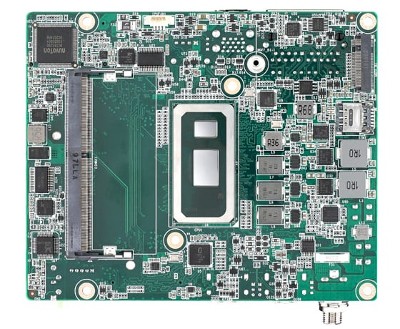

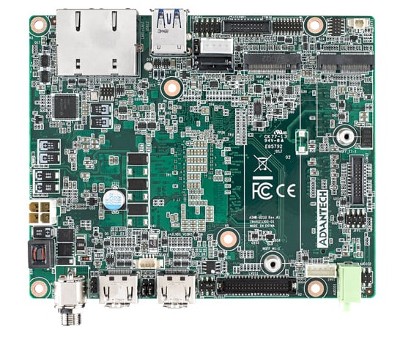

Basismodul: Advantech AIMB-U233
| Allgemein | ||||
| SKU / Artikelnummer | AIMB-U233 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Whiskey Lake | |||
| Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1528 | |||
| Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, - | |||
| Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM Datarate | 2400 MT/s | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
| Grafik | ||||
| Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
| Version | 1.4 | |||
| LVDS | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Bits | 48 Bit | |||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×2, WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE | |||
| Unterstütze Abmaße | 2242, 3042 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

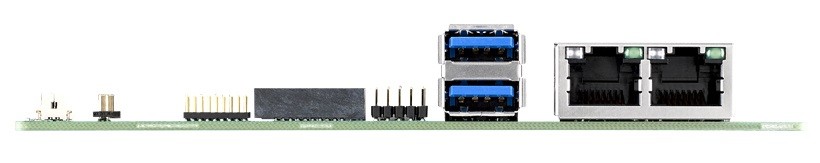

| Externe I/O (Frontseite) | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 2) | 2 St | ||

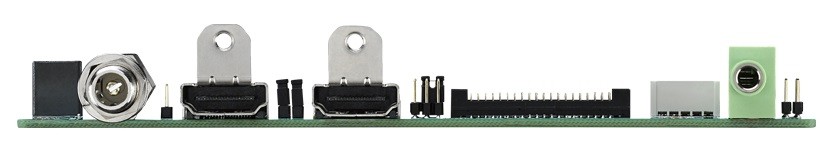

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 2 St | ||
| Audio | Line-Out | 1 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Seriell | RS-232 | Ports (Sonderanschluss) | 2 St | |
| RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | ||
| Anzeige | LVDS Anschlüsse | 1 St, - | ||
| eDP (embedded Display Port) Lanes | 1 St, - | |||
| Digital I/O | Bits | 16-Bit | 1 St | |
| Audio | Anschluss | 2.00 mm Pitch | ||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Raid Unterstützung | RAID 0/1/5 | wird unterstützt | ||
| Stromanschluss (onboard) | 1 St | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12V | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Abmaße | Formfaktor | Sonderformat | ||
| Breite | 112 mm | |||
| Tiefe | 137 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
