Mainboards mit Sonderformat
// Sonderformat Industrie-Mainboards
// [NXP i.MX 6DualLite | NXP i.MX 6Quad]
// [1 GB | 2 GB]
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 4 GB eMMC
// 1 x Mini-PCIe
// Power Supply DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

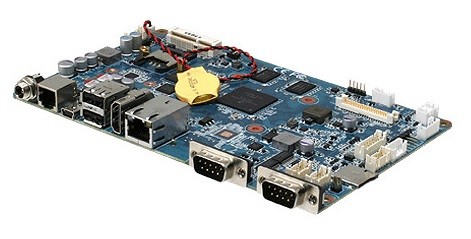

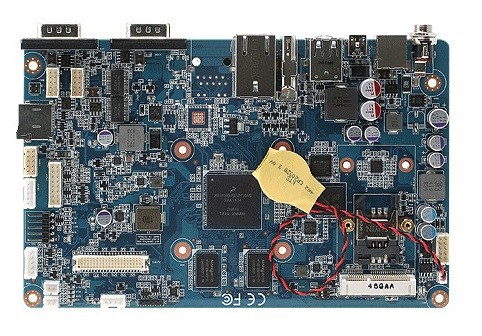

Basismodul: Avalue ACP-IMX6POS
Allgemein | ||||
SKU / Artikelnummer | ACP-IMX6POS | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-A9 | |||
Nummer | NXP i.MX 6DualLite, NXP i.MX 6Quad | |||
CPU Kerne | 2 St, 4 St | |||
Basis Frequenz | 1 GHz | |||
Speicher | Memory Type | DDR3 | ||
Maximaler Ausbau | 2 GB | |||
Speicher onBoard | 1 GB, 2 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | Micro-SD | |||
Audio | ||||
Chipsatz | Wolfson WM8962 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Micrel KSZ9031 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel 82574L (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
USB | USB v2.0 | 2 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
Interne I/O | ||||
Anzeige | LCD- / Inverterstrom | Ja | ||
LVDS | Dual Channel | |||
LVDS Anschlüsse | 1 St | |||
VGA (2.54 mm Pitch) | 1 St | |||
Audio | Amplifier | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12~24V | |
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 12.04, Yocto 1.8 | ||
Kernel | 4.4 | |||
Unterstützte BS | Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Sonderformat | ||
Breite | 175 mm | |||
Tiefe | 110 mm | |||
Gewicht | 160 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Wi-Fi | 1 St | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
