Mainboards mit Sonderformat
// Sonderformat Industrie-Mainboards
// NXP i.MX 6Quad
// 2 GB
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 3 x USB (internal)
// 2 x Seriell I/O
// 4 GB eMMC
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Power Supply DC Wide range 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

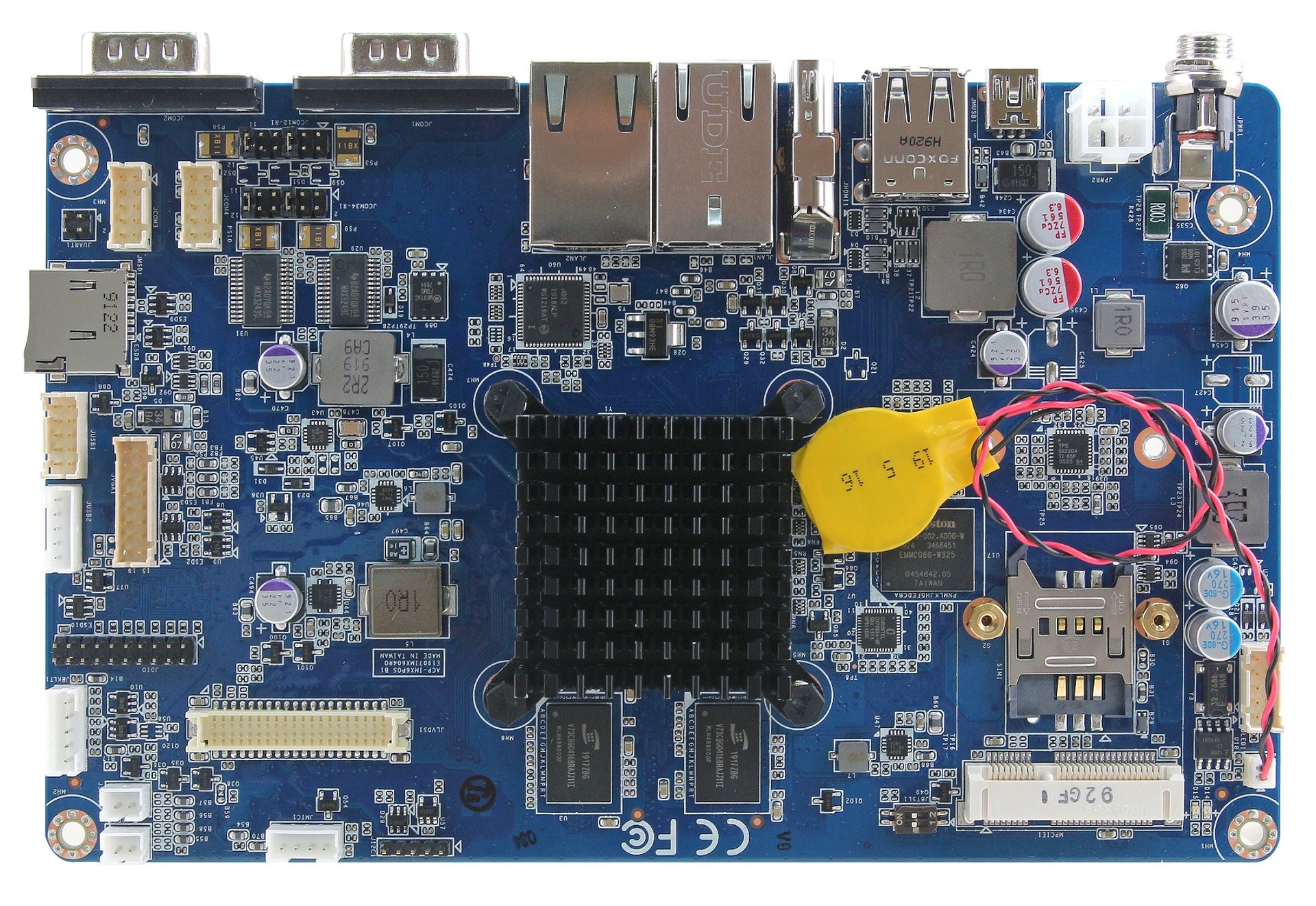

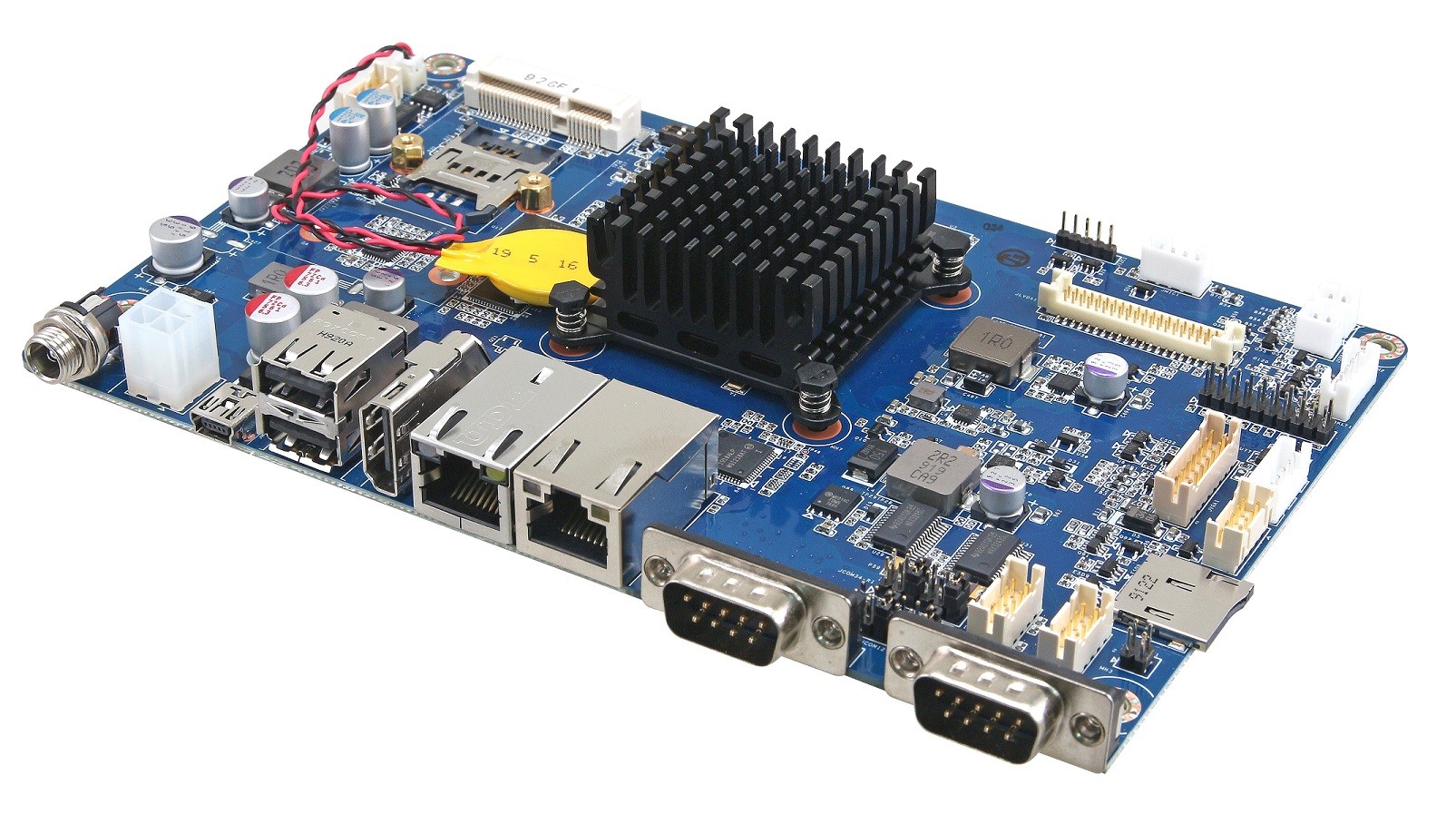

Basismodul: Avalue ACP-IMX6POS-B1R
Allgemein | ||||
SKU / Artikelnummer | ACP-IMX6POS-B1R | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-A9 | |||
Nummer | NXP i.MX 6Quad | |||
CPU Kerne | 4 St | |||
Basis Frequenz | 1 GHz | |||
Speicher | Speicher onBoard | 2 GB | ||
Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 4 GB | |||
Grafik | ||||
Bildschirme (Multidisplay) | 2 Displays | |||
LVDS | Bits | 24 Bit | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | Micro-SD | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Micrel KSZ9031 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
USB | USB v2.0 | 2 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 3 St | |
Seriell | RS-232 | Ports (2.00 mm Pitch) | 2 St | |
Anzeige | LVDS | Dual Channel | ||
LVDS Anschlüsse | 1 St | |||
VGA (proprietärer Anschluss) | 1 St | |||
Digital I/O | Bits | 16-Bit | 1 St | |
I²C | 1 St | |||
Audio | Mic-In | 1 St | ||
Amplifier | 2 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | Hohlstecker (verschraubt) | |||
DC | Weitbereich | Ja | ||
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (horizontal) | |||
Stromversorgung - Eingang | DC: 12~24V,12~24V | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Yocto 2.5 | ||
Unterstützte BS | Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 85°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Sonderformat | ||
Breite | 175 mm | |||
Tiefe | 110 mm | |||
Gewicht | 160 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
