Mainboards mit Sonderformat
// Industrie-Mainboards
// NXP i.MX 8M Quad
// SoC (System-On-Chip)
// 2 GB
// 2 x G-LAN (Back side)
// 1 x USB (Back side)
// 16 GB eMMC
// Power Supply DC 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

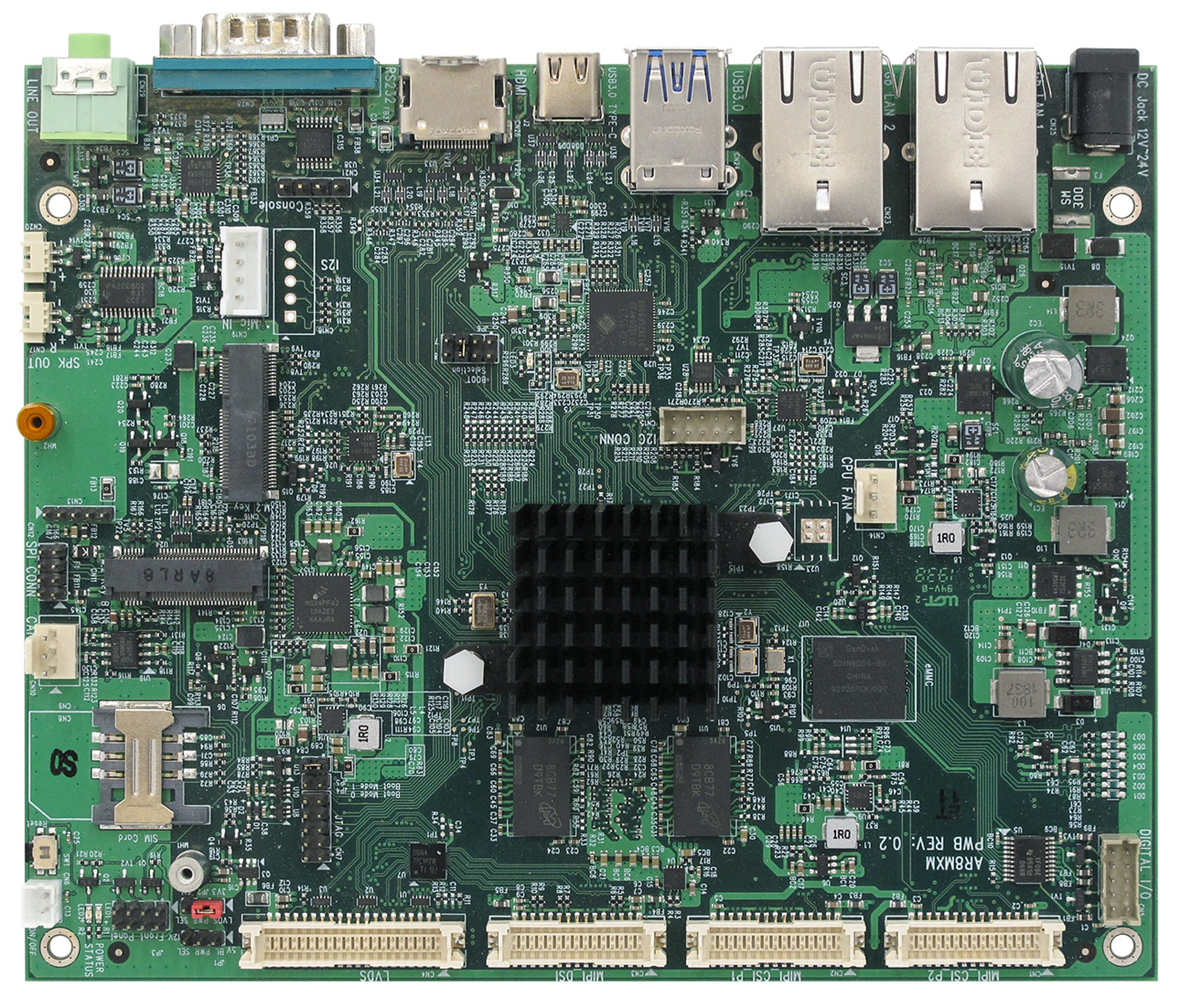

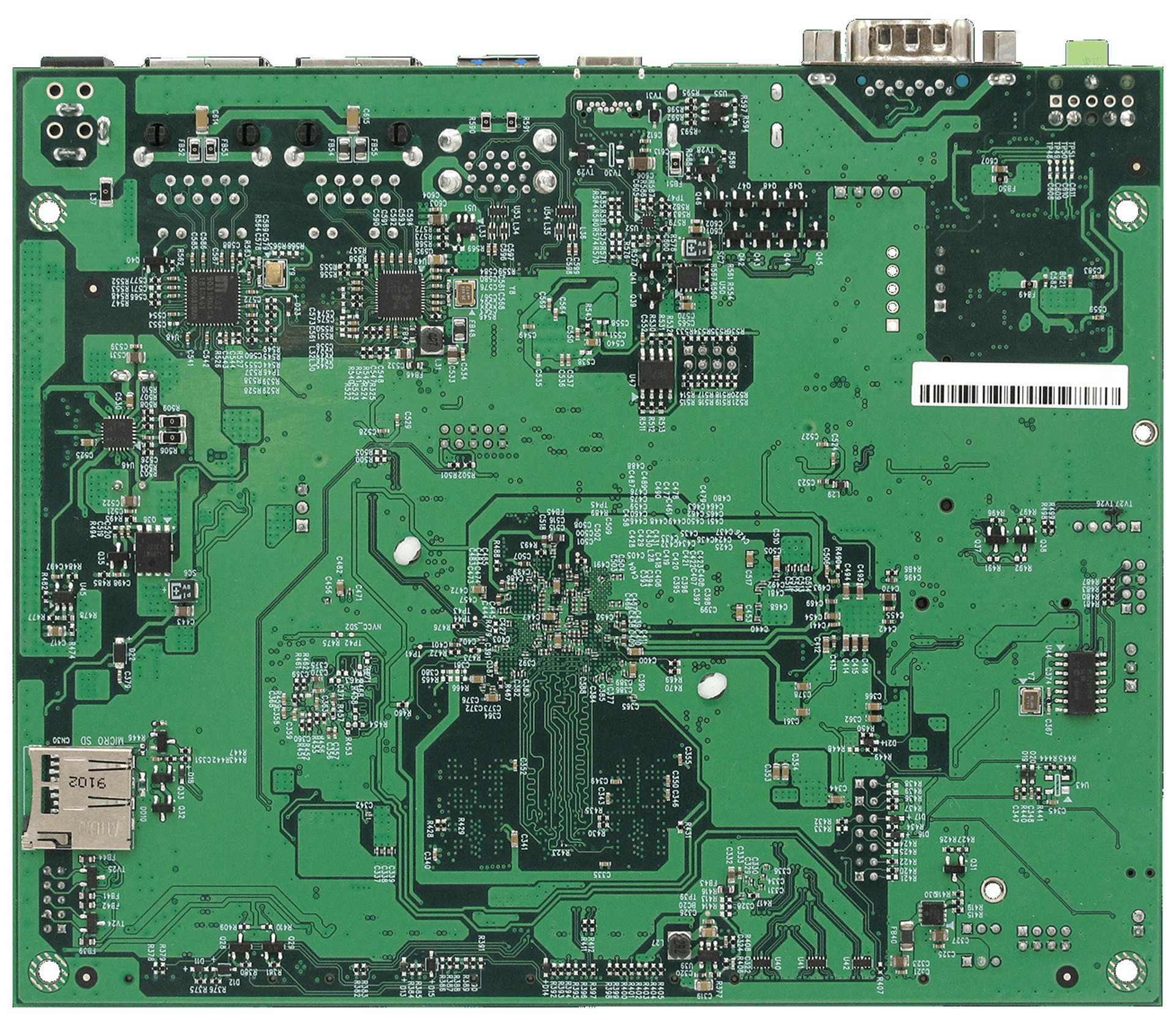

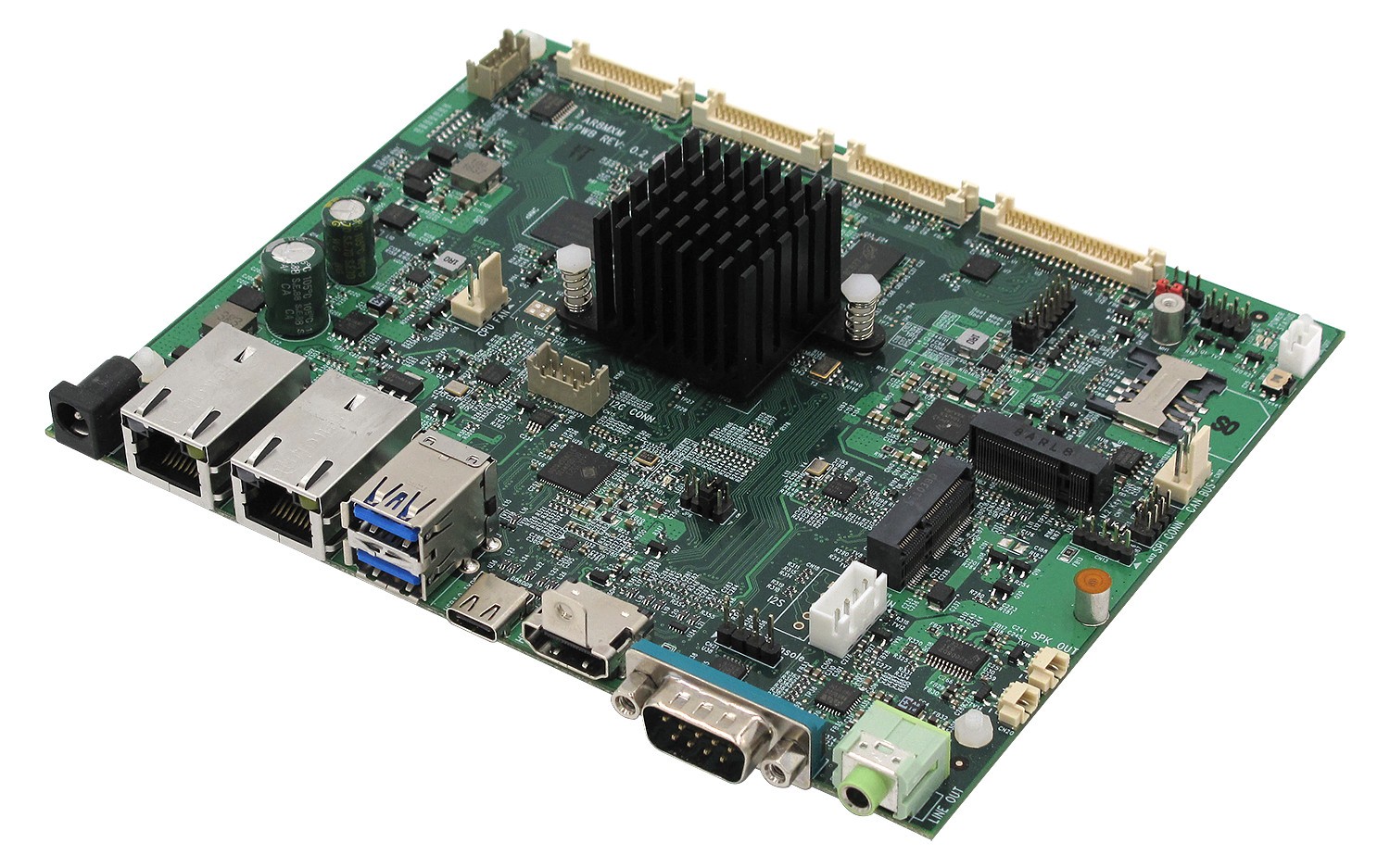

Basismodul: BCM AR8MXMQ
Allgemein | ||||
SKU / Artikelnummer | AR8MXMQ | |||
Produktgrunddaten | ||||
Hersteller | BCM | |||
System | ||||
Prozessor | Serie | ARM Cortex-M4 | ||
Nummer | NXP i.MX 8M Quad | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 2 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 16 GB | |||
Grafik | ||||
Prozessor | Vivante GC7000 Lite | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Unterstütze Abmaße | 3042 | |||
M.2 Key IDs | B, E | |||
SIM | PCIe / USB 2.0 Unterstützung | 1 St | ||
Storage | Micro-SD | |||
Audio | ||||
Chipsatz | Wolfson WM8960 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Micrel KSZ9031 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8119G (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

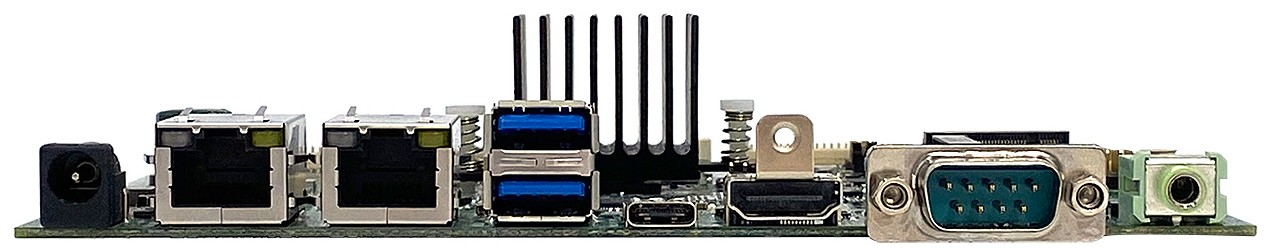

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USBOTG (USB On-The-Go) | 1 St | ||
Interne I/O | ||||
Anzeige | LVDS Anschlüsse | 1 St | ||
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 1 St | |||
Image Capture Interfaces | MIPI-DSI (Display Serial Interface) | 1 St | ||
CAN Bus | Version 2.0B (Interface) | 1 St | ||
Audio | Mic-In | 1 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12~24V | |
Anschluss | Hohlstecker | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Breite | 130 mm | ||
Tiefe | 160 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
