Mainboards mit Sonderformat
Produkt ist EOL (End Of Life)!
// Industrie-Mainboards
// Intel Core i3-7100U
// 260 Pin SO-DIMM DDR4
// 1 x G-LAN (Back side)
// 2 x USB (Front page)
// 2 x USB (Back side)
// 3 x USB (internal)
// 1 x Seriell I/O
// Power Supply ATX
// DC Wide range 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

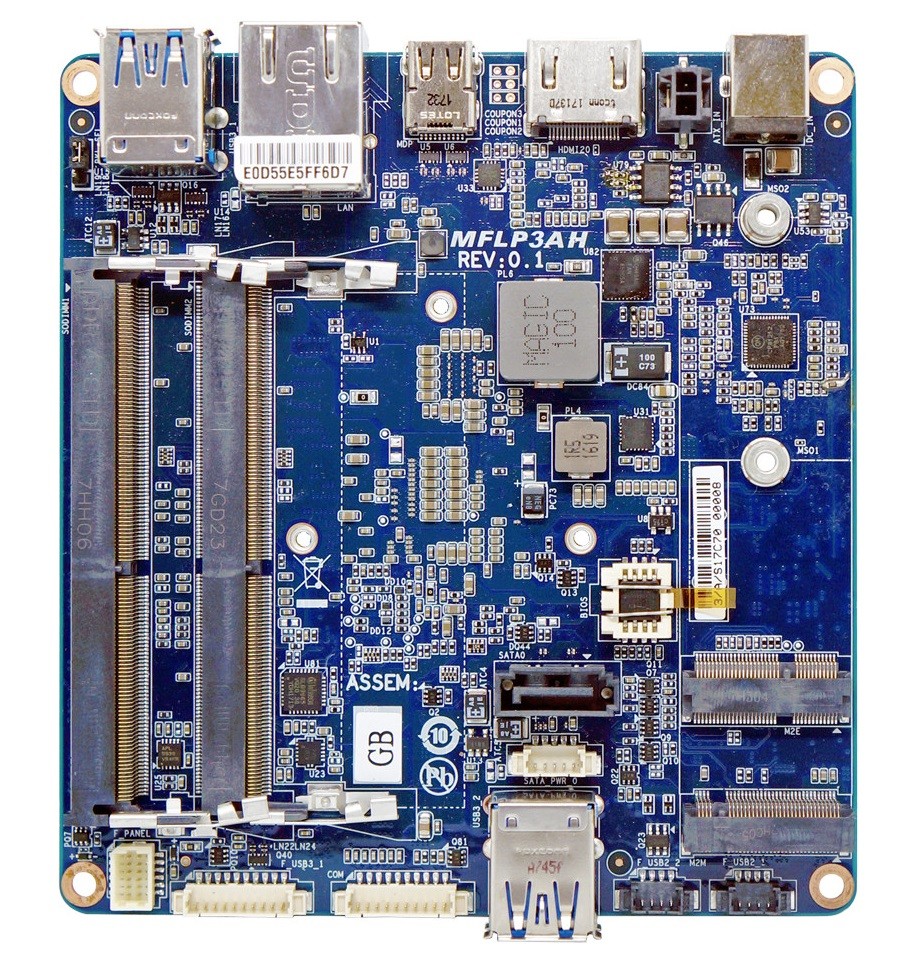

Basismodul: GIGAIPC QBi-7100B
Allgemein | ||||
SKU / Artikelnummer | QBi-7100B | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Kaby Lake | |||
Nummer | Intel Core i3-7100U | |||
CPU Kerne | 2 St | |||
Threads | 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2,4 GHz | |||
Cache | 3 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 14 nm | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Datarate | 2133 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics 620 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
eDP (embedded Display Port) | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Intel Integrated Audio | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O (Frontseite) | ||||
USB | USB v3.0 | 2 St | ||

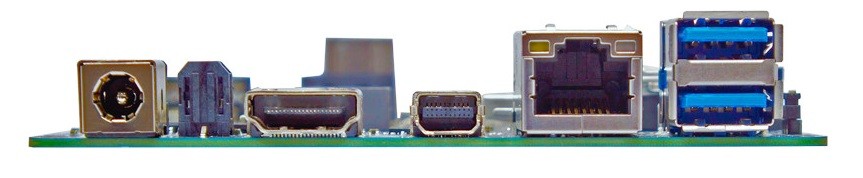

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Mini DP | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.0 | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (1.27 mm Pitch) | 2 St | |
USB v3.0 | Interface | 1 St | ||
Seriell | RS-232 | Ports (Sonderanschluss) | 1 St | |
Anzeige | eDP (embedded Display Port) Lanes | 1 St | ||
LPC | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2-Pin ATX | |
DC | Weitbereich | Ja | ||
Bereich | 12~24V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | ATX: 2-Pin ATX, DC: 12~24V | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Unterstützte BS | Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Lagerung | 0 bis 95%, nicht kondensierend | |||
Abmaße | Breite | 105 mm | ||
Tiefe | 110 mm | |||
Bedienelemente | Power | 1 St | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
