Mainboards mit Sonderformat
// Industrie-Mainboards
// [Intel Core i3-8145UE | Intel Core i5-8265U | Intel Core i5-8365UE | Intel Core i7-8565U | Intel Core i7-8665UE]
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 2 x G-LAN (Back side)
// 2 x USB (Front page)
// 2 x USB (Back side)
// 2 x USB (internal)
// Power Supply ATX
// DC 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

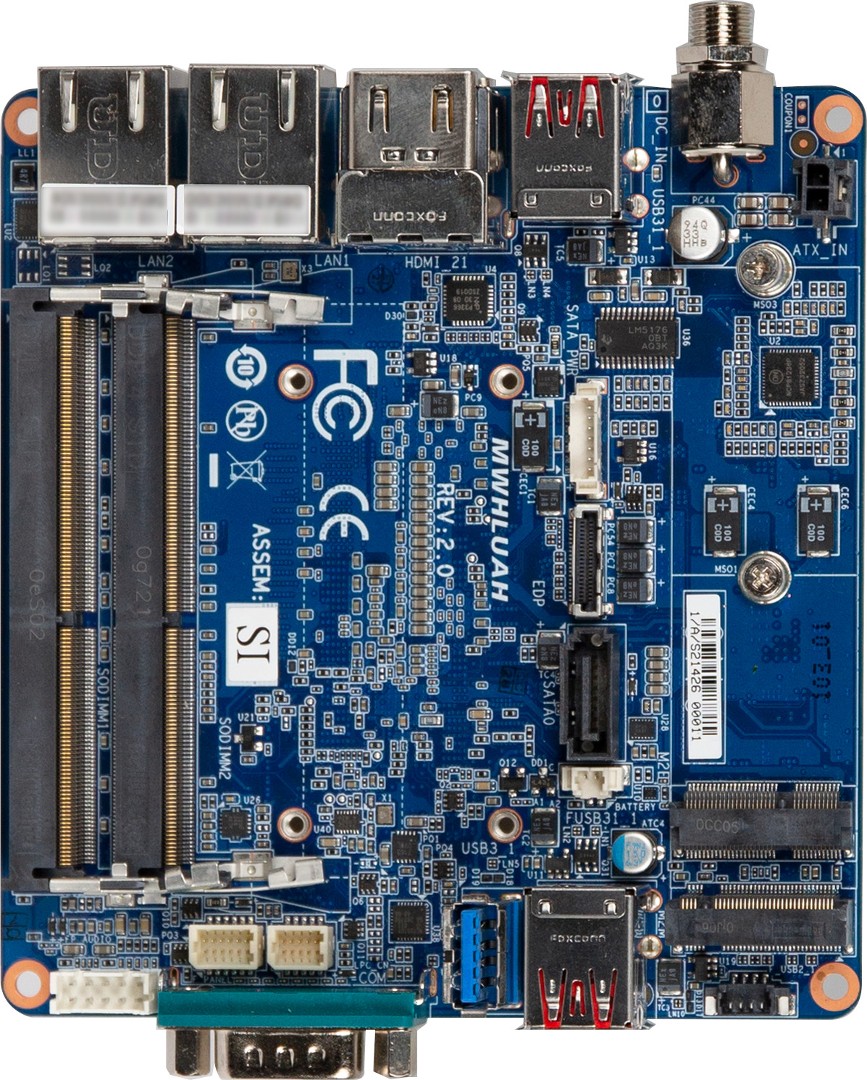

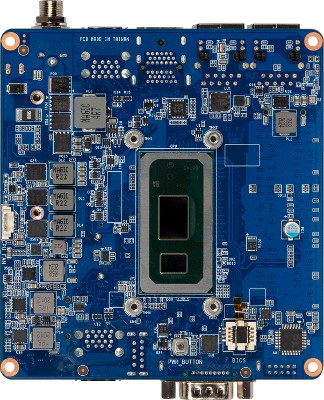

Basismodul: GIGAIPC QBi-8
| Allgemein | ||||
| SKU / Artikelnummer | QBi-8 | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| Produkt-ID | 9MWHLUAHMR-SI, 9MWHLUBHMR-SI, 9MWHLUCHMR-SI, 9MWHLUDHMR-SI, 9MWHLUEHMR-SI | |||
| System | ||||
| Prozessor | Serie | Intel Whiskey Lake | ||
| Nummer | Intel Core i3-8145UE, Intel Core i5-8265U, Intel Core i5-8365UE, Intel Core i7-8565U, Intel Core i7-8665UE | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 4 St, 8 St | |||
| Sockel | BGA 1528 | |||
| Basis Frequenz | 1,6 GHz, 1,7 GHz, 1,8 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz, 4,6 GHz | |||
| Cache | 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithographie | 14 nm | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 2400 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics 620 | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2304 bei 24 Hz | ||
| Version | 1.4 | |||
| eDP (embedded Display Port) | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Erweiterung | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8111HS (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

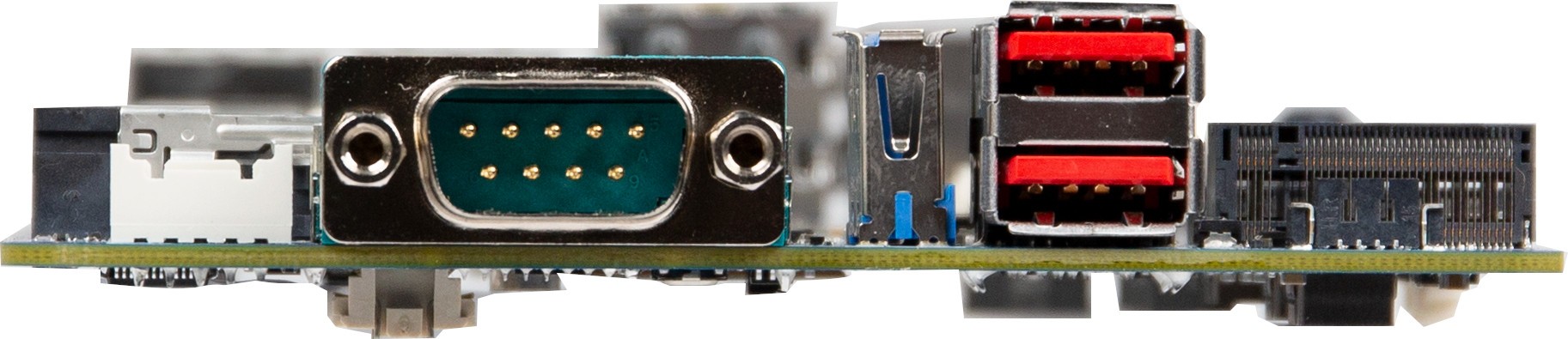

| Externe I/O (Frontseite) | ||||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v3.2 (Gen 1) | 2 St | ||

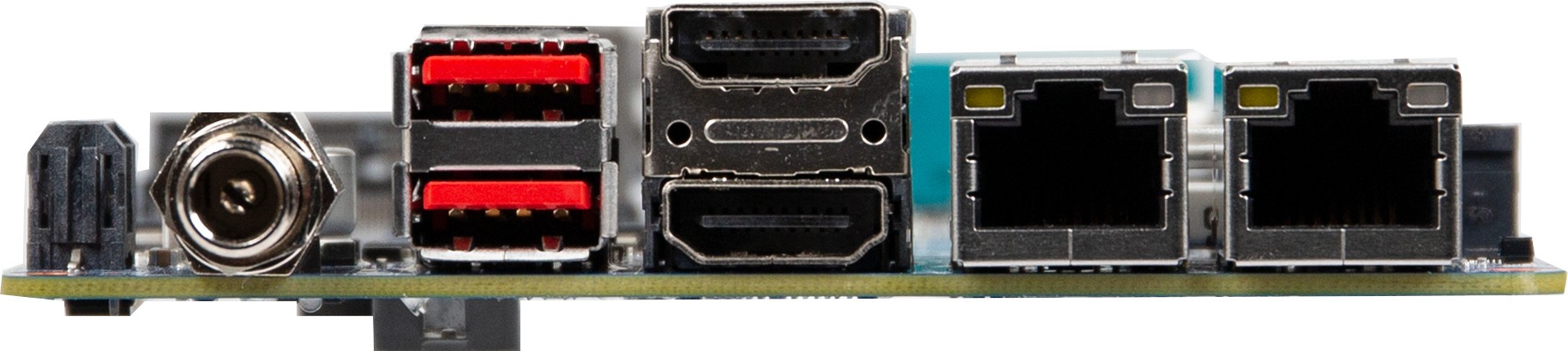

| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 2 St | ||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 1) | 2 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Interface | 1 St | |
| USB v3.2 | Ports (Typ-A-Buchse) | 1 St | ||
| Audio | Line-Out | 1 St | ||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
| Stromanschluss (onboard) | 1 St | |||
| RAID Unterstützung | RAID 0/1 | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2-Pin ATX | |
| DC | Weitbereich | Ja | ||
| Bereich | 9~36V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | ATX: 2-Pin ATX, DC: 9~36V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Unterstützte BS | Windows | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
| Lagerung | 0 bis 95%, nicht kondensierend | |||
| Abmaße | Breite | 105 mm | ||
| Tiefe | 110 mm | |||
| Bedienelemente | Power | 1 St | ||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
