ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 6096 (SP5)
// 288 Pin DIMM DDR5
// 3 x G-LAN (Rückseite)
// 4 x USB (Rückseite)
// 2 x USB (intern)
// Digital I/O (8-Bit)
// 2 x PCIe x8
// 5 x PCIe x16
// Stromversorgung ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

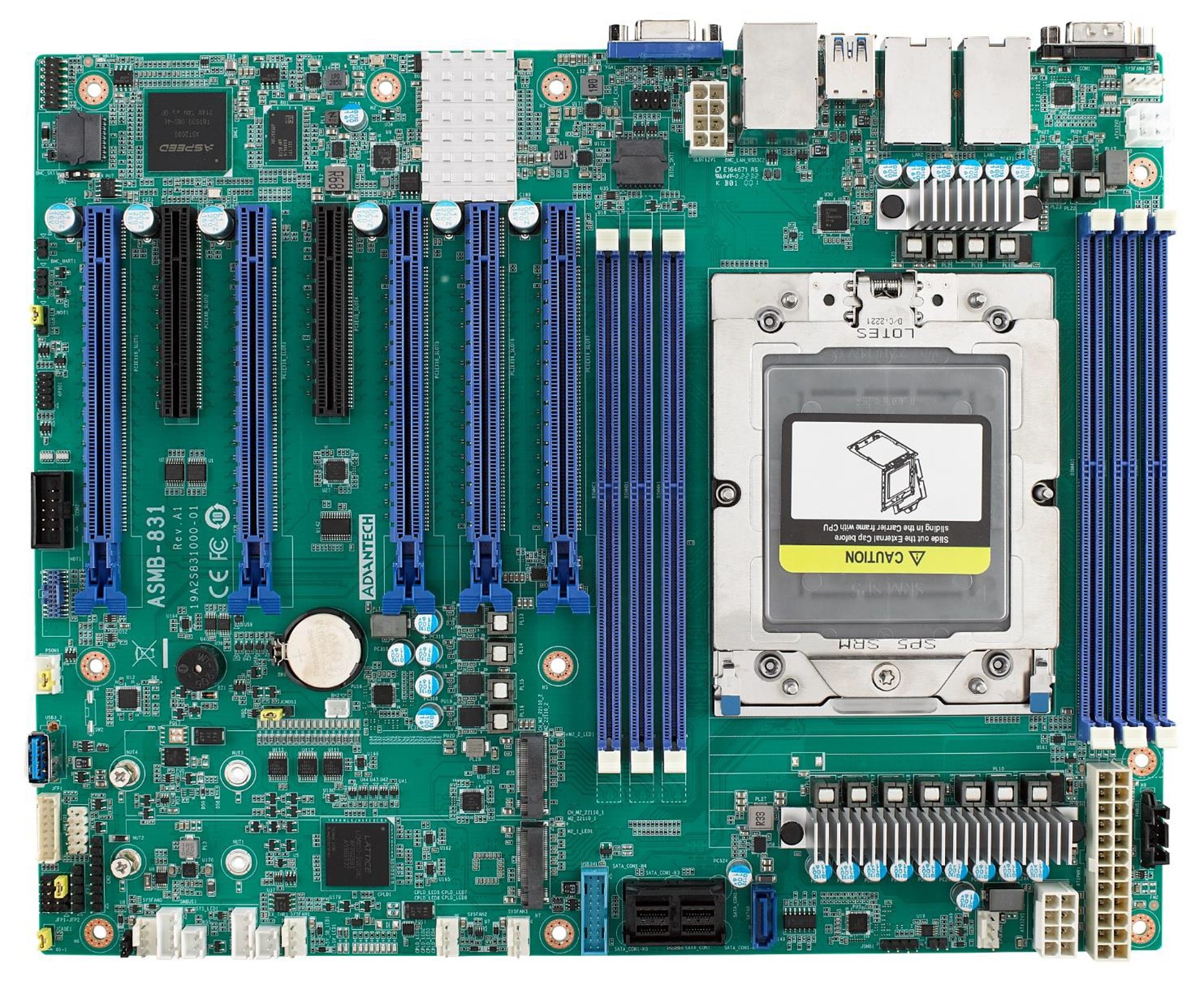

Basismodul: Advantech ASMB-831
Allgemein | ||||
SKU / Artikelnummer | ASMB-831 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | ASMB-831T2-00A1 | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | AMD EYPC 9004 Serie | |||
Sockel | LGA 6096 (SP5) | |||
Thermal Design Power (TDP) | 300 W | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 6 St | |||
Maximaler Ausbau | 384 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI SPI 256 Mbit | |||
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Erweiterung | ||||
PCIe x8 | Generation | 5 | ||
x8 Signal | 2 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 5 St | |||
PCIe Schnittstellen | 2x PCIe x8, 5x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 4), SATA III | |||
Unterstütze Abmaße | 2280, 22110 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280, 22110 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel X710-AT2 (10 Gbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8211FSI (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

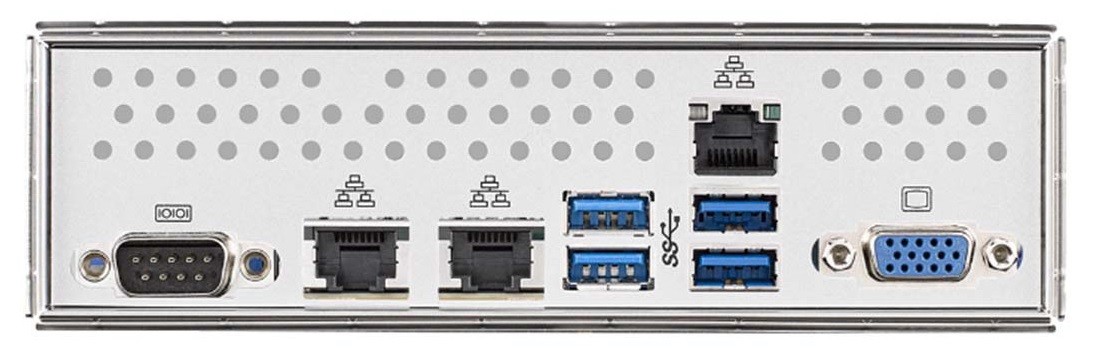

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit OOB | 1 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
Interne I/O | ||||
USB | USB v3.2 | Ports (Typ-A-Buchse) | 1 St | |
Key-A Header (20-Pin) | 1 St | |||
Generation | Gen. 1 | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Serial Attached SCSI (SAS) | SAS | 2 St | ||
SAS Anschlussstecker | Typ SFF-8643 | |||
SAS Anschlüsse / Ports | 2 x Mini-SAS (2 x 4 Ports) | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9670 TT 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | ATX | ||
Breite | 304 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
