ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 4710
// 288 Pin DIMM DDR5
// [2 | 4] x G-LAN (Back side)
// 2 x USB (Back side)
// 3 x USB (internal)
// 1 x Seriell I/O
// 4 x PCIe x16
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

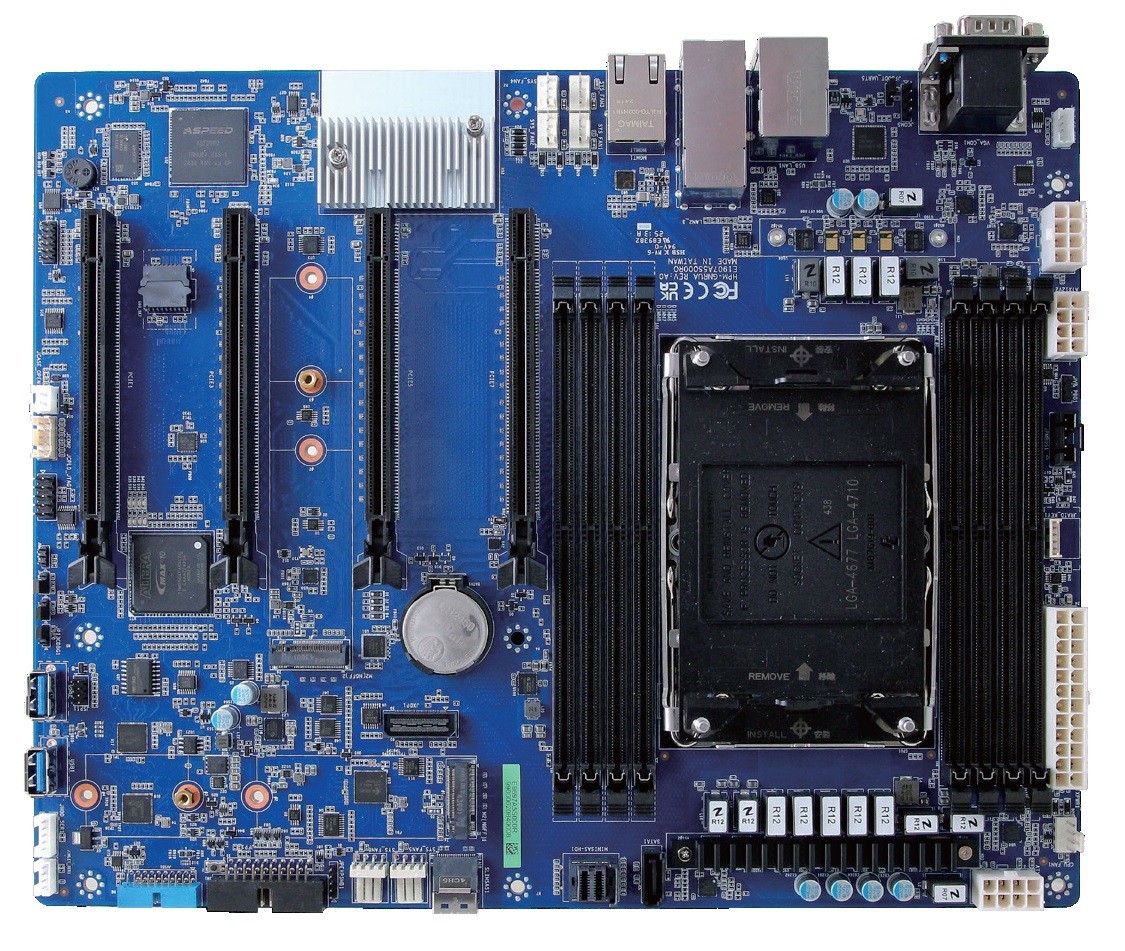

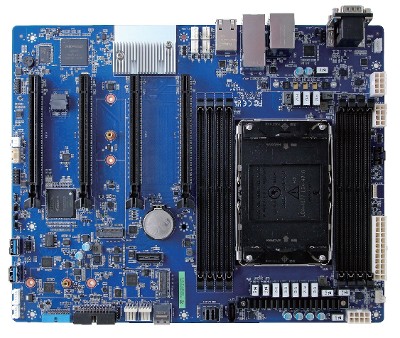

Basismodul: Avalue HPM-GNRUA
| Allgemein | ||||
| SKU / Artikelnummer | HPM-GNRUA | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Sockel | LGA 4710 | |||
| Thermal Design Power (TDP) | 350 W | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| Frequenz | 6400 MHz | |||
| Steckplätze | 8 St | |||
| Maximaler Ausbau | 2048 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI UEFI BIOS | |||
| IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 4 St | |||
| PCIe Schnittstellen | 4x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2260, 2280, 22110 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2260, 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | -, Intel E610-XAT2 (2 x 10GbE) | ||
| Anzahl | 1 St, - | |||
| Controller | Chipsatz | Realtek RTL8211F (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

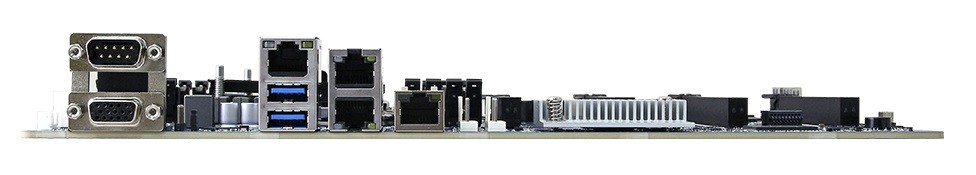

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| Ethernet | RJ-45 | 1 St, 3 St | ||
| RJ-45 mit OOB | 1 St | |||
| Seriell | RS-232 | DB-9 | 1 St | |
| USB | USB v3.2 (Gen 1) | 2 St | ||
| Interne I/O | ||||
| USB | USB v3.2 | Ports (Typ-A-Buchse) | 2 St | |
| Key-A Header (20-Pin) | 1 St | |||
| Generation | Gen. 1 | |||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Serial Attached SCSI (SAS) | SAS | 1 St | ||
| SAS Anschlüsse / Ports | SlimSAS | |||
| Mini Cool Edge IO (MCIO) | 4i | 1 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Betriebssysteme / Software | ||||
| Windows | Windows Server 2025 | wird unterstützt | ||
| Windows Embedded | Windows 11 IoT | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 55°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | ATX | ||
| Breite | 304,8 mm | |||
| Tiefe | 243,84 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
