ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 4844 (SP6)
// 288 Pin DIMM DDR5
// [2 | 4] x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// 4 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

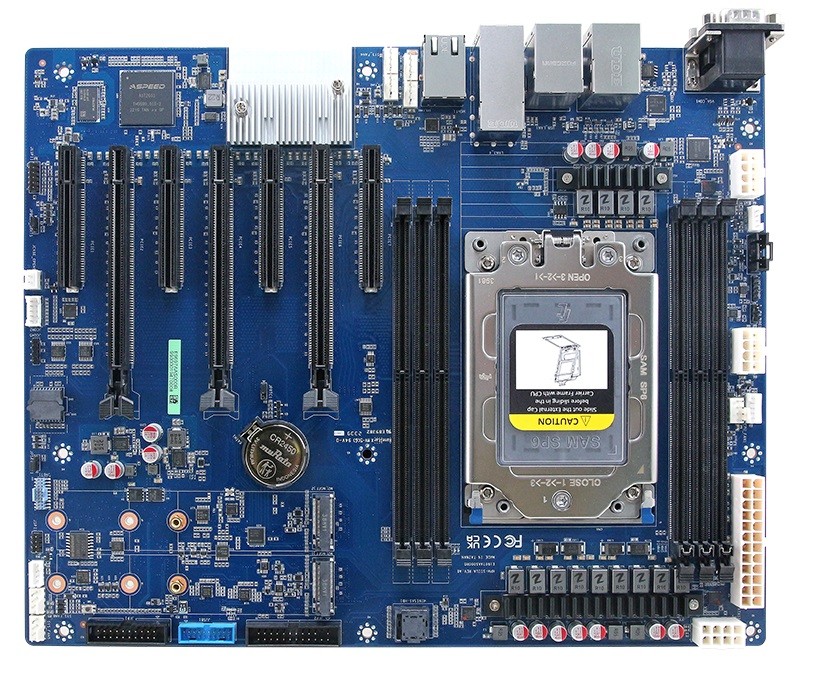

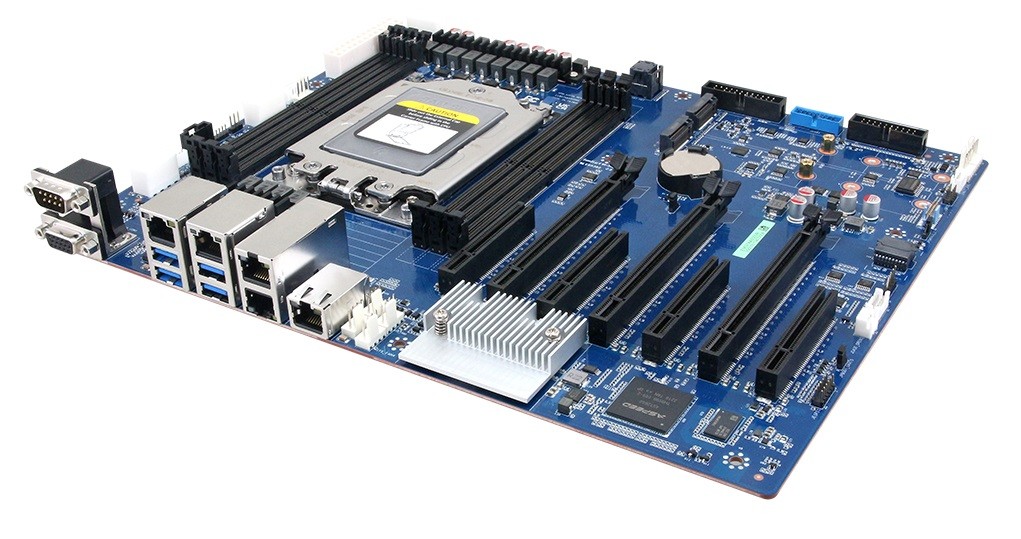

Basismodul: Avalue HPM-SIEUA
Allgemein | ||||
SKU / Artikelnummer | HPM-SIEUA | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | AMD EYPC 8004 Serie | |||
Sockel | LGA 4844 (SP6) | |||
Thermal Design Power (TDP) | 225 W | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 6 St | |||
Maximaler Ausbau | 1536 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI UEFI 128 Mbit SPI | |||
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 5 | ||
x8 Signal | 4 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 3 St | |||
PCIe Schnittstellen | 3x PCIe x16, 4x PCIe x8 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 5), SATA III | |||
Unterstütze Abmaße | 2260, 2280, 22110 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 5), SATA III | |||
Unterstütze Abmaße | 2260, 2280, 22110 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | -, Intel X550-AT2 (10 Gbps) | ||
Anzahl | 1 St, - | |||
Netzwerk | 2x G-LAN | |||

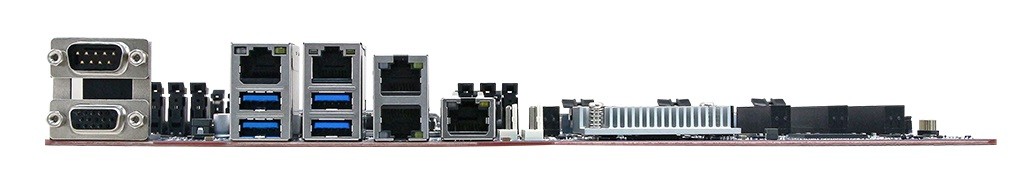

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St, 4 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.2 | Key-A Header (20-Pin) | 2 St | |
Generation | Gen. 2 | |||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
Serial-ATA | Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | |
Serial Attached SCSI (SAS) | SAS | 1 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2450 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2019 | wird unterstützt | ||
Windows Server 2022 | wird unterstützt | |||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 55°C, 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | ATX | ||
Breite | 304,8 mm | |||
Tiefe | 243,84 mm | |||
Gewicht | 970 g | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | EN 55022, EN 55024, EN 62368-1, LVD, REACH | |||
RoHS konform | Ja |
