ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 3647 (P3)
// Intel C621
// 288 Pin Registered DIMM DDR4 mit ECC
// [1 | -] x VGA
// 2 x G-LAN
// 6 x USB
// 5 x USB (internal)
// 1 x Seriell I/O
// 3 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

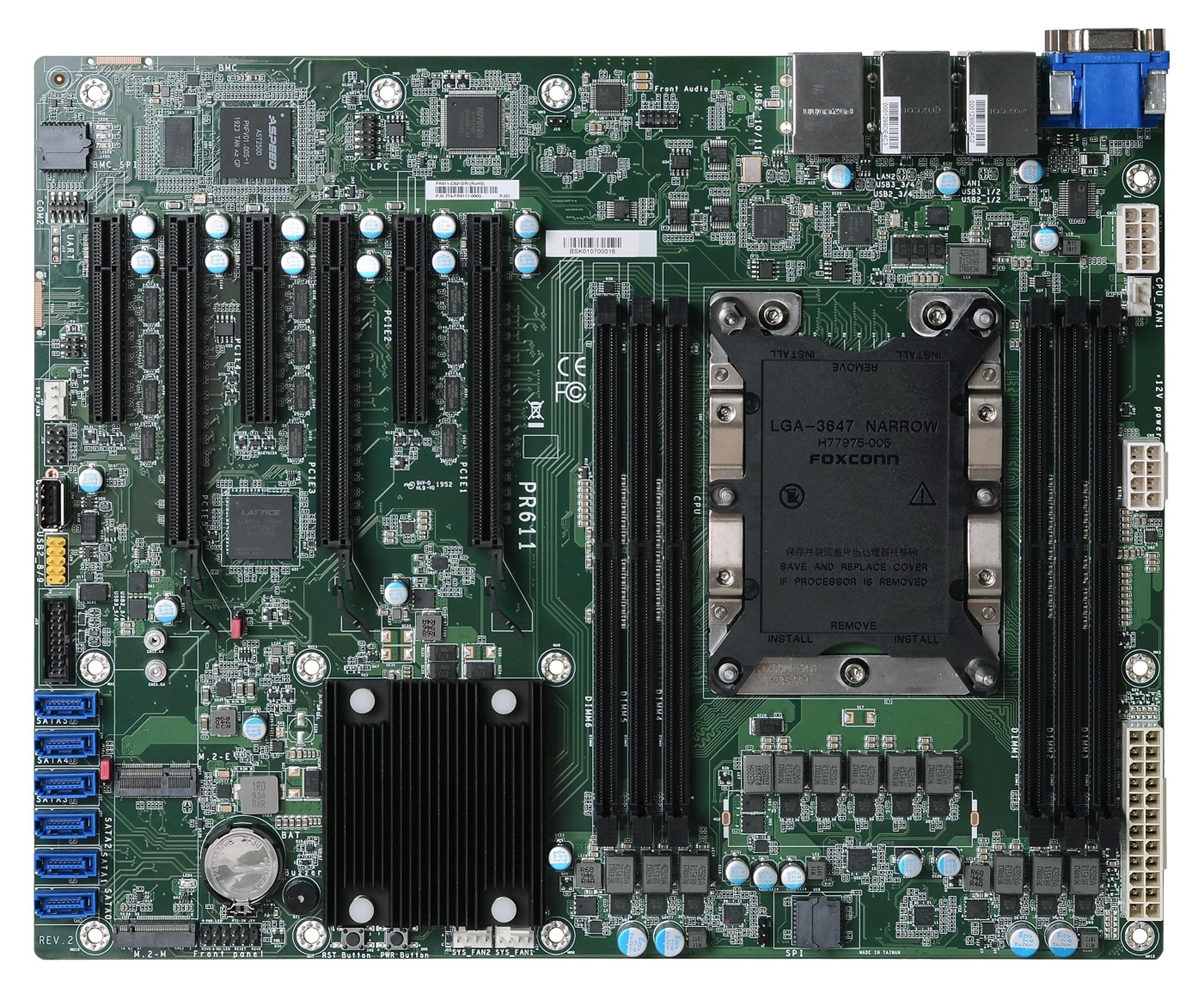

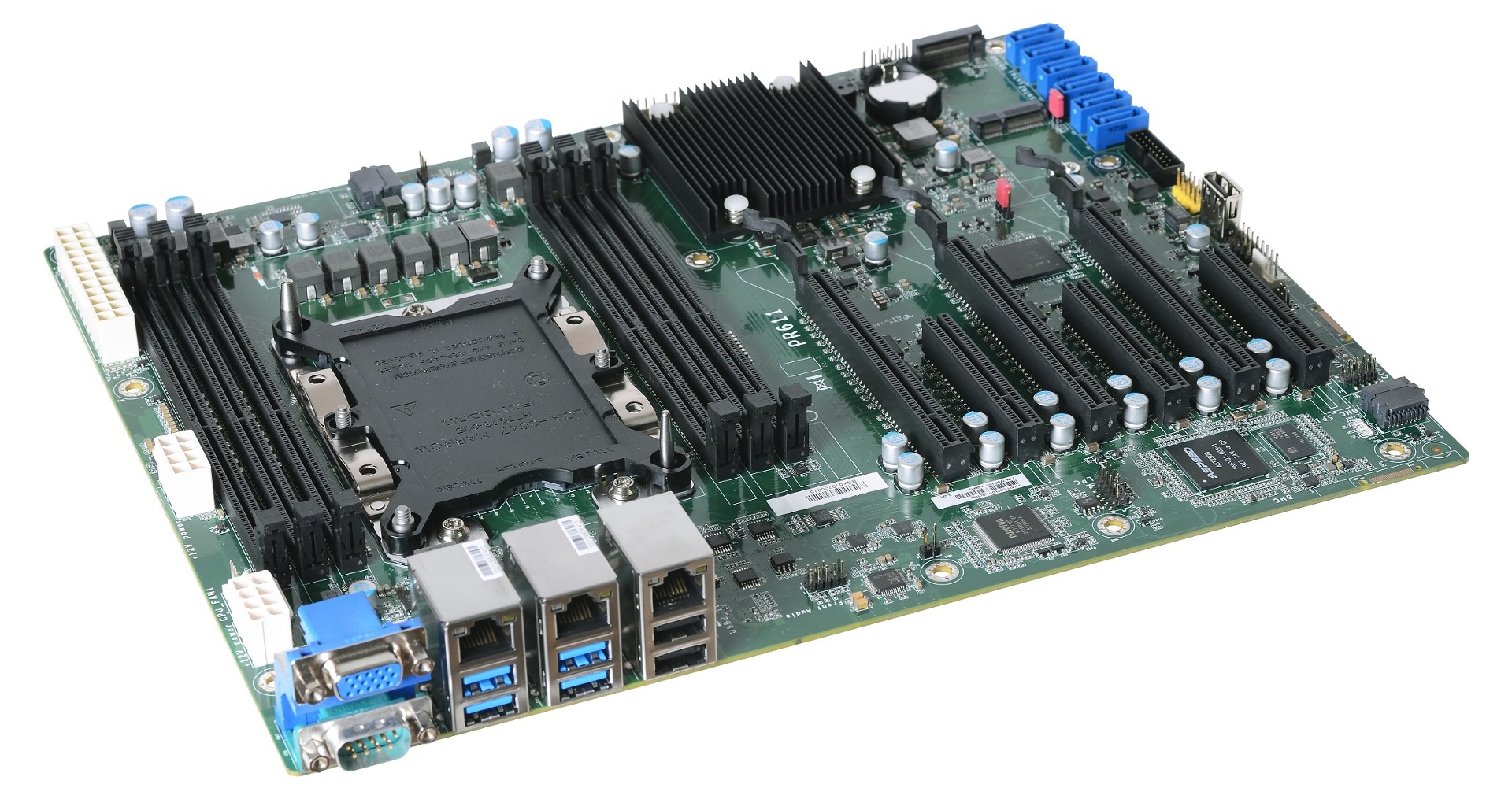

Basismodul: DFI PR611-C621
| Allgemein | ||||
| SKU / Artikelnummer | PR611-C621 | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 770-PR6111-000G, 770-PR6111-100G, 770-PR6111-200G, 770-PR6111-400G, - | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Sockel | LGA 3647 (P3) | |||
| Chipsatz | Intel C621 | |||
| Speicher | Aufbau | 288 Pin Registered DIMM DDR4 mit ECC | ||
| Memory Type | DDR4 | |||
| DIMM Type | Registered DIMM | |||
| Frequenz | 2933 MHz | |||
| Steckplätze | 6 St | |||
| Maximaler Ausbau | 384 GB | |||
| ECC | wird unterstützt | |||
| BIOS | Insyde SPI 128 Mbit | |||
| IPMI | IPMI-Controller | -, Realtek RTL8211F | ||
| Grafik | ||||
| Prozessor | Aspeed AST2500 BMC | |||
| Erweiterung | ||||
| PCIe x8 | Generation | 3 | ||
| x8 Signal | 3 St | |||
| PCIe x16 | x16 Signal | Generation | 3 | |
| Anzahl | 3 St | |||
| PCIe Schnittstellen | 3x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×2 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC887 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

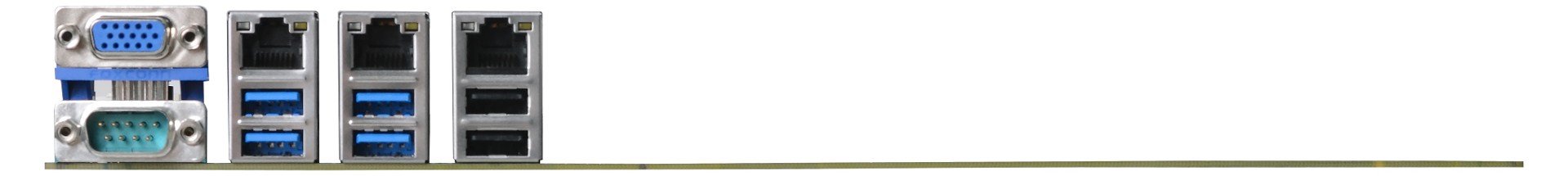

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 2 St | ||
| USB v3.1 Gen. 1 | 4 St | |||
| Seriell | RS-232 | DB-9 | 1 St | |
| Anzeige | VGA | 1 St, - | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| USB v3.1 | Ports (2.00 mm Pitch) | 2 St | ||
| SMBus | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | -, v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Betriebssysteme / Software | ||||
| Windows | Windows Server 2012 | wird unterstützt | ||
| Windows Server 2016 | wird unterstützt | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Linux | Distribution | Ubuntu 16.04 | ||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -5° bis 65°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Lagerung | 5 bis 90%, nicht kondensierend | |||
| Abmaße | Formfaktor | ATX | ||
| Breite | 244 mm | |||
| Tiefe | 305 mm | |||
| Lebenszyklus | ||||
| Produktionsstart | Q3/2017 | |||
| Voraussichtlich bis | Q4/2031 | |||
| Herstellergarantie | ||||
| Herstellergarantie | 2 Jahre | |||
