ATX Server Mainboards
// ATX Industrie-Mainboards
// [Intel Xeon D-2123IT | Intel Xeon D-2143IT]
// SoC (System-On-Chip)
// 288 Pin DIMM DDR4
// 2 x G-LAN (Rückseite)
// 2 x USB (Rückseite)
// 2 x USB (intern)
// 1 x Seriell I/O
// 2 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

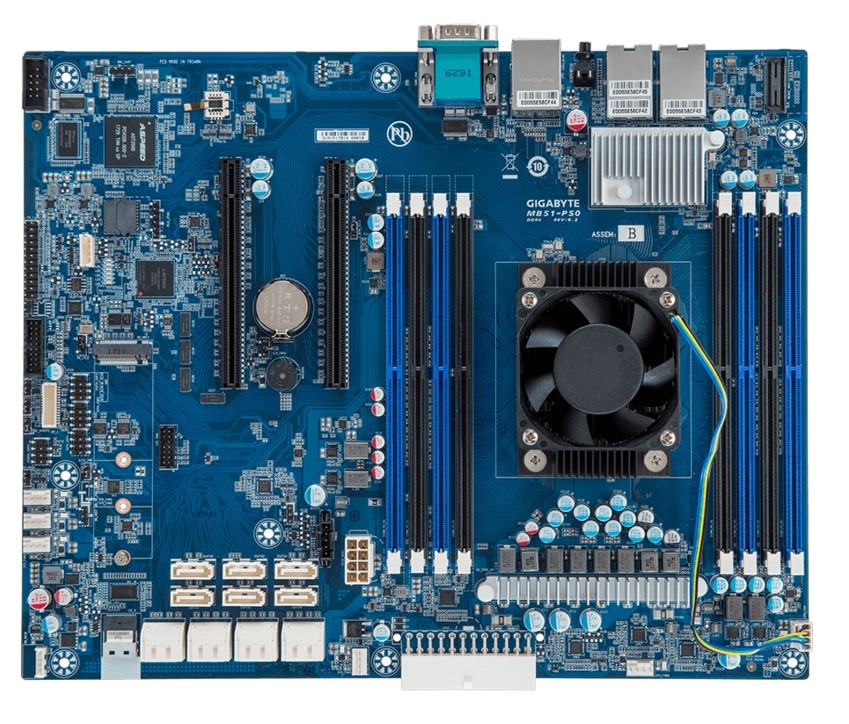

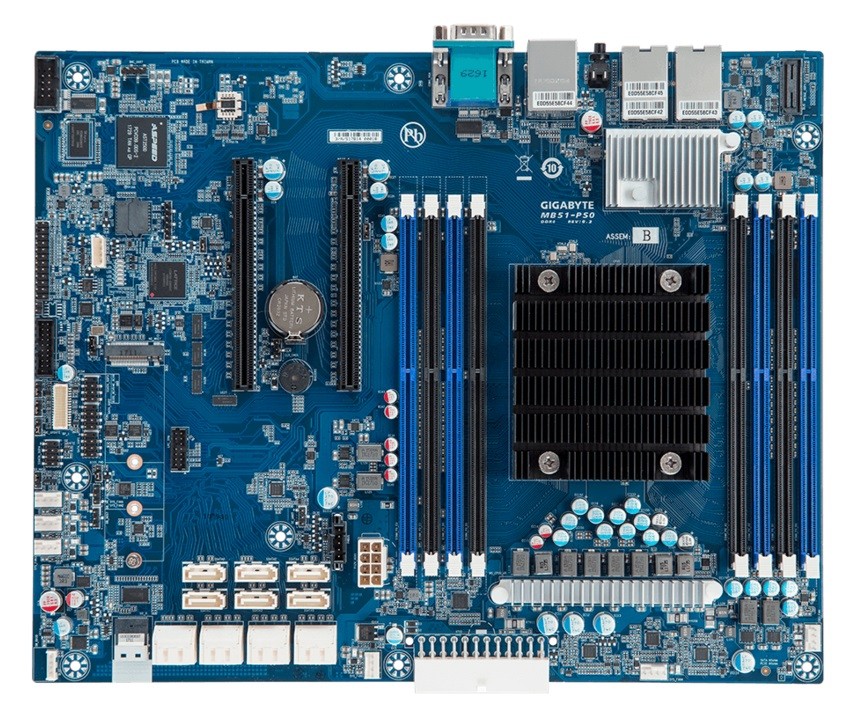

Basismodul: GIGAIPC MB51-PS0
Allgemein | ||||
SKU / Artikelnummer | MB51-PS0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MB51PS0NR-00, 9MB51PS1NR-00 | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Skylake | |||
Nummer | Intel Xeon D-2123IT, Intel Xeon D-2143IT | |||
CPU Kerne | 4 St, 8 St | |||
Threads | 8 St, 16 St | |||
Sockel | BGA 2518 | |||
Basis Frequenz | 2,2 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz | |||
Cache | 8 MB, 11 MB | |||
Thermal Design Power (TDP) | 60 W, 65 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 2400 MHz | |||
Steckplätze | 8 St | |||
Maximaler Ausbau | 512 GB | |||
ECC | wird unterstützt | |||
IPMI | IPMI-Controller | Aspeed AST2500 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2500 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x8 Signal | Generation | 3 | |
Anzahl | 1 St | |||
x16 Signal | Generation | 3 | ||
Anzahl | 1 St | |||
PCIe Schnittstellen | 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | M | |||
U.2 | Slot 1 | Anschluss | SlimSAS | |
Generation | 3 | |||
Signal | PCIe x4 | |||
Storage | M.2, U.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel X557-AT2 (10 Gbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

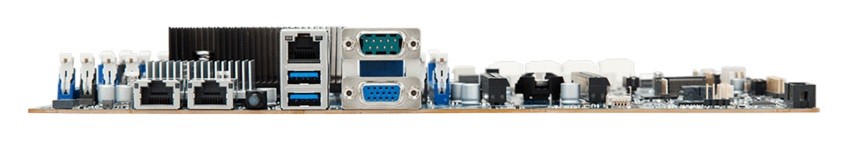

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.0 | 2 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.0 | Ports (2.54 mm Pitch) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 14 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2012 | wird unterstützt | ||
Windows Server 2016 | wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | ATX | ||
Breite | 305 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
