ATX Server Mainboards
Produkt ist EOL (End Of Life)!
// ATX Industrie-Mainboards
// LGA 2011 (R3)
// Intel C612
// 288 Pin DIMM DDR4
// 1 x VGA
// 5 x G-LAN
// 6 x USB
// 5 x USB (internal)
// 2 x Seriell I/O
// 3 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

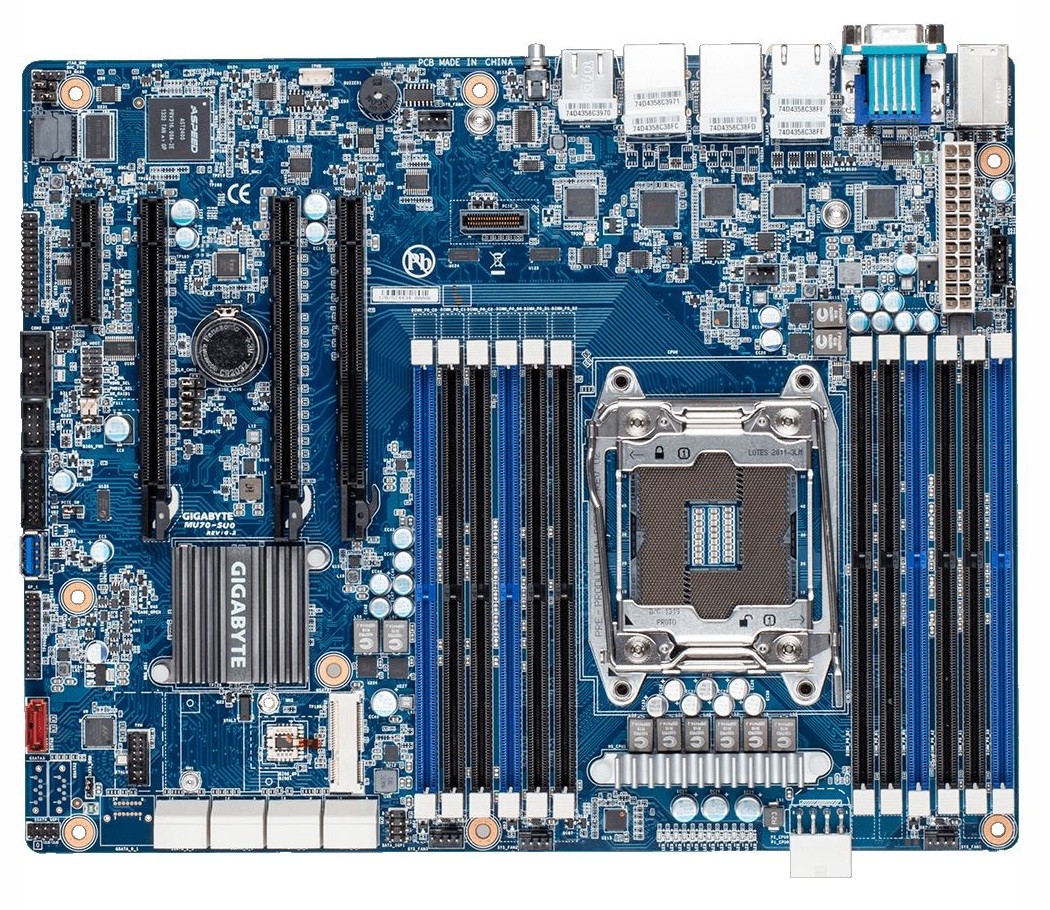

Basismodul: GIGAIPC MU70-SU0
Allgemein | ||||
SKU / Artikelnummer | MU70-SU0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Sockel | LGA 2011 (R3) | ||
Chipsatz | Intel C612 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Frequenz | 2133 / 2400 MHz | |||
Steckplätze | 12 St | |||
Maximaler Ausbau | 128 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Aspeed AST2400 BMC | |
Grafik | ||||
Prozessor | Aspeed AST2400 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x4 | Generation | 2 | ||
x2 Signal | 1 St | |||
PCIe x16 | x8 Signal | Generation | 3 | |
Anzahl | 1 St | |||
x16 Signal | Generation | 3 | ||
Anzahl | 2 St | |||
PCIe Schnittstellen | 1x PCIe x4, 3x PCIe x16 | |||
Storage | mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | |
Anzahl | 4 St | |||
Netzwerk | 4x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 5 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.0 | 4 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
PS/2 | mini-DIN-6 | 1 St | ||
Anzeige | VGA | 1 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
USB v3.0 | Ports (2.54 mm Pitch) | 2 St | ||
Ports (Typ-A-Buchse) | 1 St | |||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 9 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2012 | wird unterstützt | ||
Windows Server 2016 | wird unterstützt | |||
Linux | Distribution | Ubuntu 12.04, Ubuntu 14.04 | ||
Unterstützte BS | Windows, Linux | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 35°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | ATX | ||
Breite | 244 mm | |||
Tiefe | 305 mm | |||
Zertifikate / Konformitäten | ||||
RoHS konform | Ja |
