ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 4189 (P4)
// Intel C621A
// 288 Pin Registered DIMM DDR4 mit ECC
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 7 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

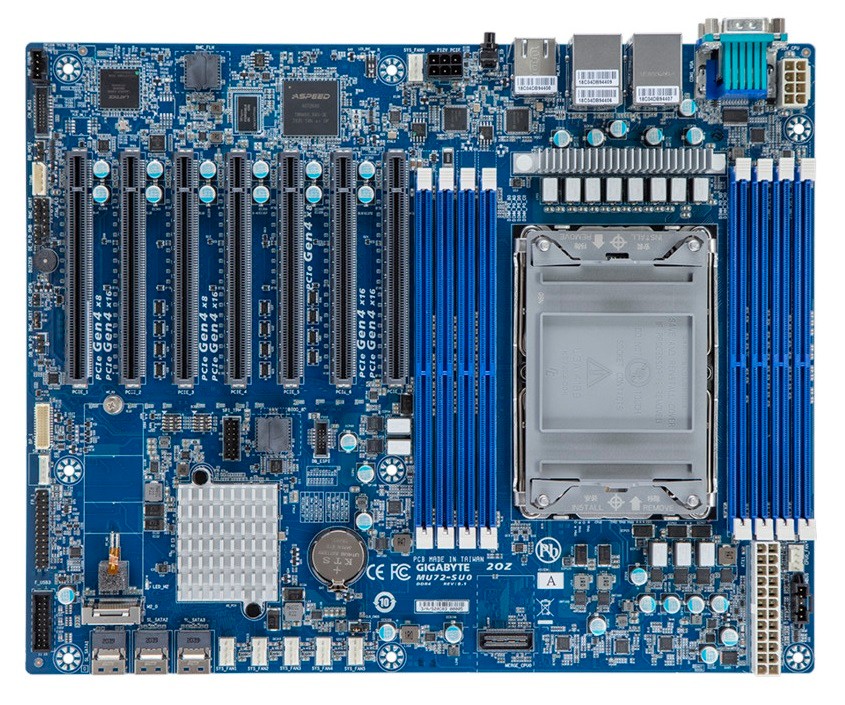

Basismodul: GIGAIPC MU72-SU0
Allgemein | ||||
SKU / Artikelnummer | MU72-SU0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Ice Lake | |||
Sockel | LGA 4189 (P4) | |||
Thermal Design Power (TDP) | 270 W | |||
Lithographie | 10 nm | |||
Chipsatz | Intel C621A | |||
Speicher | Aufbau | 288 Pin Registered DIMM DDR4 mit ECC | ||
Memory Type | DDR4 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 8 St | |||
Maximaler Ausbau | 256 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI SPI 64 Mbit | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x8 Signal | Generation | 4 | |
Anzahl | 6 St | |||
x16 Signal | Generation | 4 | ||
Anzahl | 1 St | |||
PCIe Schnittstellen | 7x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

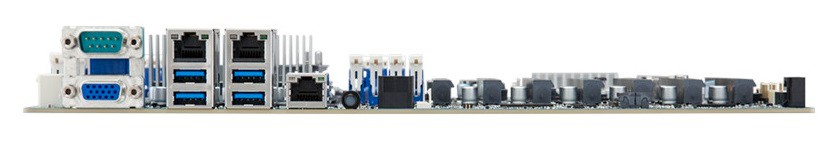

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.0 | 4 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.0 | Ports (Typ-A-Buchse) | 2 St | |
VROC Stecker | Ja | |||
Serial-ATA | Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | |
Serial Attached SCSI (SAS) | SAS | 3 St | ||
SAS Anschlüsse / Ports | SlimSAS | |||
RAID Unterstützung | RAID 0/1/5/10 | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 6-Pin ATX (12V DC), 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 6-Pin ATX (12V DC), 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2016 | wird unterstützt | ||
Windows Server 2019 | wird unterstützt | |||
Windows Server 2022 | wird unterstützt | |||
Linux | Distribution | Linux, Ubuntu 20.04, Ubuntu 22.04 | ||
Unterstützte BS | Windows, Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | ATX | ||
Breite | 304,8 mm | |||
Tiefe | 244 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
RoHS konform | Ja |
