ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 4844 (SP6)
// 288 Pin DIMM DDR5
// 5 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 3 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

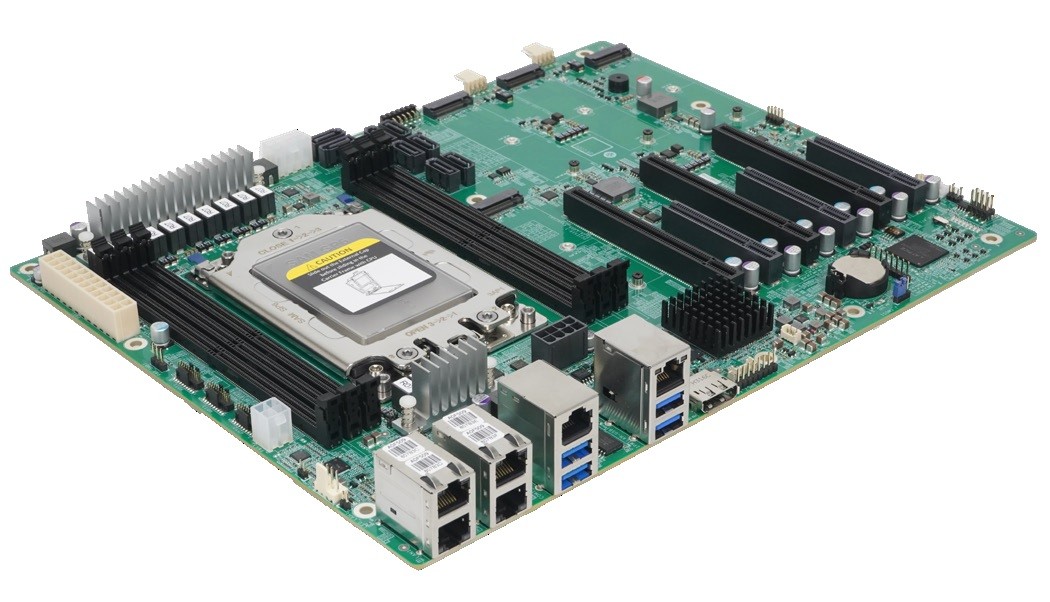

Basismodul: IEI IMBAX-SP6
| Allgemein | ||||
| SKU / Artikelnummer | IMBAX-SP6 | |||
| Produktgrunddaten | ||||
| Hersteller | IEI | |||
| Produkt-ID | IMBAX-SP6-R10 | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Serie | AMD EYPC 8004 Serie | |||
| Sockel | LGA 4844 (SP6) | |||
| Thermal Design Power (TDP) | 225 W | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 6 St | |||
| Maximaler Ausbau | 576 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI UEFI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | ITE IT5571 | |
| IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| Displayport | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x8 | Generation | 4 | ||
| x8 Signal | 3 St | |||
| PCIe x16 | x16 Signal | Anzahl | 3 St | |
| PCIe Schnittstellen | 3x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 4 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 4) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 4 St | |||
| Controller | Chipsatz | Realtek RTL8211E (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 5x G-LAN | |||

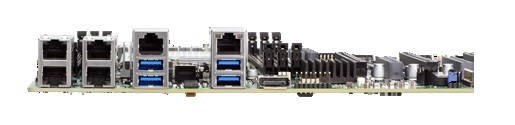

| Externe I/O (Rückseite) | ||||
| Anzeige | Displayport | 1 St | ||
| Ethernet | RJ-45 | 4 St | ||
| RJ-45 mit OOB | 1 St | |||
| USB | USB v3.2 (Gen 1) | 4 St | ||
| Console | RJ45 Anschluss | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
| Gehäuse-Einbruchserkennung (Chassis Intrusion) | Ja | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Lagerung | -30° bis 70°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | ATX | ||
| Breite | 244 mm | |||
| Tiefe | 305 mm | |||
| Gewicht | 900 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| RoHS konform | Ja | |||
