ATX Server Mainboards
// ATX Industrie-Mainboards
// LGA 4677 (P5)
// Intel C741
// 288 Pin DIMM DDR5
// 3 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

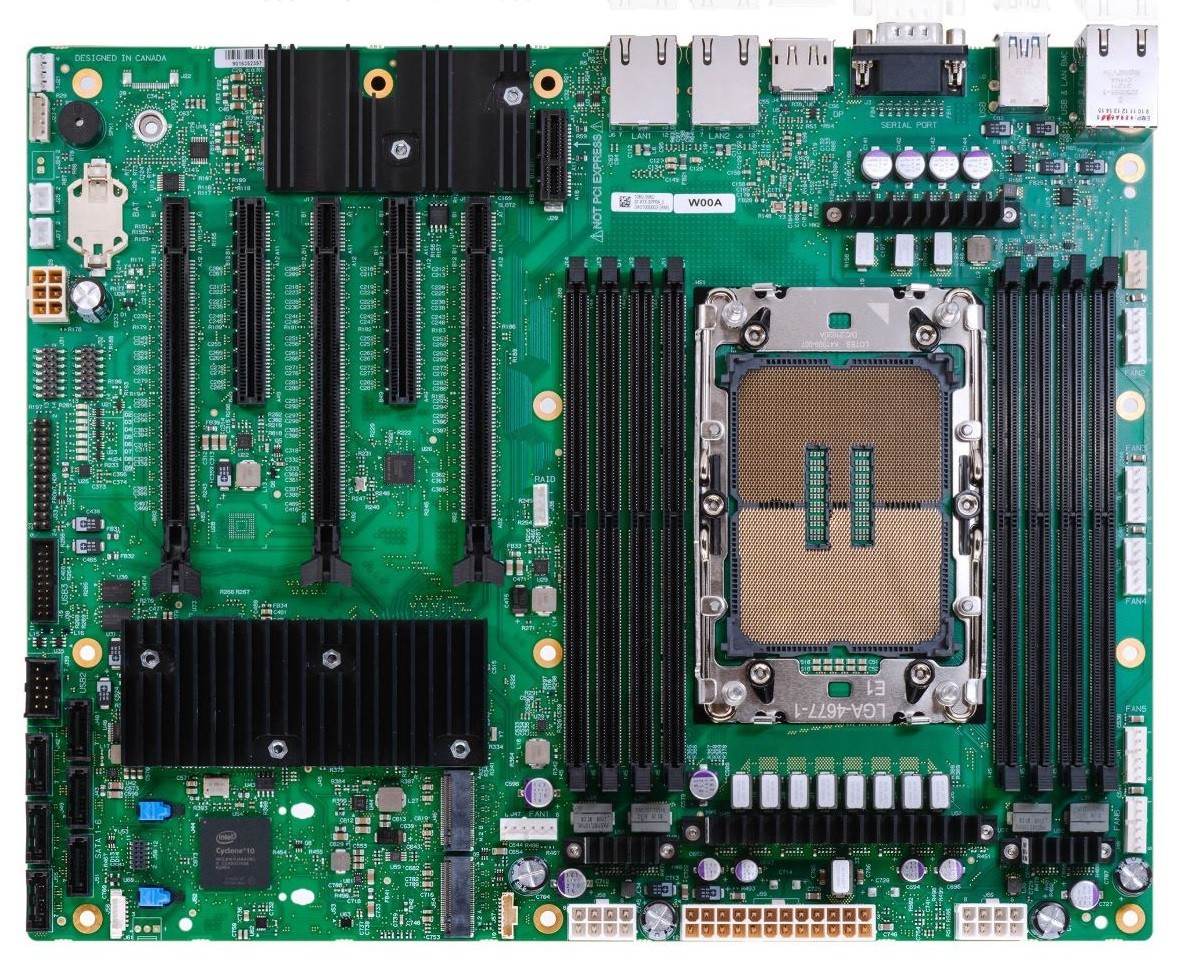

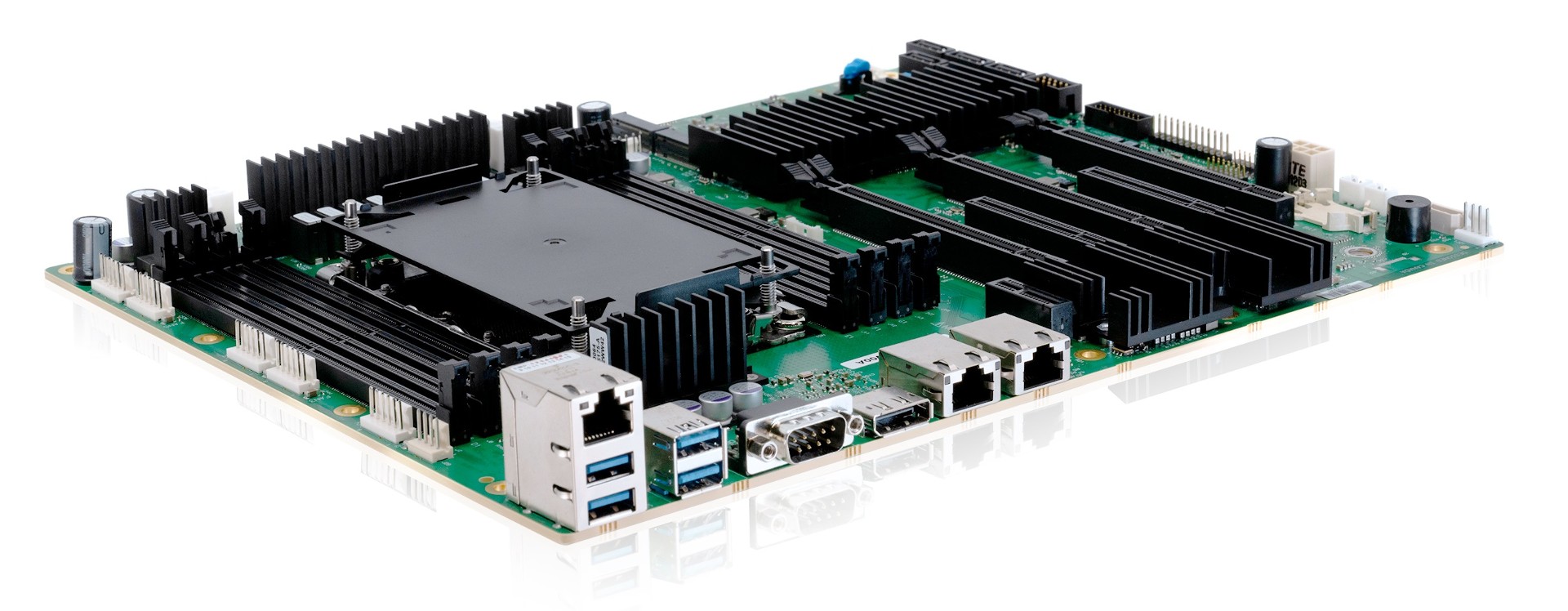

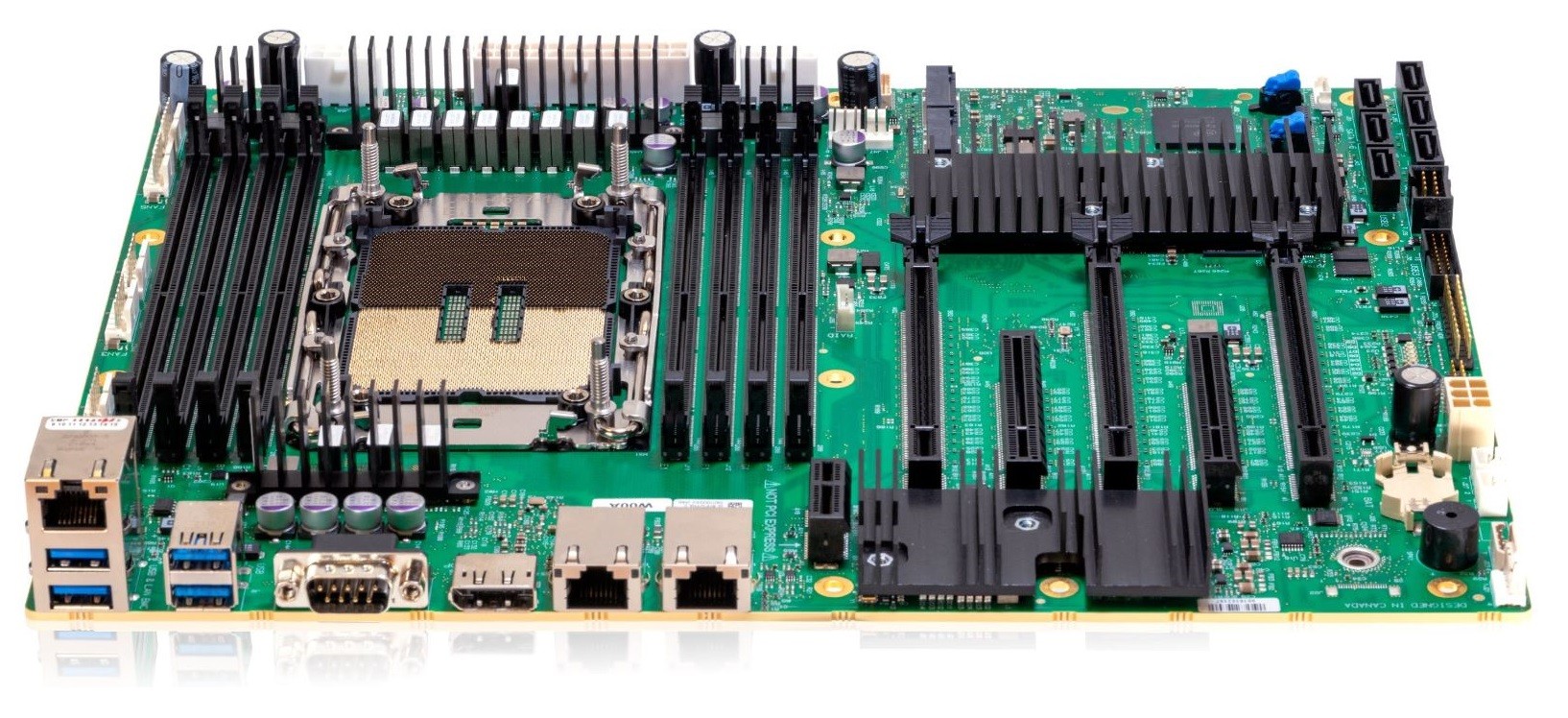

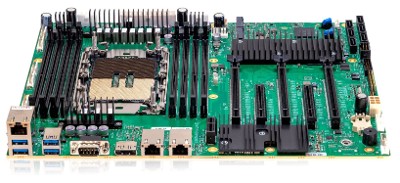

Basismodul: Kontron K9051-C741
| Allgemein | ||||
| SKU / Artikelnummer | K9051-C741 | |||
| Produktgrunddaten | ||||
| Hersteller | Kontron | |||
| Produkt-ID | 1070-9666 | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Sockel | LGA 4677 (P5) | |||
| Thermal Design Power (TDP) | 350 W | |||
| Chipsatz | Intel C741 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | ECC RDIMM | |||
| Frequenz | 5600 MHz | |||
| Steckplätze | 8 St | |||
| Maximaler Ausbau | 768 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI UEFI Aptio 5.x | |||
| IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| Displayport | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x8 | Generation | 5 | ||
| x8 Signal | 2 St | |||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 3 St | |||
| PCIe Schnittstellen | 2x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2242, 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | TSI 92HD68D | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel X710-AT2 (10 Gbps) | |
| Anzahl | 1 St | |||
| Netzwerk | 1x G-LAN | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | Displayport | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| RJ-45 mit OOB | 1 St | |||
| Seriell | RS-232 | DB-9 | 1 St | |
| USB | USB v3.1 Gen. 1 | 4 St | ||
| Interne I/O | ||||
| USB | USB v3.1 | Ports (Typ-A-Buchse) | 2 St | |
| Audio | Anschluss | 2.00 mm Pitch | ||
| Line-In | 1 St | |||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |||
| Betriebssysteme / Software | ||||
| Windows | Windows Server 2022 | wird unterstützt | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Unterstützte BS | Windows, Linux | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 60°C | ||
| Abmaße | Formfaktor | ATX | ||
| Breite | 244 mm | |||
| Tiefe | 305 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| Weitere Zertifikate / Konformitäten | ICE 003, IEC 62368-1, UKCA | |||
| RoHS konform | Ja | |||
