E-ATX Server Mainboards
// Industrie-Mainboards
// LGA 4677 (P5)
// Intel C741
// 288 Pin DIMM DDR5
// 4 x G-LAN (Rückseite)
// 2 x USB (Rückseite)
// 4 x USB (intern)
// 1 x Seriell I/O
// 6 x PCIe x8
// 2 x PCIe x16
// Stromversorgung ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

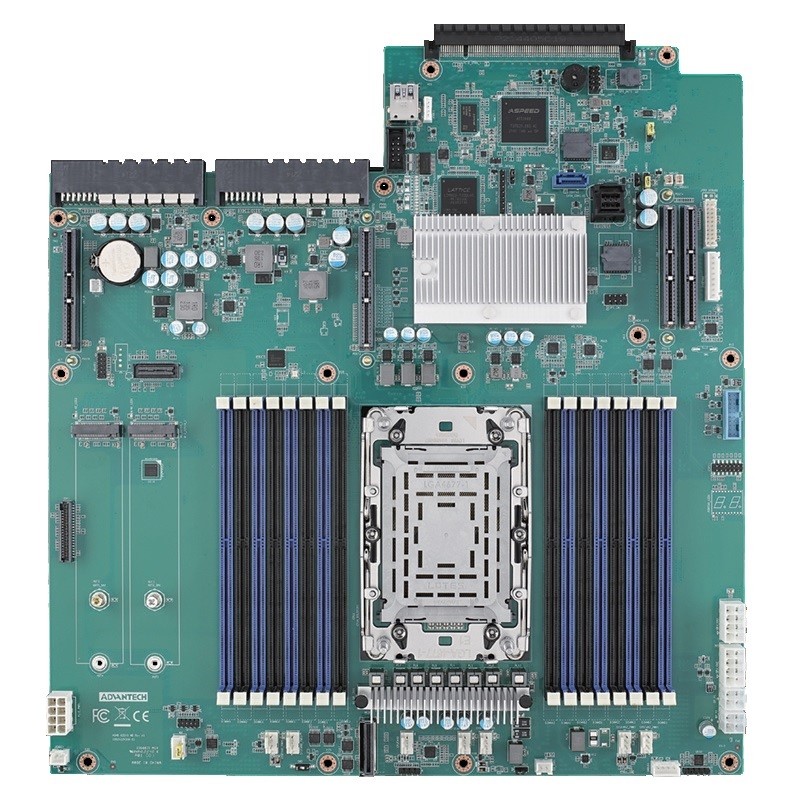

Basismodul: Advantech ASMB-622V3
Allgemein | ||||
SKU / Artikelnummer | ASMB-622V3 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | ASMB-622V3-00A1 | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Sapphire Rapids | |||
Sockel | LGA 4677 (P5) | |||
Thermal Design Power (TDP) | 270 W | |||
Chipsatz | Intel C741 | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 5200 MHz | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 4096 GB | |||
ECC | wird unterstützt | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT5121VG-I | |
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
Erweiterung | ||||
PCIe x8 | x8 Signal | 6 St | ||
PCIe x16 | x16 Signal | Anzahl | 2 St | |
PCIe Schnittstellen | 6x PCIe x8, 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | B + M | |
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280, 22110 | |||
Slot 2 | Key ID | B + M | ||
Interface | NVMe, PCIe ×4 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2280, 22110 | |||
M.2 Key IDs | B + M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I350-AM4 Quad Port PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 4 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.0 | 2 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.0 | Ports (2.54 mm Pitch) | 2 St | |
Ports (Typ-A-Buchse) | 2 St | |||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
SMBus | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Serial Attached SCSI (SAS) | SAS | 1 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
SAS Anschlussstecker | Typ SFF-8643 | |||
SAS Anschlüsse / Ports | SlimSAS | |||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9670 TT 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 4-Pin ATX (12V DC), 2 x 8-Pin ATX (12V DC) | |
Stromversorgung - Eingang | ATX: 2 x 4-Pin ATX (12V DC), 2 x 8-Pin ATX (12V DC) | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Windows Server 2019 | wird unterstützt | |||
Windows Server 2022 | wird unterstützt | |||
Unterstützte BS | Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Breite | 326 mm | ||
Tiefe | 343 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
