E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 4710
// LGA 4710
// 288 Pin DIMM DDR5
// [3 | 5] x G-LAN (Rückseite)
// 6 x USB (Rückseite)
// 3 x USB (intern)
// 1 x Seriell I/O
// 1 x PCIe x8
// 5 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

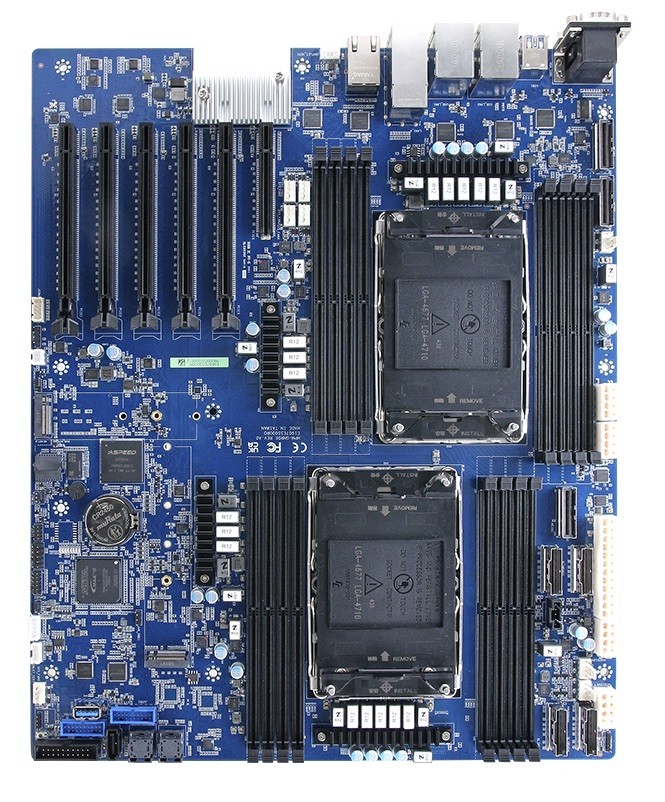

Basismodul: Avalue HPM-GNRDE
Allgemein | ||||
SKU / Artikelnummer | HPM-GNRDE | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Granite Rapids | |||
Sockel | LGA 4710 | |||
Thermal Design Power (TDP) | 350 W | |||
Prozessor 2 | Vertikales Segment | Server | ||
Serie | Intel Granite Rapids | |||
Sockel | LGA 4710 | |||
Thermal Design Power (TDP) | 350 W | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
DIMM Type | Registered DIMM | |||
Frequenz | 6400 MHz | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 4096 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI UEFI BIOS | |||
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 5 | ||
x8 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 5 St | |||
PCIe Schnittstellen | 1x PCIe x8, 5x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 5) | |||
Unterstütze Abmaße | 2242, 2260, 2280, 22110 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 5) | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | -, Intel E610-XAT2 (2 x 10GbE) | ||
Anzahl | 1 St, - | |||
Controller | Chipsatz | Realtek RTL8211F (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN, 4x G-LAN | |||

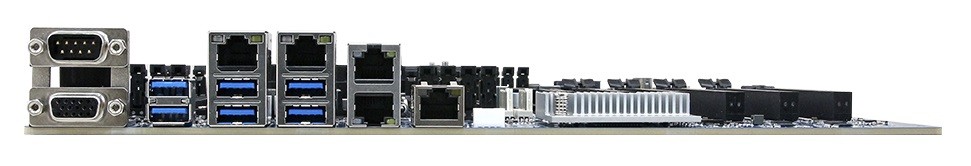

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St, 4 St | ||
RJ-45 mit OOB | 1 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 2) | 6 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.2 | Ports (Typ-A-Buchse) | 1 St | |
Key-A Header (20-Pin) | 2 St | |||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Serial Attached SCSI (SAS) | SAS Anschlüsse / Ports | 2 x Mini-SAS | ||
Mini Cool Edge IO (MCIO) | 8i | 7 St | ||
Gehäuse-Einbruchserkennung (Chassis Intrusion) | Ja | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 5 x 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 5 x 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2450 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2025 | wird unterstützt | ||
Windows Embedded | Windows 11 IoT | wird unterstützt | ||
Linux | Distribution | Ubuntu 24.04 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 55°C, 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | E-ATX | ||
Breite | 304,8 mm | |||
Tiefe | 354,94 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
