E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 3647 (P3)
// LGA 3647 (P3)
// Intel C622
// 288 Pin Registered DIMM DDR4 mit ECC
// [2 | 4] x G-LAN (Back side)
// 4 x G-LAN
// 4 x USB (Back side)
// 4 x USB
// 5 x USB (internal)
// 2 x Seriell I/O
// 1 x PCIe x8
// 5 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

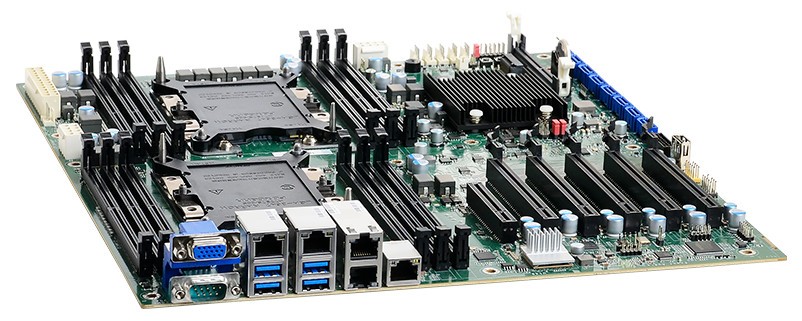

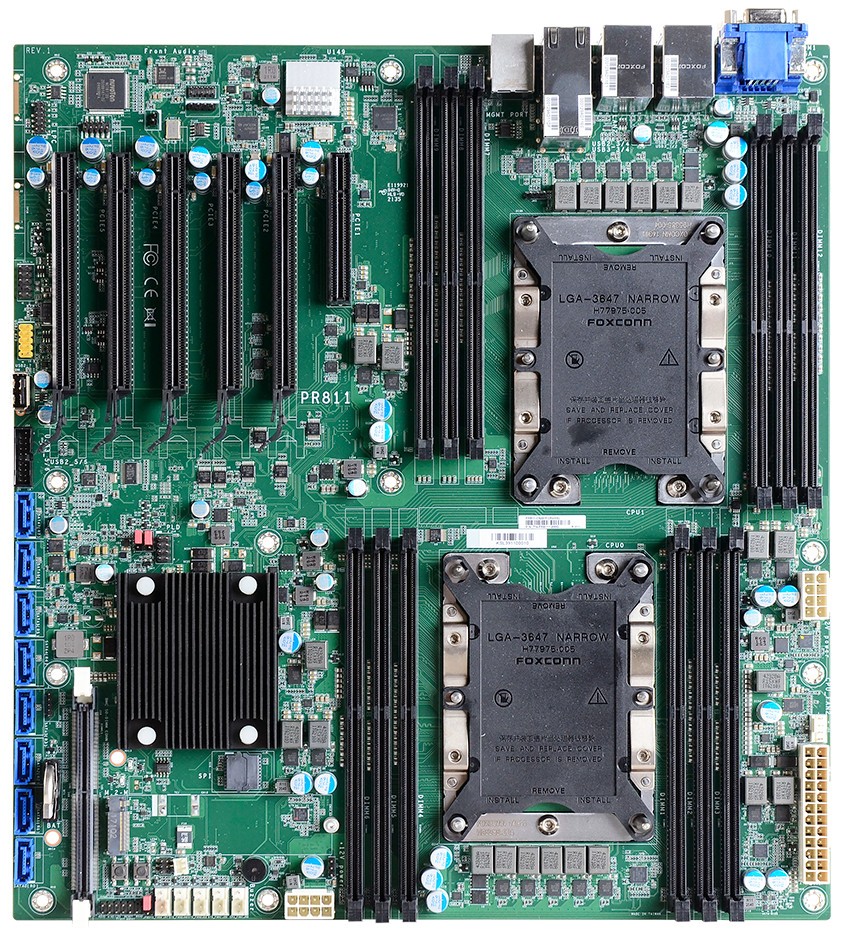

Basismodul: DFI PR811-C622
Allgemein | ||||
SKU / Artikelnummer | PR811-C622 | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 770-PR8111-000G, 770-PR8111-100G, 770-PR8111-200G, 770-PR8111-300G | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Purley (Skylake-SP / Lewisburg) | |||
Sockel | LGA 3647 (P3) | |||
Mehrprozessorsystem | Dual-Prozessor | |||
Thermal Design Power (TDP) | 150 W | |||
Prozessor 2 | Vertikales Segment | Server | ||
Serie | Intel Purley (Skylake-SP / Lewisburg) | |||
Sockel | LGA 3647 (P3) | |||
Mehrprozessorsystem | Dual-Prozessor | |||
Thermal Design Power (TDP) | 150 W | |||
Chipsatz | Intel C622 | |||
Speicher | Aufbau | 288 Pin Registered DIMM DDR4 mit ECC | ||
Frequenz | 2933 MHz | |||
Steckplätze | 12 St | |||
Maximaler Ausbau | 768 GB | |||
ECC | wird unterstützt | |||
BIOS | Insyde SPI 128 Mbit | |||
IPMI | IPMI-Controller | -, Aspeed AST2500 BMC | ||
Version | 2.0, - | |||
Grafik | ||||
Prozessor | -, Aspeed AST2500 BMC, Aspeed AST2510 | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz, - | ||
Erweiterung | ||||
PCIe x8 | Generation | 3 | ||
x8 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 5 St | |||
PCIe Schnittstellen | 1x PCIe x8, 5x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4, SATA III | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC887 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | -, Intel X557-AT2 (10 Gbps) | ||
Anzahl | 1 St, - | |||
Netzwerk | 2x G-LAN | |||
Externe I/O | ||||
Ethernet | RJ-45 | 4 St | ||
USB | USB v3.1 Gen. 1 | 4 St | ||
Seriell | RS-232 | DB-9 | 1 St | |

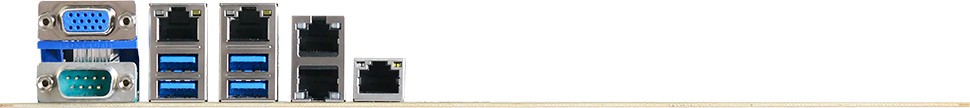

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St, - | ||
Ethernet | RJ-45 | 2 St, 4 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 4 St | ||
Console | -, RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
Ports (Typ-A-Buchse) | 1 St | |||
USB v3.1 | Ports (2.00 mm Pitch) | 2 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 1 St | |
SMBus | 1 St | |||
LPC | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2016 | wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Linux | Distribution | Ubuntu 18.04 LTS | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 330 mm | |||
Tiefe | 305 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
