E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 3647 (P3)
// LGA 3647 (P3)
// Intel C622
// 288 Pin Registered DIMM DDR4 mit ECC
// 4 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// 3 x PCIe x8
// 3 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

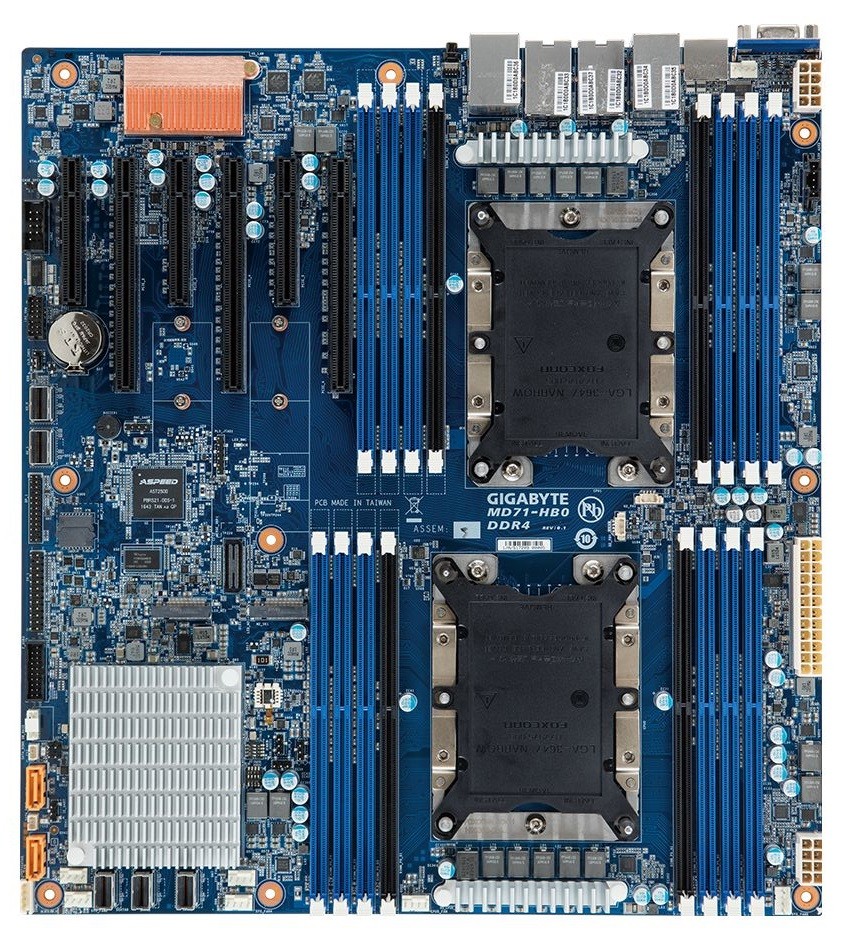

Basismodul: GIGAIPC MD71-HB0
| Allgemein | ||||
| SKU / Artikelnummer | MD71-HB0 | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| Produkt-ID | 9MD71HB0MR-00-1 | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Sockel | LGA 3647 (P3) | |||
| Mehrprozessorsystem | Dual-Prozessor | |||
| Max. CPU-Bestückung | 2 St | |||
| Thermal Design Power (TDP) | 205 W | |||
| Prozessor 2 | Sockel | LGA 3647 (P3) | ||
| Mehrprozessorsystem | Dual-Prozessor | |||
| Max. CPU-Bestückung | 2 St | |||
| Thermal Design Power (TDP) | 205 W | |||
| Chipsatz | Intel C622 | |||
| Speicher | Aufbau | 288 Pin Registered DIMM DDR4 mit ECC | ||
| Frequenz | 2666 / 2933 MHz | |||
| Steckplätze | 16 St | |||
| Maximaler Ausbau | 128 GB | |||
| ECC | wird unterstützt | |||
| IPMI | IPMI-Controller | Aspeed AST2500 BMC | ||
| Version | 2.0 | |||
| Grafik | ||||
| Prozessor | Aspeed AST2500 BMC | |||
| Erweiterung | ||||
| PCIe x8 | Generation | 3 | ||
| x4 Signal | 1 St | |||
| x8 Signal | 2 St | |||
| PCIe x16 | x16 Signal | Generation | 3 | |
| Anzahl | 3 St | |||
| PCIe Schnittstellen | 3x PCIe x8, 3x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 3) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| M.2 Key IDs | M | |||
| U.2 | Slot 1 | Anschluss | SlimSAS | |
| Generation | 3 | |||
| Signal | PCIe x4 | |||
| Slot 2 | Anschluss | SlimSAS | ||
| Generation | 3 | |||
| Signal | PCIe x4 | |||
| Storage | M.2, SATA DOM | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel X557-AT2 (10 Gbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Marvell 88E1514 (10/100/1000 Mbps) | ||
| Anzahl | 2 St | |||
| Netzwerk | 3x G-LAN | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| Ethernet | RJ-45 | 4 St | ||
| Seriell | RS-232 / 422 / 485 | RJ-45 | 1 St | |
| USB | USB v3.0 | 2 St | ||
| Console | RJ45 Anschluss | |||
| Interne I/O | ||||
| USB | USB v3.0 | Ports (2.00 mm Pitch) | 2 St | |
| Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | |
| VROC Stecker | Ja | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| Serial Attached SCSI (SAS) | SAS | 5 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| SAS Anschlüsse / Ports | SlimSAS | |||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |||
| PMBus Stecker | Ja | |||
| Betriebssysteme / Software | ||||
| Windows | Windows Server 2012 | wird unterstützt | ||
| Windows Server 2016 | wird unterstützt | |||
| Windows Server 2019 | wird unterstützt | |||
| Linux | Distribution | Linux, Ubuntu 16.04, Ubuntu 18.04 LTS, Ubuntu 20.04, Ubuntu 22.04 | ||
| Unterstützte BS | Windows, Linux | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 10° bis 40°C | ||
| Lagerung | -40° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 80%, nicht kondensierend | ||
| Lagerung | 20 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | E-ATX | ||
| Breite | 305 mm | |||
| Tiefe | 330 mm | |||
