E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 4844 (SP6)
// SoC (System-On-Chip)
// 288 Pin DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (internal)
// 4 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

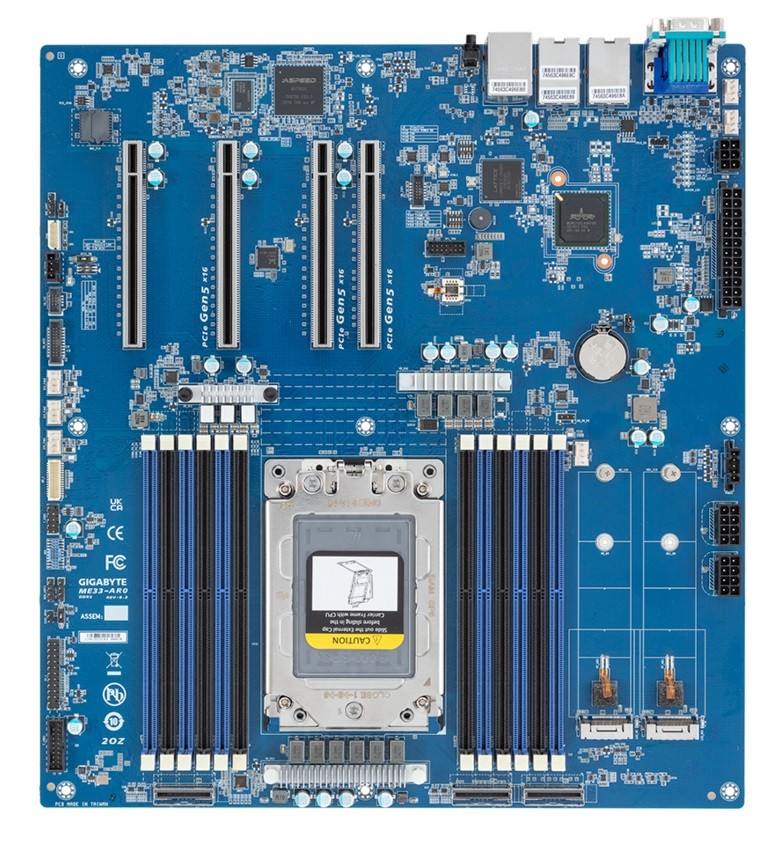

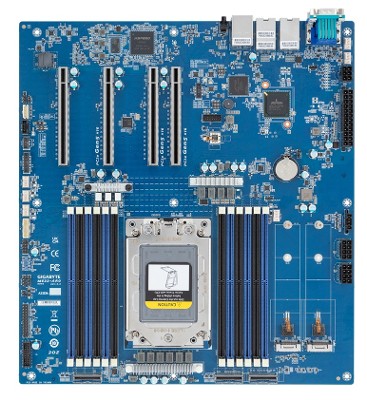

Basismodul: GIGAIPC ME33-AR0
Allgemein | ||||
SKU / Artikelnummer | ME33-AR0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9ME33AR0NR-000-10 | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | AMD EYPC 8004 Serie | |||
Sockel | LGA 4844 (SP6) | |||
Thermal Design Power (TDP) | 225 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 12 St | |||
Maximaler Ausbau | 96 GB | |||
ECC | wird unterstützt | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 4 St | |||
PCIe Schnittstellen | 4x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 5) | |||
Unterstütze Abmaße | 2280, 22110 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 5) | |||
Unterstütze Abmaße | 2280, 22110 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Broadcom BCM5720 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||

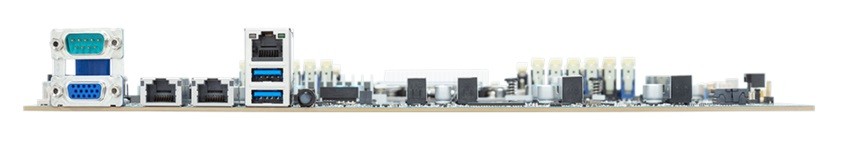

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
Mini Cool Edge IO (MCIO) | 8i | 3 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 304,8 mm | |||
Tiefe | 330,2 mm |
