E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// sTR5
// AMD WRX90
// 288 Pin DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 6 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

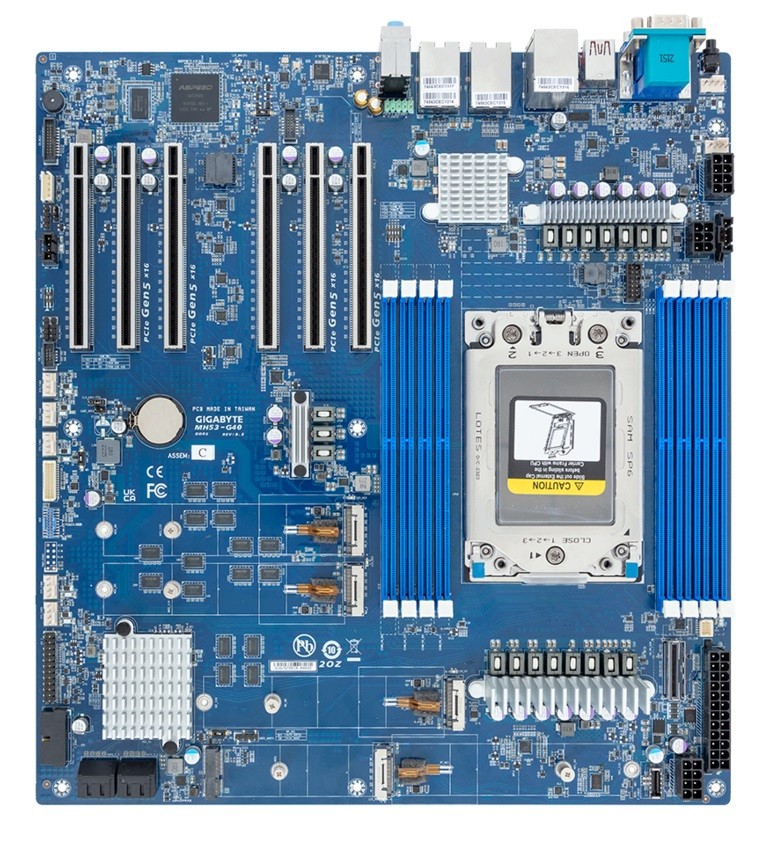

Basismodul: GIGAIPC MH53-G40
| Allgemein | ||||
| SKU / Artikelnummer | MH53-G40 | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| Produkt-ID | 9MH53G40NR-000-1 | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Serie | AMD Ryzen Threadripper PRO 7000 WX-Series | |||
| Sockel | sTR5 | |||
| Thermal Design Power (TDP) | 350 W | |||
| Chipsatz | AMD WRX90 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequenz | 5200 MHz | |||
| Steckplätze | 8 St | |||
| ECC | wird unterstützt | |||
| IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
| Version | 2.0 | |||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 6 St | |||
| PCIe Schnittstellen | 6x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| Slot 2 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| Slot 4 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| Slot 5 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 3) | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC897 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Broadcom BCM57416 (10 Gbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

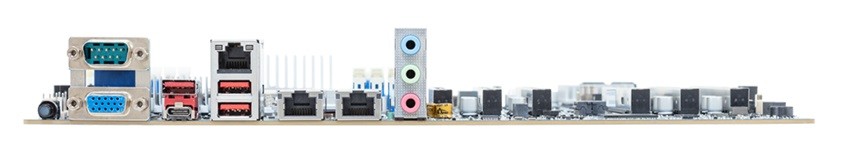

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Mic-In | 1 St | |||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 | DB-9 | 1 St | |
| USB | USB v3.2 (Gen 2, Type A) | 3 St | ||
| USB v3.2 (Gen 2, Type C) | 1 St | |||
| Console | RJ45 Anschluss | |||
| Interne I/O | ||||
| USB | USB v3.2 | Key-A Header (20-Pin) | 4 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| Mini Cool Edge IO (MCIO) | 8i | 1 St | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |||
| PMBus Stecker | Ja | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 11 | Wird unterstützt | ||
| Linux | Distribution | Linux, Ubuntu 22.04 | ||
| Unterstützte BS | Windows, Linux | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 10° bis 40°C | ||
| Lagerung | -40° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
| Lagerung | 20 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | E-ATX | ||
| Breite | 304,8 mm | |||
| Tiefe | 330,2 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
