E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 4710
// SoC (System-On-Chip)
// 288 Pin DIMM DDR5
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 1 x USB (internal)
// 1 x Seriell I/O
// 4 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

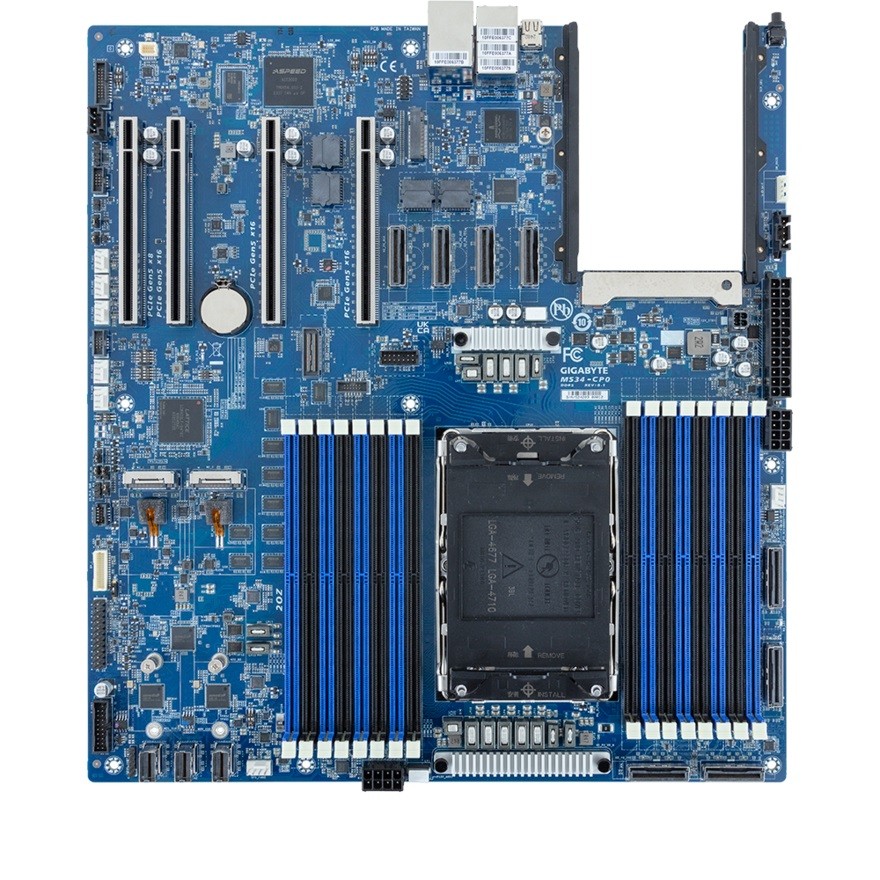

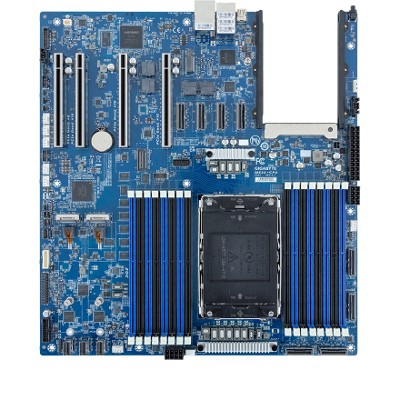

Basismodul: GIGAIPC MS34-CP0
Allgemein | ||||
SKU / Artikelnummer | MS34-CP0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MS34CP0NR-000-1 | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | Intel Sierra Forest | |||
Sockel | LGA 4710 | |||
Thermal Design Power (TDP) | 350 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 6400 MHz | |||
Steckplätze | 16 St | |||
ECC | wird unterstützt | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
Erweiterung | ||||
PCIe x16 | x8 Signal | Generation | 5 | |
Anzahl | 2 St | |||
x16 Signal | Generation | 5 | ||
Anzahl | 2 St | |||
PCIe Schnittstellen | 4x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×2 (Gen. 5) | |||
Unterstütze Abmaße | 2280, 22110 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×2 (Gen. 5), SATA III | |||
Unterstütze Abmaße | 2280, 22110 | |||
M.2 Key IDs | M | |||
NIC Module Slot | Anzahl | 1 St | ||
OCP | Anzahl | 1 St | ||
Version | 3 | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Broadcom BCM5720 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

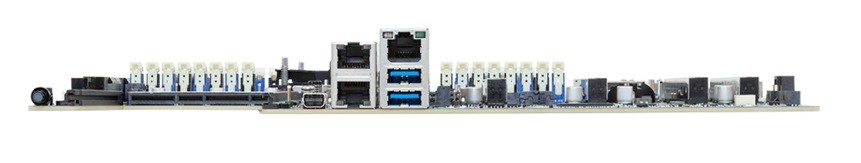

Externe I/O (Rückseite) | ||||
Anzeige | Mini DP | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 2 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.2 | Key-A Header (20-Pin) | 1 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 1 St | |
SMBus | 1 St | |||
VROC Stecker | Ja | |||
Mini Cool Edge IO (MCIO) | 4i | 3 St | ||
8i | 2 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 304,8 mm | |||
Tiefe | 330,2 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
