E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 4189 (P4)
// Intel C621A
// 288 Pin Registered DIMM DDR4 mit ECC
// 2 x G-LAN (Back side)
// 2 x USB (internal)
// 7 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

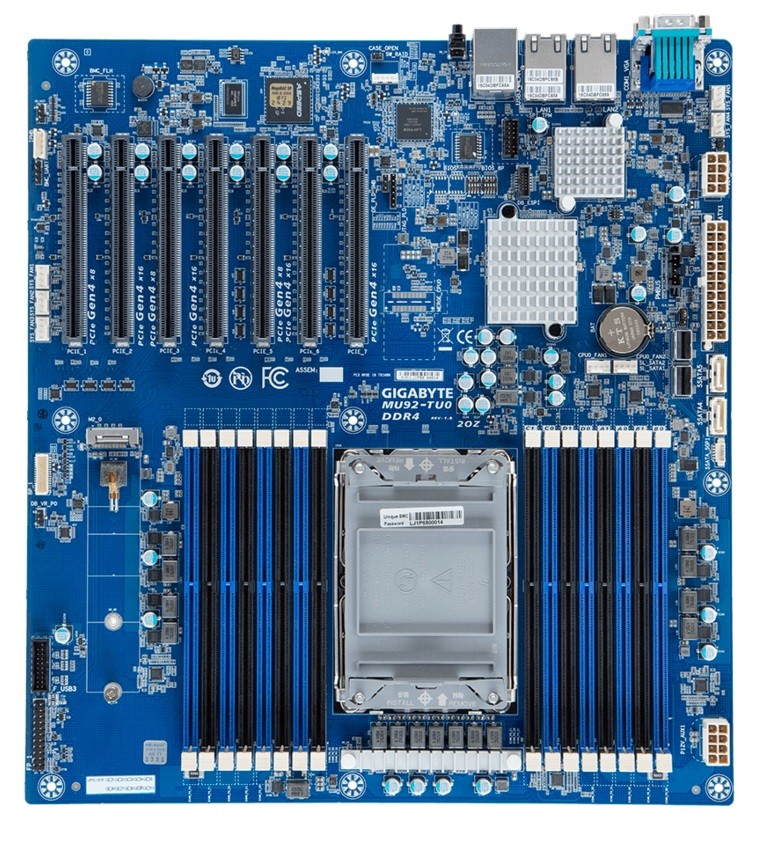

Basismodul: GIGAIPC MU92-TU1
| Allgemein | ||||
| SKU / Artikelnummer | MU92-TU1 | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| Produkt-ID | 9MU92TU1MR-00 | |||
| System | ||||
| Prozessor | Serie | Intel Ice Lake | ||
| Sockel | LGA 4189 (P4) | |||
| Thermal Design Power (TDP) | 270 W | |||
| Chipsatz | Intel C621A | |||
| Speicher | Aufbau | 288 Pin Registered DIMM DDR4 mit ECC | ||
| Memory Type | DDR4 | |||
| Steckplätze | 16 St | |||
| Maximaler Ausbau | 256 GB | |||
| ECC | wird unterstützt | |||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| Erweiterung | ||||
| PCIe x16 | x8 Signal | Generation | 3 | |
| Anzahl | 6 St | |||
| x16 Signal | Generation | 3 | ||
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 7x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 3) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel X710-AT2 (10 Gbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

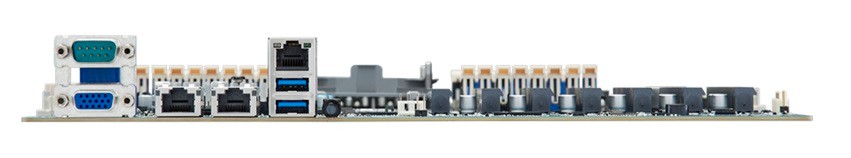

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| Console | RJ45 Anschluss | |||
| Interne I/O | ||||
| USB | USB v3.1 | Key-A Header (20-Pin) | 2 St | |
| VROC Stecker | Ja | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
| Serial Attached SCSI (SAS) | SAS | 2 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| SAS Anschlüsse / Ports | SlimSAS | |||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |||
| PMBus Stecker | Ja | |||
| Betriebssysteme / Software | ||||
| Windows | Windows Server 2016 | wird unterstützt | ||
| Windows Server 2019 | wird unterstützt | |||
| Windows Server 2022 | wird unterstützt | |||
| Linux | Distribution | Linux, Ubuntu 20.04, Ubuntu 22.04 | ||
| Unterstützte BS | Windows, Linux | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 10° bis 40°C | ||
| Lagerung | -40° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
| Lagerung | 20 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | E-ATX | ||
| Breite | 305 mm | |||
| Tiefe | 330 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
