E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 4094 (SP3)
// SoC (System-On-Chip)
// 288 Pin DIMM DDR4
// 2 x G-LAN (Rückseite)
// 3 x USB (Rückseite)
// 2 x USB (intern)
// 1 x PCIe x8
// 6 x PCIe x16
// Stromversorgung ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

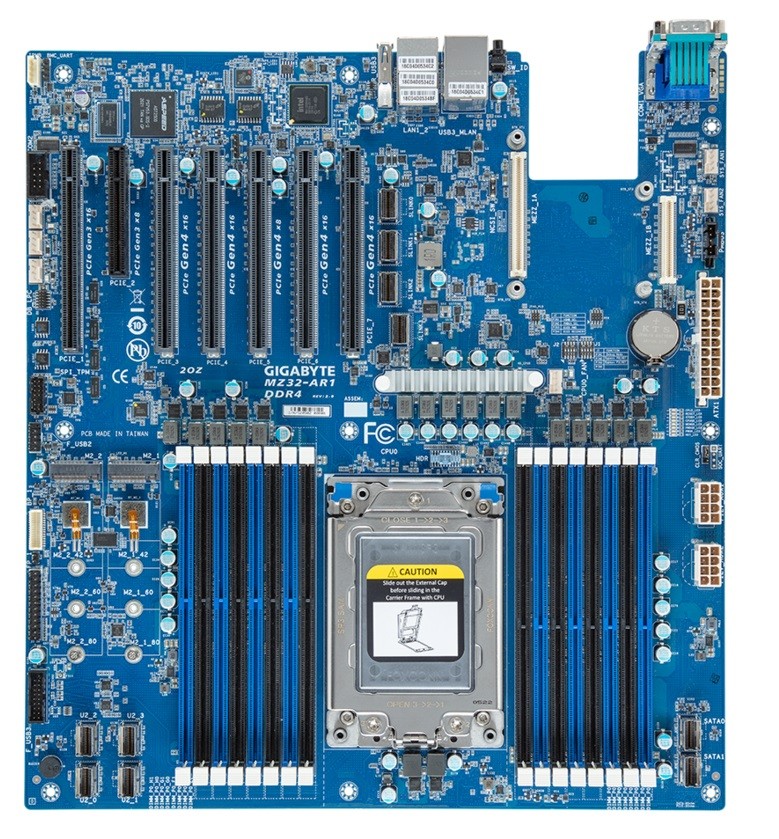

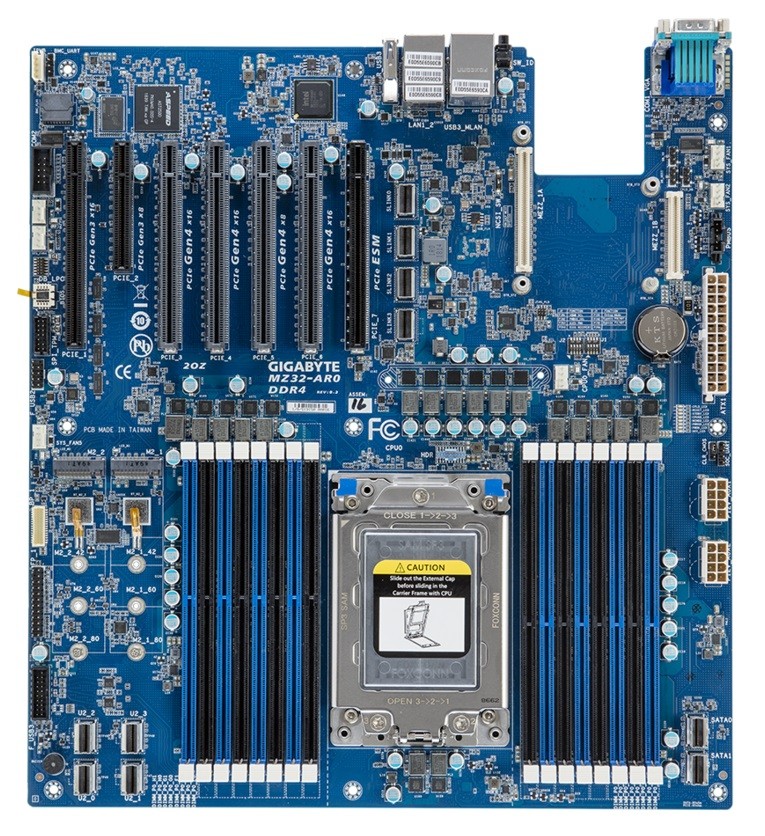

Basismodul: GIGAIPC MZ32
Allgemein | ||||
SKU / Artikelnummer | MZ32 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MZ32AR0NR-00-3, 9MZ32AR1NR-00-3 | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | AMD EPYC 7003 Serie | |||
Sockel | LGA 4094 (SP3) | |||
Thermal Design Power (TDP) | 280 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | Registered DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 16 St | |||
Maximaler Ausbau | 256 GB | |||
ECC | wird unterstützt | |||
IPMI | IPMI-Controller | Aspeed AST2500 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2500 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 3 | ||
x8 Signal | 1 St | |||
PCIe x16 | x8 Signal | Generation | 4 | |
Anzahl | 2 St | |||
x16 Signal | Generation | 4 | ||
Anzahl | 4 St | |||
PCIe Schnittstellen | 1x PCIe x8, 6x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3), PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280, 22110 | |||
M.2 Key IDs | M | |||
OCP | Anzahl | 1 St | ||
Version | 2 | |||
Storage | M.2, U.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I350-AM2 Dual Port PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8211E (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

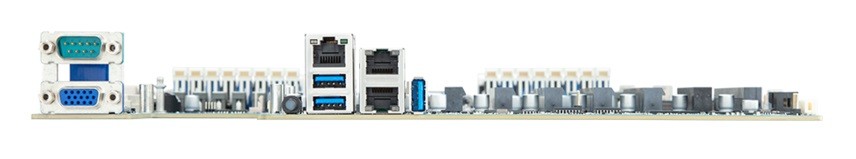

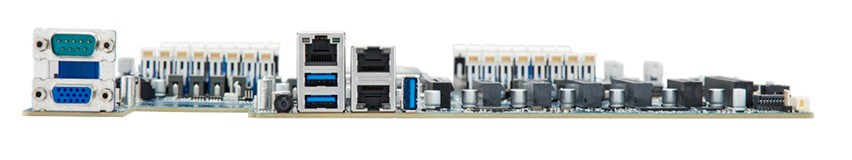

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v3.0 | 3 St, - | ||
USB v3.2 (Gen 1) | 3 St, - | |||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.1 | Key-A Header (20-Pin) | 2 St, - | |
USB v3.2 | Key-A Header (20-Pin) | 2 St, - | ||
Serial Attached SCSI (SAS) | SAS | 4 St | ||
SAS Anschlüsse / Ports | SlimSAS | |||
Mini Cool Edge IO (MCIO) | 4i | 2 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2016 | wird unterstützt | ||
Windows Server 2019 | wird unterstützt | |||
Windows Server 2022 | wird unterstützt | |||
Linux | Distribution | Linux, Ubuntu 18.04 LTS, Ubuntu 20.04, Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 305 mm | |||
Tiefe | 330 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
