E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 6096 (SP5)
// SoC (System-On-Chip)
// 288 Pin DIMM DDR5
// 3 x G-LAN (Back side)
// 2 x USB (Back side)
// 1 x USB (internal)
// 4 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

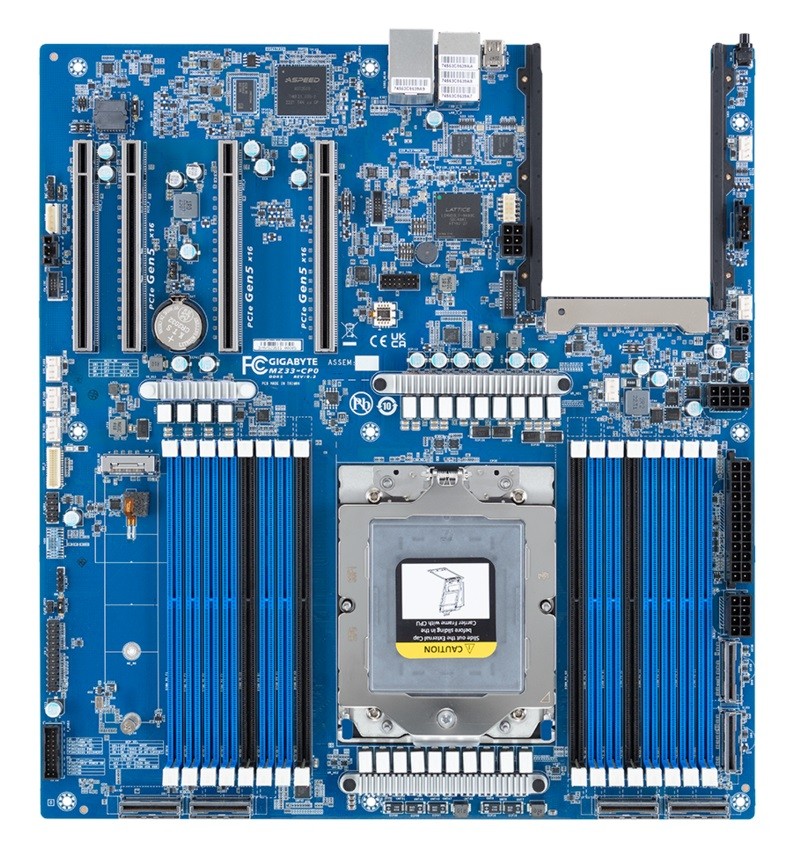

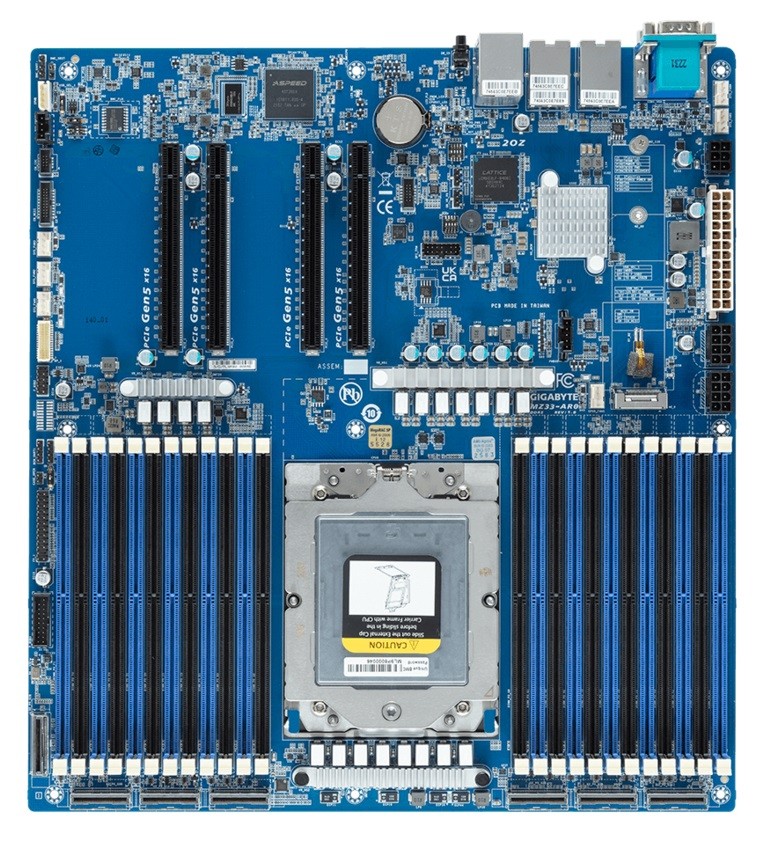

Basismodul: GIGAIPC MZ33
Allgemein | ||||
SKU / Artikelnummer | MZ33 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
System | ||||
Prozessor | Vertikales Segment | Server | ||
Serie | AMD EYPC 9004 Serie | |||
Sockel | LGA 6096 (SP5) | |||
Thermal Design Power (TDP) | 400 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Registered DIMM | |||
Steckplätze | 12 St, 16 St, 24 St | |||
ECC | wird unterstützt | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
Erweiterung | ||||
PCIe x16 | x16 Signal | Anzahl | 4 St | |
PCIe Schnittstellen | 4x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3), PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280, 22110 | |||
M.2 Key IDs | M | |||
OCP | Anzahl | 1 St, - | ||
Version | 3, - | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Broadcom BCM57416 (10 Gbps), Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St, 2 St | |||
Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||

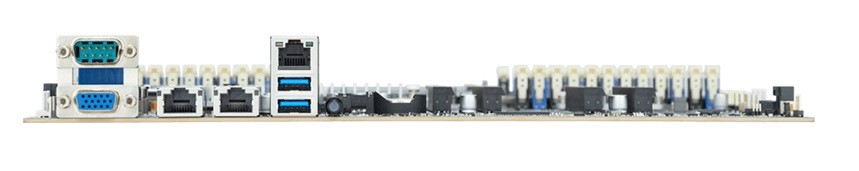

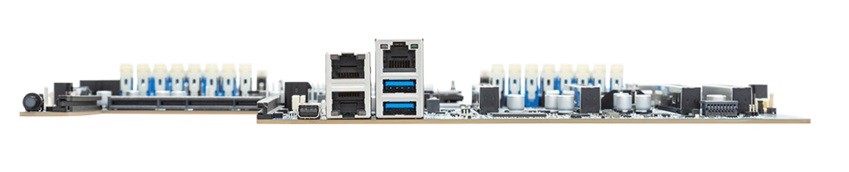

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St, - | ||
Mini DP | 1 St, - | |||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit OOB | 1 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St, - | |
USB | USB v3.2 (Gen 1) | 2 St | ||
Interne I/O | ||||
USB | USB v3.2 | Key-A Header (20-Pin) | 1 St | |
Mini Cool Edge IO (MCIO) | 8i | 6 St, 7 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 4-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |
PMBus Stecker | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | E-ATX | ||
Breite | 305 mm | |||
Tiefe | 330 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
