E-ATX Server Mainboards
// E-ATX Industrie-Mainboards
// LGA 6096 (SP5)
// LGA 6096 (SP5)
// SoC (System-On-Chip)
// 288 Pin DIMM DDR5
// 3 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 4 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

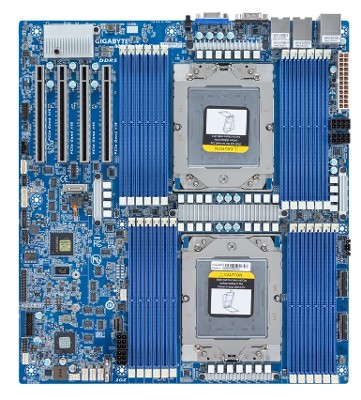

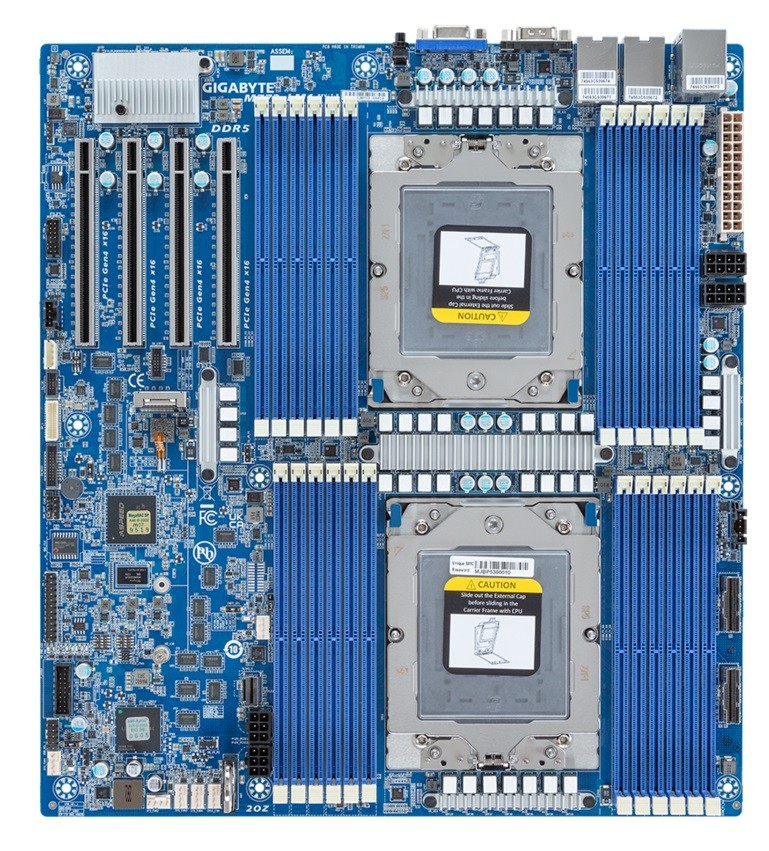

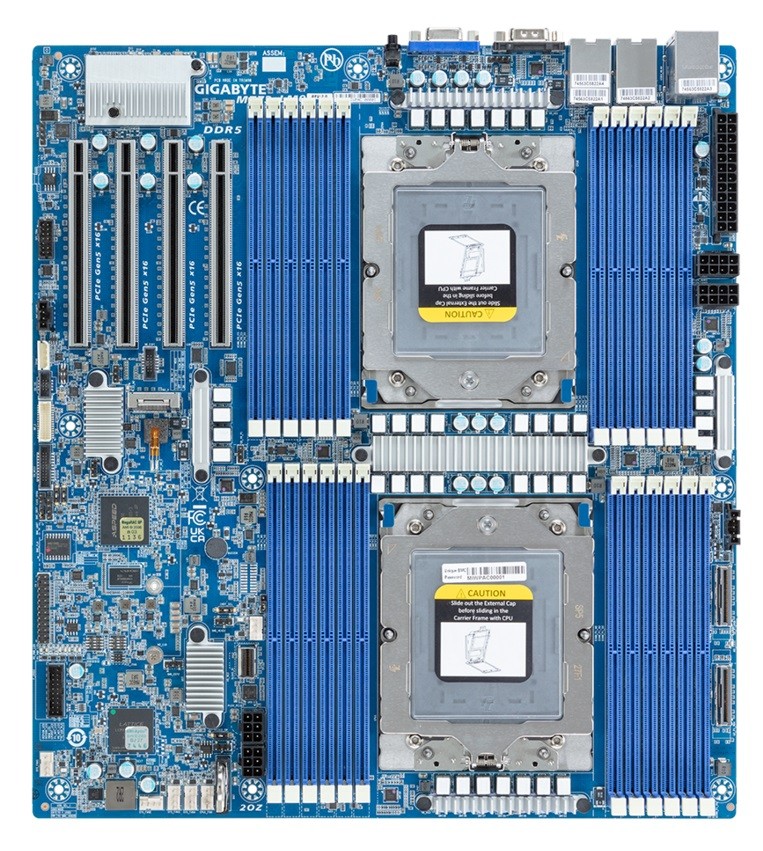

Basismodul: GIGAIPC MZ73
| Allgemein | ||||
| SKU / Artikelnummer | MZ73 | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Serie | AMD EYPC 9004/9005 Serie | |||
| Sockel | LGA 6096 (SP5) | |||
| Mehrprozessorsystem | Dual-Prozessor | |||
| Thermal Design Power (TDP) | 400 W, 500 W | |||
| Prozessor 2 | Vertikales Segment | Server | ||
| Serie | AMD EYPC 9004 Serie | |||
| Sockel | LGA 6096 (SP5) | |||
| Mehrprozessorsystem | Dual-Prozessor | |||
| Thermal Design Power (TDP) | 400 W, 500 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Registered DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 24 St | |||
| Maximaler Ausbau | 256 GB | |||
| ECC | wird unterstützt | |||
| Grafik | ||||
| Prozessor | Aspeed AST2600 BMC | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Generation | 4, 5 | |
| Anzahl | 4 St | |||
| PCIe Schnittstellen | 4x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 4), PCIe ×4 (Gen. 5) | |||
| Unterstütze Abmaße | 2280, 22110 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Broadcom BCM57416 (10 Gbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 2x G-LAN | |||

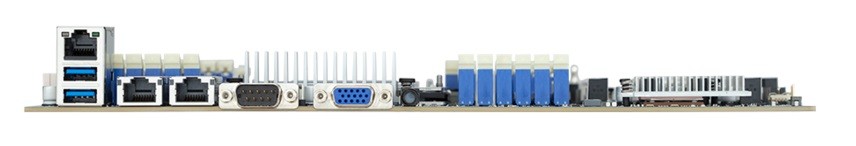

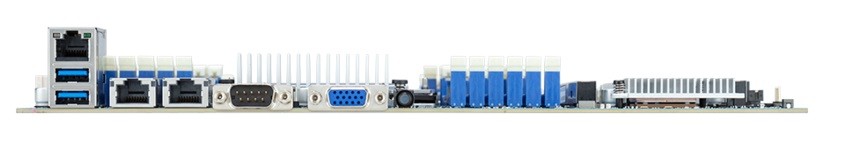

| Externe I/O (Rückseite) | ||||
| Anzeige | VGA | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| RJ-45 mit OOB | 1 St | |||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| USB | USB v3.2 (Gen 1) | 2 St | ||
| Interne I/O | ||||
| USB | USB v3.2 | Key-A Header (20-Pin) | 2 St | |
| Serial Attached SCSI (SAS) | SAS | 1 St | ||
| SAS Anschlüsse / Ports | SlimSAS | |||
| Mini Cool Edge IO (MCIO) | 8i | 2 St | ||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 2 x 6-Pin ATX (12V DC), 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 2 x 6-Pin ATX (12V DC), 2 x 8-Pin ATX (12V DC), 6-Pin ATX (12V DC), 24-Pin ATX | |||
| PMBus Stecker | Ja | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 10° bis 40°C | ||
| Lagerung | -40° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
| Lagerung | 20 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | E-ATX | ||
| Breite | 305 mm | |||
| Tiefe | 330 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
