Micro-ATX Server Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1151 (H4)
// [Intel C242 | Intel C246]
// 288 Pin DIMM DDR4
// [2 | 4] x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 1 x Seriell I/O
// 1 x PCIe x8
// 1 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

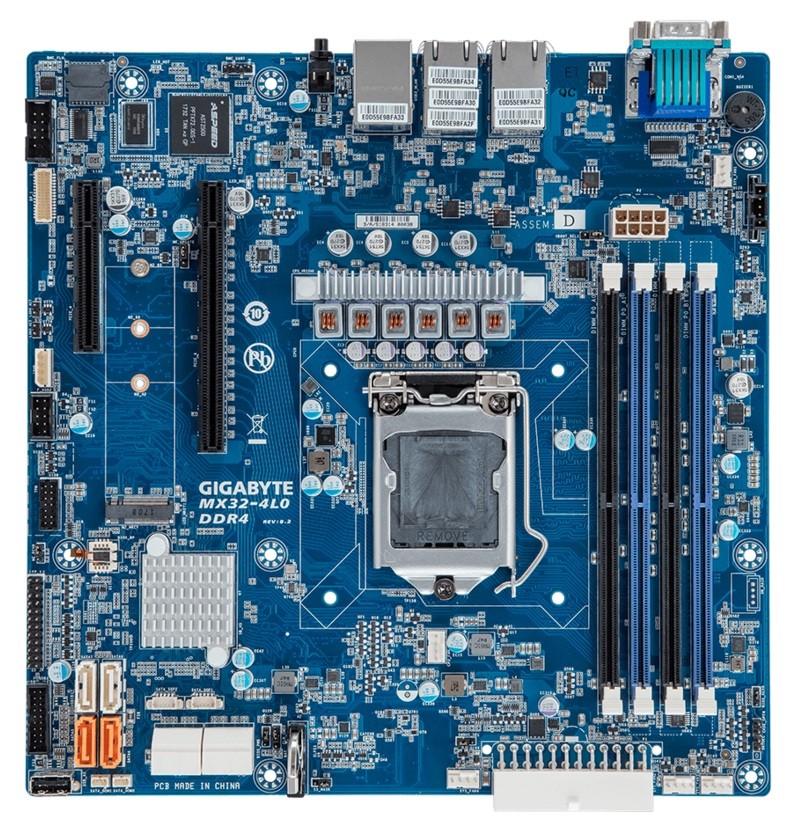

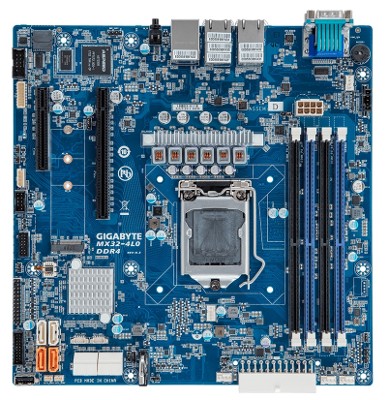

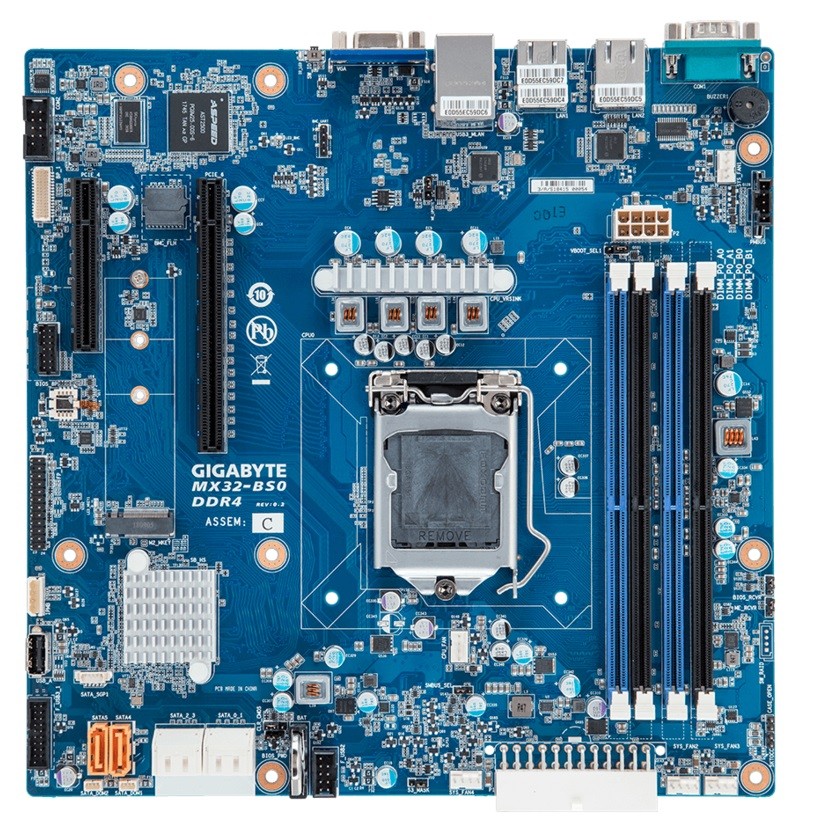

Basismodul: GIGAIPC MX32
Allgemein | ||||
SKU / Artikelnummer | MX32 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MX32BS0NR-00, 9MX324L0NR-00 | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Chipsatz | Intel C242, Intel C246 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | ECC Unbuffered DIMM | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird unterstützt | |||
IPMI | IPMI-Controller | Aspeed AST2500 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2500 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 3 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 3 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x8, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | Optane Memory, PCIe ×2 (Gen. 3), PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2, SATA DOM | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St, 4 St | |||
Controller | Chipsatz | Realtek RTL8211E (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||

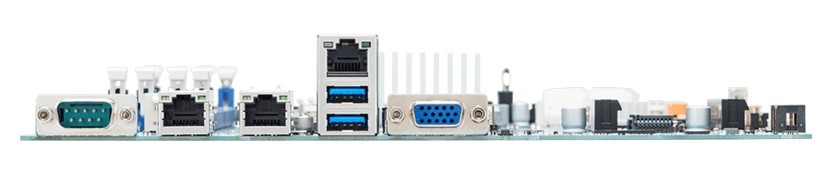

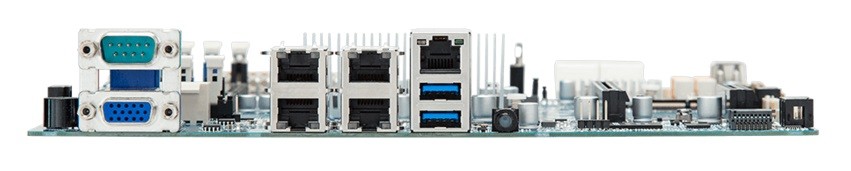

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St, 4 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.0 | 2 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 2 St | |
Ports (Typ-A-Buchse) | 1 St | |||
USB v3.1 | Key-A Header (20-Pin) | 1 St | ||
Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St, 8 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2012 | wird unterstützt | ||
Windows Server 2016 | wird unterstützt | |||
Linux | Distribution | Linux, Ubuntu 16.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
