Micro-ATX Server Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1700 (H6)
// Intel C262
// 288 Pin DIMM DDR5
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x PCIe x8
// 1 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

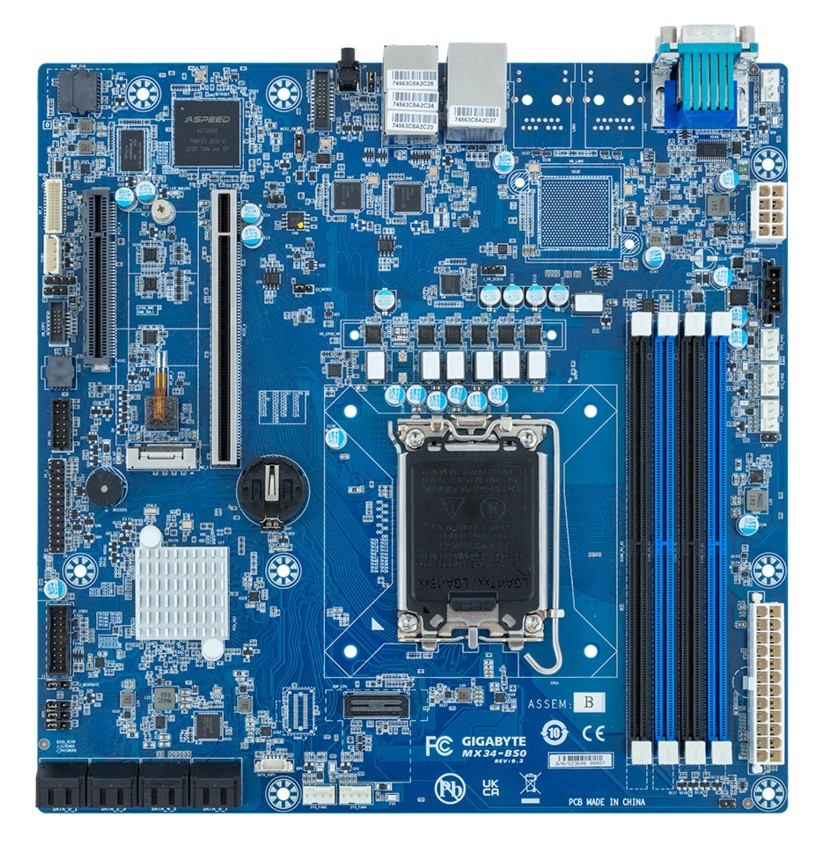

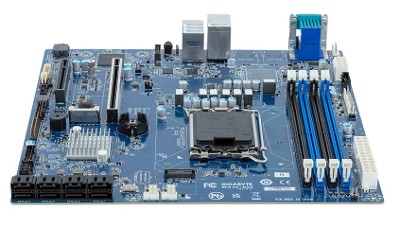

Basismodul: GIGAIPC MX34-BS0
Allgemein | ||||
SKU / Artikelnummer | MX34-BS0 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MX34BS0NR-000-1 | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Alder Lake / Raptor Lake | |||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 95 W | |||
Chipsatz | Intel C262 | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 32 GB | |||
ECC | wird unterstützt | |||
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | Generation | 4 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x8, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | Realtek RTL8211FD (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN | |||

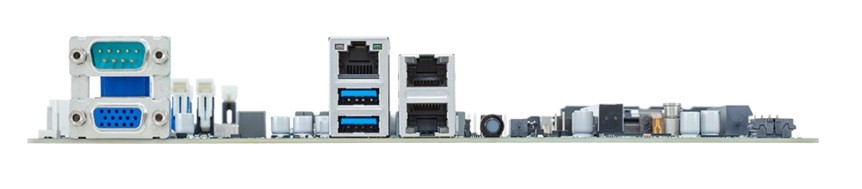

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 2 St | ||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.2 | Key-A Header (20-Pin) | 2 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 8 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 244 mm | |||
Tiefe | 244 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
