Micro-ATX Server Mainboards
// Micro-ATX Industrie-Mainboards
// LGA 1700 (H6)
// Intel C262
// 288 Pin DIMM DDR5
// 3 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// 1 x PCIe x1
// 1 x PCIe x16
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

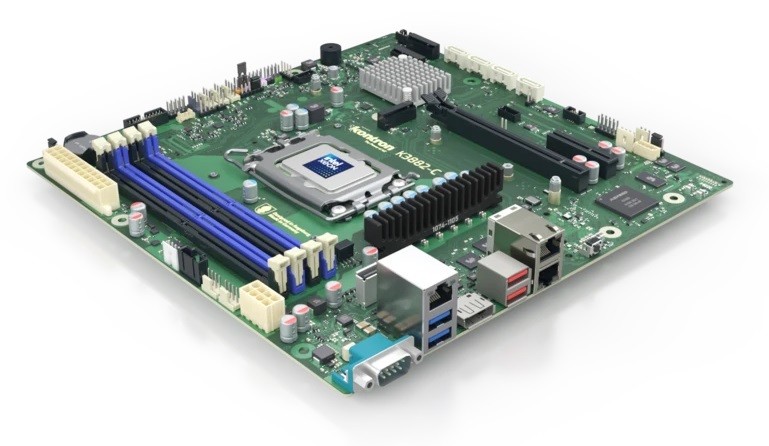

Basismodul: Kontron K3882-C1
Allgemein | ||||
SKU / Artikelnummer | K3882-C1 | |||
Produktgrunddaten | ||||
Hersteller | Kontron | |||
Produkt-ID | F5110-V262 | |||
System | ||||
Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 95 W | |||
Chipsatz | Intel C262 | |||
Speicher | Aufbau | 288 Pin DIMM DDR5 | ||
DIMM Type | ECC Unbuffered DIMM | |||
Frequenz | 5600 MHz | |||
Steckplätze | 4 St | |||
Maximaler Ausbau | 128 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI UEFI Aptio 5.x | |||
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Version | 2.0 | |||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
Erweiterung | ||||
PCIe x1 | Generation | 4 | ||
x1 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x1, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2230, 2280, 22110 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280, 22110 | |||
Slot 3 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | Realtek RTL8211F (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN | |||

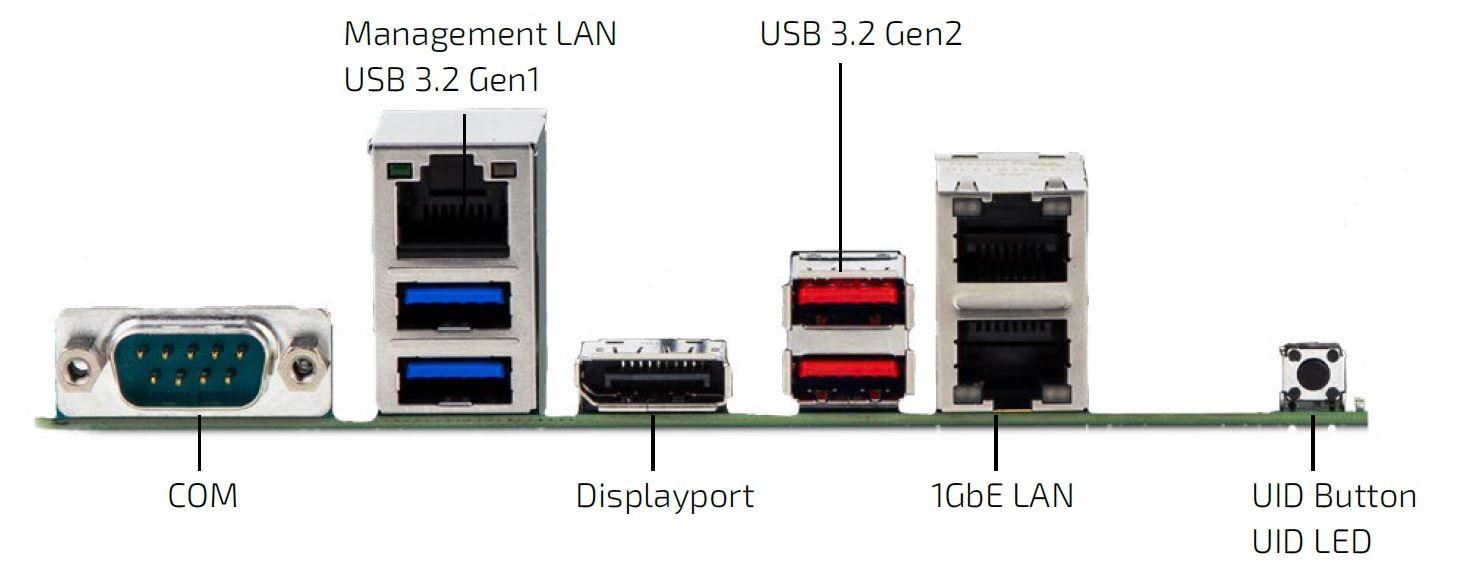

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit OOB | 1 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.2 (Gen 1) | 2 St | ||
USB v3.2 (Gen 2) | 2 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 1 St | |
USB v3.2 | Key-A Header (20-Pin) | 1 St | ||
Generation | Gen. 1 | |||
Digital I/O | Bits | 8-Bit | 1 St | |
SMBus | 3 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Intel PTT (wie TPM 2.0) | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Betriebssysteme / Software | ||||
Windows | Windows Server 2022 | wird unterstützt | ||
Windows Server 2025 | wird unterstützt | |||
Linux | Distribution | Ubuntu 24.04 | ||
Unterstützte BS | Windows, Linux | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Abmaße | Formfaktor | Micro-ATX | ||
Breite | 243,8 mm | |||
Tiefe | 243,8 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | IEC 62368-1, UKCA | |||
RoHS konform | Ja |
