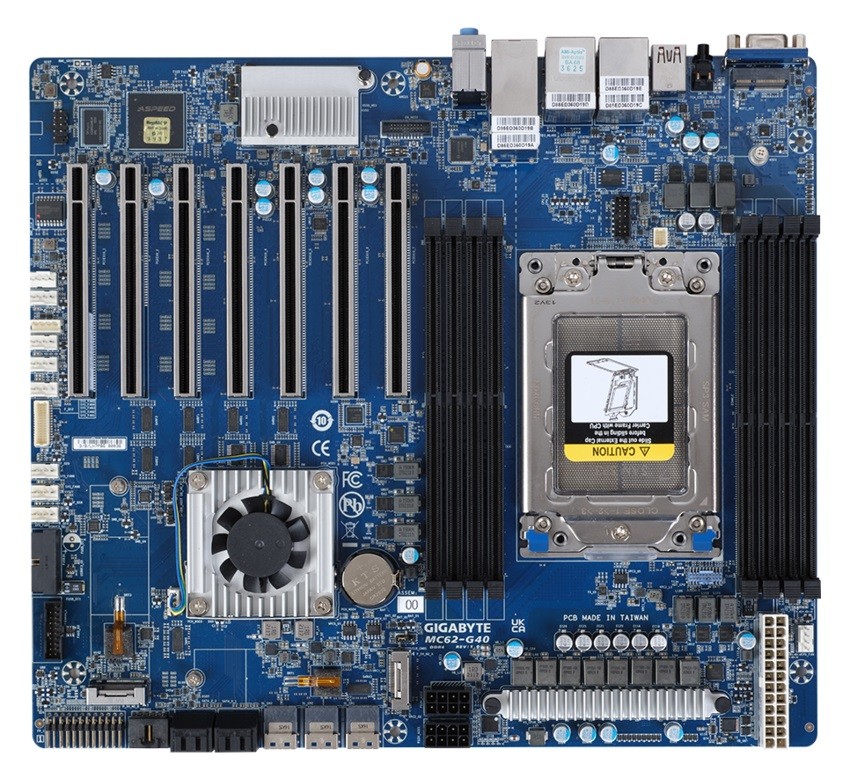

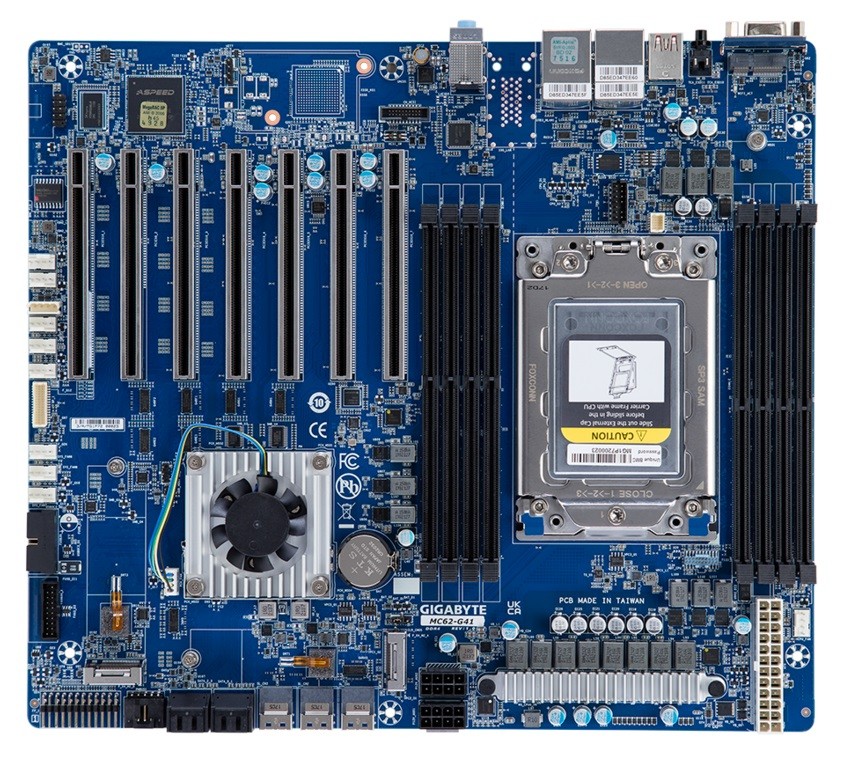

SSI CEB Mainboard
// CEB Industrie-Mainboards
// sWRX8
// AMD WRX80
// 288 Pin DIMM DDR4
// [1 | 3] x G-LAN (Back side)
// 6 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// 7 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: GIGAIPC MC62
Allgemein | ||||
SKU / Artikelnummer | MC62 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 9MC62G40NR-00-1, 9MC62G41NR-00-1 | |||
System | ||||
Prozessor | Serie | AMD Ryzen Threadripper PRO 3000 WX/5000 WX | ||
Sockel | sWRX8 | |||
Chipsatz | AMD WRX80 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Type | ECC Unbuffered DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 8 St | |||
Maximaler Ausbau | 2048 GB | |||
IPMI | IPMI-Controller | Aspeed AST2600 BMC | ||
Grafik | ||||
Prozessor | Aspeed AST2600 BMC | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x8 Signal | Generation | 4 | |
Anzahl | 1 St | |||
x16 Signal | Generation | 4 | ||
Anzahl | 6 St | |||
PCIe Schnittstellen | 7x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 4), SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4), SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 3 | Key ID | E | ||
Interface | WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC4080 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | -, Intel X550-AT2 (10 Gbps) | |
Anzahl | 1 St, - | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | Realtek RTL8211E (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

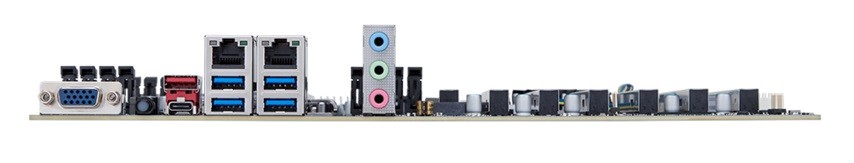

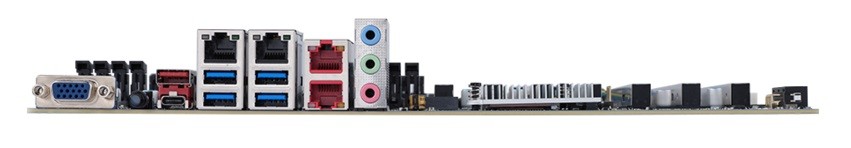

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St, 3 St | ||
USB | USB v3.2 (Gen 2, Type A) | 5 St | ||
USB v3.2 (Gen 2, Type C) | 1 St | |||
Console | RJ45 Anschluss | |||
Interne I/O | ||||
USB | USB v3.2 | Key-A Header (20-Pin) | 2 St | |
Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
Mini Cool Edge IO (MCIO) | 4i | 4 St | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |
Stromversorgung - Eingang | ATX: 2 x 8-Pin ATX (12V DC), 24-Pin ATX | |||
PMBus Stecker | Ja | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux, Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 10° bis 40°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
Lagerung | 20 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | CEB | ||
Breite | 305 mm | |||
Tiefe | 267 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
