SSI EEB Mainboard
// EEB Industrie-Mainboards
// LGA 3647 (P3)
// LGA 3647 (P3)
// Intel C621
// 288 Pin Registered DIMM DDR4 mit ECC
// 2 x G-LAN
// 8 x USB
// 5 x USB (internal)
// 1 x Seriell I/O
// 7 x PCIe x16
// Power Supply ATX
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

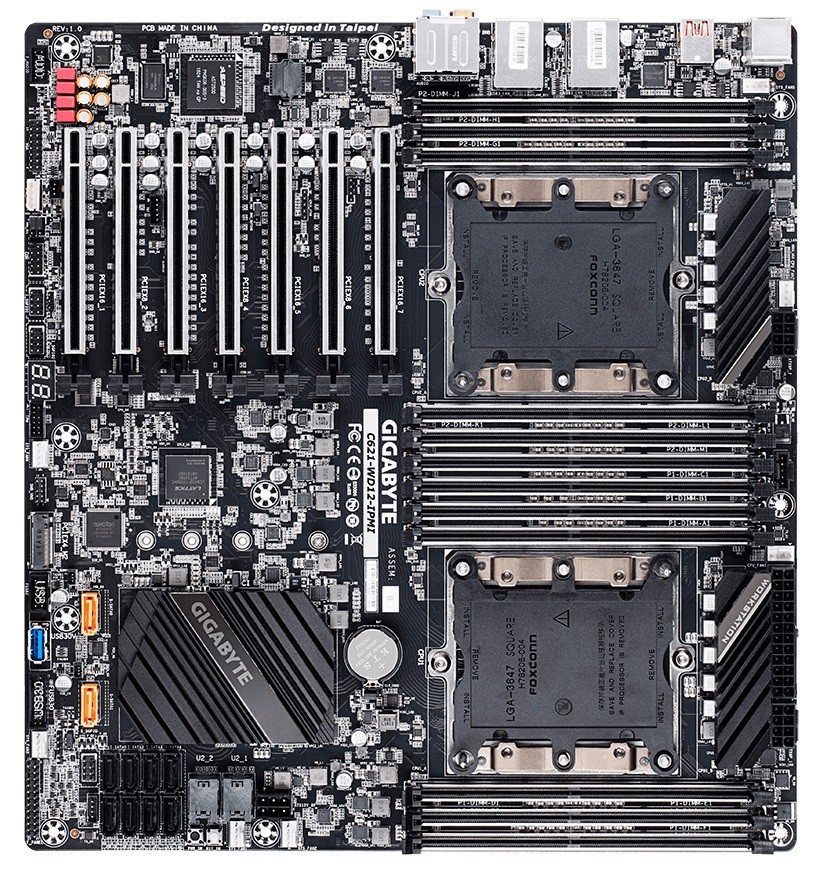

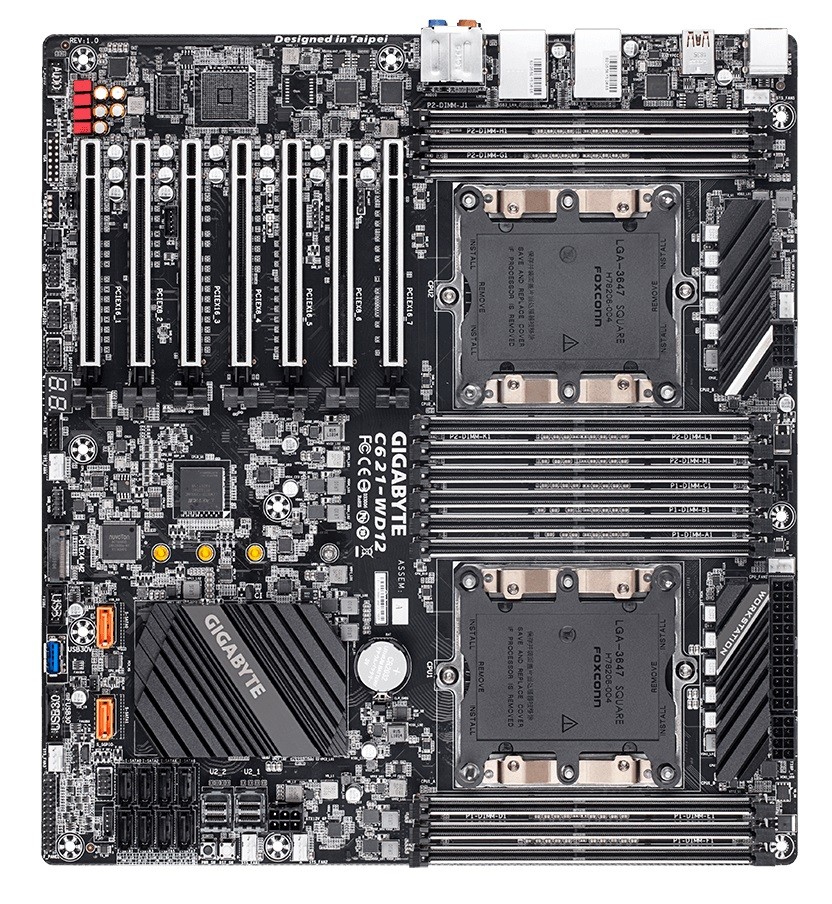

Basismodul: GIGAIPC C621
| Allgemein | ||||
| SKU / Artikelnummer | C621 | |||
| Produktgrunddaten | ||||
| Hersteller | GIGAIPC | |||
| Produkt-ID | 9M621W12P-00-10, 9M621WD12-00-10 | |||
| System | ||||
| Prozessor | Vertikales Segment | Server | ||
| Serie | Intel Cascadelake (Purley Refresh) | |||
| Sockel | LGA 3647 (P3) | |||
| Mehrprozessorsystem | Dual-Prozessor | |||
| Thermal Design Power (TDP) | 205 W | |||
| Prozessor 2 | Vertikales Segment | Server | ||
| Serie | Intel Cascadelake (Purley Refresh) | |||
| Sockel | LGA 3647 (P3) | |||
| Mehrprozessorsystem | Dual-Prozessor | |||
| Thermal Design Power (TDP) | 205 W | |||
| Chipsatz | Intel C621 | |||
| Speicher | Aufbau | 288 Pin Registered DIMM DDR4 mit ECC | ||
| Memory Type | DDR4 | |||
| DIMM Type | Registered DIMM | |||
| Frequenz | 2933 MHz | |||
| Steckplätze | 12 St | |||
| Maximaler Ausbau | 1536 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| IPMI | IPMI-Controller | -, Aspeed AST2500 BMC | ||
| Version | 2.0, - | |||
| Grafik | ||||
| Prozessor | -, Aspeed AST2500 BMC | |||
| Erweiterung | ||||
| PCIe x16 | x8 Signal | Generation | 3 | |
| Anzahl | 3 St | |||
| x16 Signal | Generation | 3 | ||
| Anzahl | 4 St | |||
| PCIe Schnittstellen | 7x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×2, PCIe ×4, SATA III | |||
| Unterstütze Abmaße | 2242, 2260, 2280 | |||
| M.2 Key IDs | M | |||
| U.2 | Slot 1 | Anschluss | SlimSAS | |
| Slot 2 | Anschluss | SlimSAS | ||
| Storage | M.2, SATA DOM, U.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC1220 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

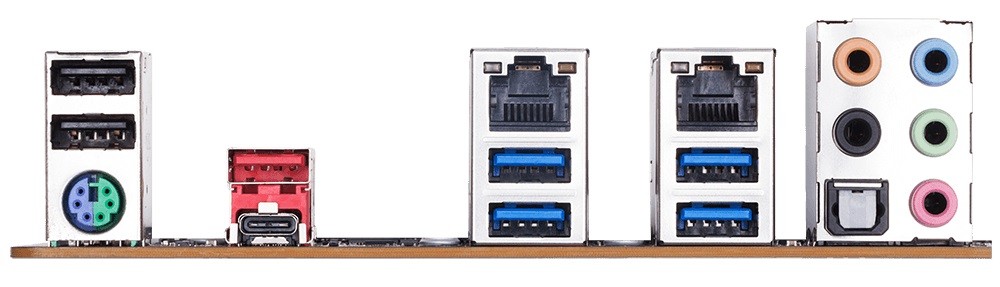

| Externe I/O | ||||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 2 St | ||
| USB v3.1 Gen. 2 | 5 St | |||
| USB v3.1 (Gen 2, Type C) | 1 St | |||
| PS/2 | mini-DIN-6 | 2 St | ||
| Audio | Line-In | 1 St | ||
| Line-Out | 1 St | |||
| Speaker-Out | 2 St | |||
| Mic-In | 1 St | |||
| S/PDIF | 1 St | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.00 mm Pitch) | 2 St | |
| USB v3.1 | Ports (2.00 mm Pitch) | 2 St | ||
| Ports (Typ-A-Buchse) | 1 St | |||
| Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
| Anzeige | VGA (2.54 mm Pitch) | 1 St, - | ||
| UART | Tx/Rx | 1 St | ||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 10 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 6-Pin ATX (12V DC), 8-Pin ATX (12V DC), 24-Pin ATX | |
| Stromversorgung - Eingang | ATX: 6-Pin ATX (12V DC), 8-Pin ATX (12V DC), 24-Pin ATX | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 10° bis 40°C | ||
| Lagerung | -40° bis 60°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 8 bis 80%, nicht kondensierend | ||
| Lagerung | 20 bis 95%, nicht kondensierend | |||
| Abmaße | Formfaktor | EEB | ||
| Breite | 305 mm | |||
| Tiefe | 330 mm | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, IEC 60950-1 | |||
| RoHS konform | Ja | |||
