PICMG 1.3 (PCIe/PCI Bus)
// PICMG 1.3 Industrie-Mainboards
// LGA 1200 (H5)
// Intel W480E
// 288 Pin DIMM DDR4
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 8 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCI
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

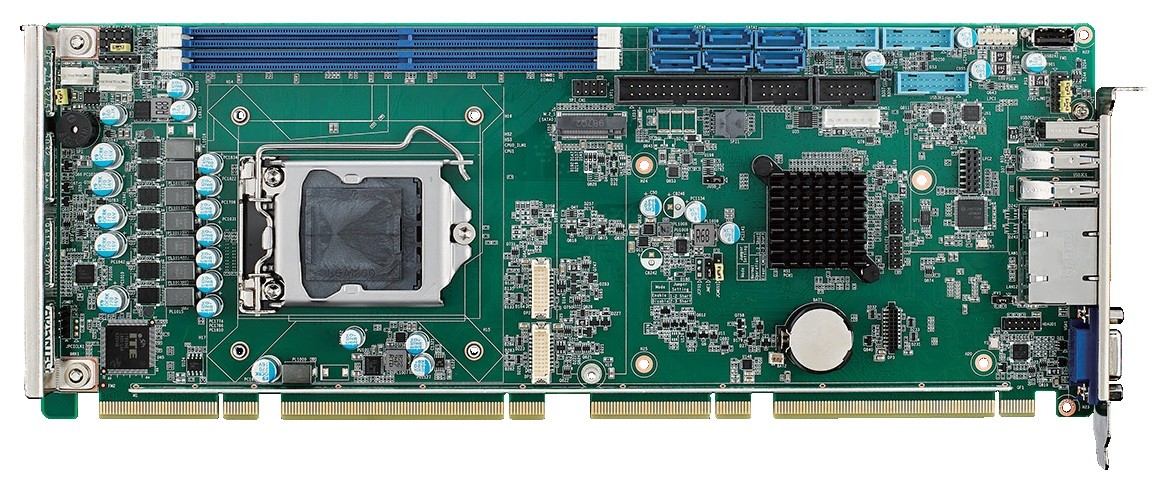

Basismodul: Advantech PCE-7132
Allgemein | ||||
SKU / Artikelnummer | PCE-7132 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | PCE-7132G2-00A2 | |||
System | ||||
Prozessor | Serie | Intel Comet Lake | ||
Sockel | LGA 1200 (H5) | |||
Thermal Design Power (TDP) | 125 W | |||
Chipsatz | Intel W480E | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
DIMM Type | Unbuffered DIMM | |||
Frequenz | 2666 / 2933 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird unterstützt | |||
BIOS | AMI SPI 256 Mbit | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6776D | |
Grafik | ||||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 2048 x 1152 bei 60 Hz | ||
DVI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCI | Anzahl | 4 St | ||
PCI Schnittstellen | 4x PCI | |||
PCIe x4 | x4 Signal (Interface) | 1 St | ||
PCIe x8 | x8 Signal (Interface) | 2 St | ||
PCIe x16 | x16 Signal | Anzahl (Interface) | 1 St | |
PCIe Schnittstellen | 1x PCIe x4, 2x PCIe x8, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Unterstützt High Definition Audio Schnittstelle | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

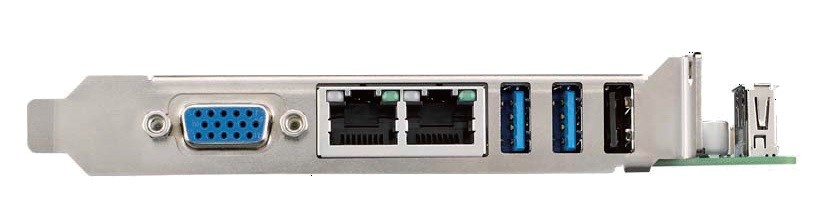

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.2 (Gen 2) | 2 St | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 4 St | |
Ports (Typ-A-Buchse) | 1 St | |||
USB v3.2 | Key-A Header (20-Pin) | 3 St | ||
Seriell | RS-232 | Ports (2.54 mm Pitch) | 2 St | |
Anzeige | Display Port (Golden Finger) | 1 St | ||
DVI-D (2.00 mm Pitch) | 1 St | |||
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Infrarot | wird unterstützt | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | TPM header | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 85%, nicht kondensierend | ||
Lagerung | 0 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | PICMG 1.3 | ||
Breite | 338 mm | |||
Tiefe | 122 mm | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
