PICMG 1.3 (PCIe/PCI Bus)
// PICMG 1.3 Industrie-Mainboards
// LGA 1151 (H4)
// Intel C246
// 288 Pin DIMM DDR4
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 9 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 4 x PCIe x1
// Power Supply ATX
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

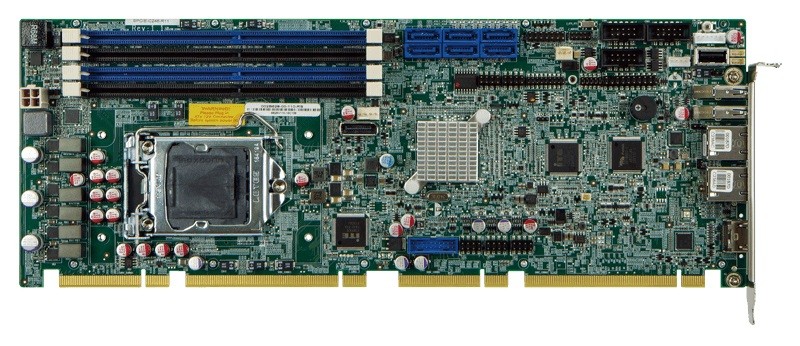

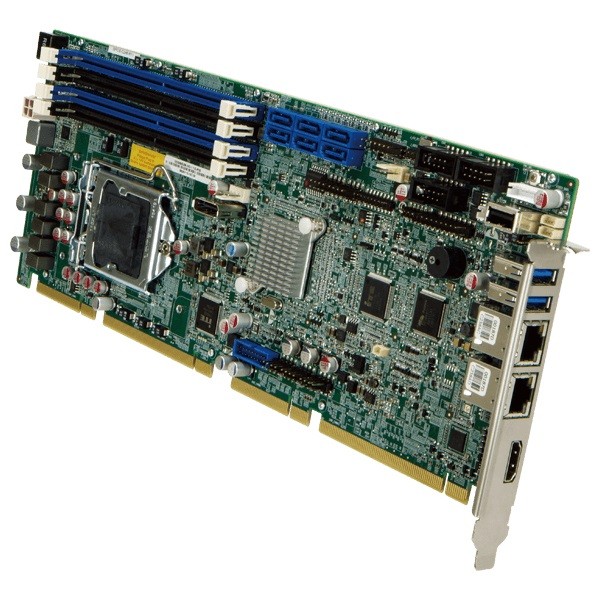

Basismodul: IEI SPCIE-C246
| Allgemein | ||||
| SKU / Artikelnummer | SPCIE-C246 | |||
| Produktgrunddaten | ||||
| Hersteller | IEI | |||
| System | ||||
| Prozessor | Serie | Intel Coffee Lake | ||
| Sockel | LGA 1151 (H4) | |||
| Chipsatz | Intel C246 | |||
| Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 2666 MHz | |||
| Steckplätze | 4 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird unterstützt | |||
| BIOS | AMI BIOS | |||
| I/O Controller | Controller 1 | I/O Controller | ITE IT8528E / FX | |
| Controller 2 | I/O Controller | Fintek F81966D-I | ||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2304 bei 30 Hz | ||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Erweiterung | ||||
| PCI | Interface | 4 St | ||
| PCIe x1 | x1 Signal (Interface) | 4 St | ||
| PCIe x16 | x16 Signal | Anzahl (Interface) | 1 St | |
| PCIe Schnittstellen | 4x PCIe x1, 1x PCIe x16 | |||

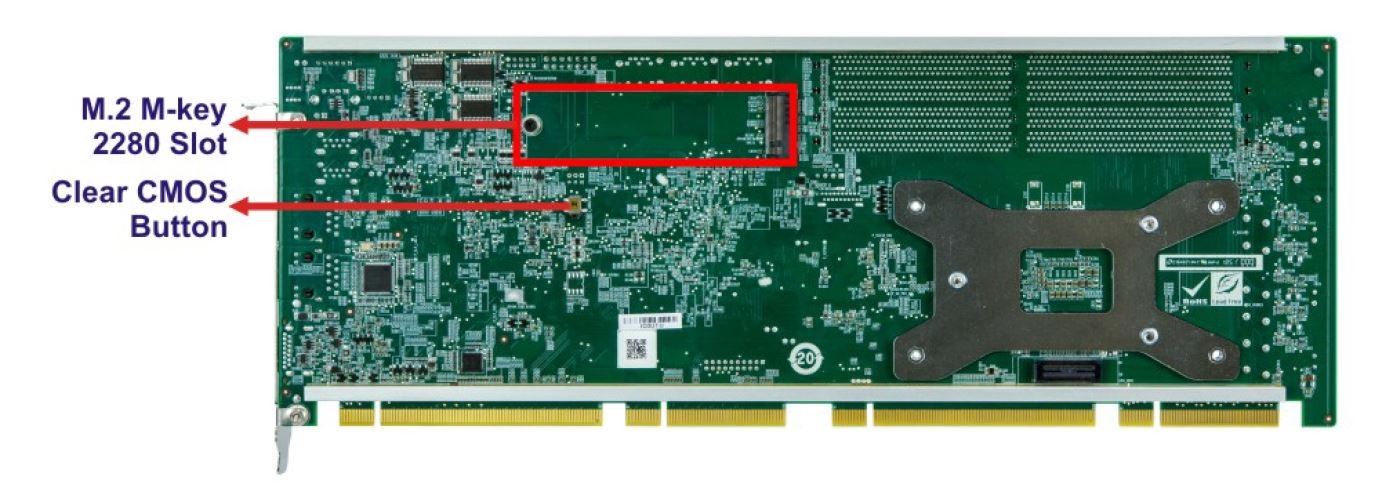

| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen. 3) | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Unterstützt High Definition Audio Schnittstelle | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Active Management Technology (AMT) Version | 11.0 | |||
| Netzwerk | 2x G-LAN | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v3.2 (Gen 1) | 2 St | ||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (2.54 mm Pitch) | 6 St | |
| Ports (Typ-A-Buchse) | 1 St | |||
| USB v3.2 | Key-A Header (20-Pin) | 2 St | ||
| PS/2 | Stiftleiste | 1 St | ||
| Seriell | RS-232 | Ports (2.54 mm Pitch) | 3 St | |
| RS-422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
| Anzeige | Display Port (Golden Finger) | 1 St | ||
| Digital I/O | Bits | 8-Bit | 1 St | |
| SMBus | 1 St | |||
| I²C | 1 St | |||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 6 St | ||
| Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
| RAID Unterstützung | RAID 0/1/5/10 | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | TPM header | |||
| Stromversorgung | ||||
| Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC) | |
| Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC) | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -20° bis 60°C | ||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | PICMG 1.3 | ||
| Breite | 338 mm | |||
| Tiefe | 126 mm | |||
| Gewicht | 500 g | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
Gerne beraten wir Sie persönlich.
