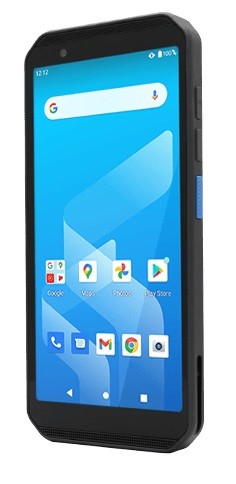

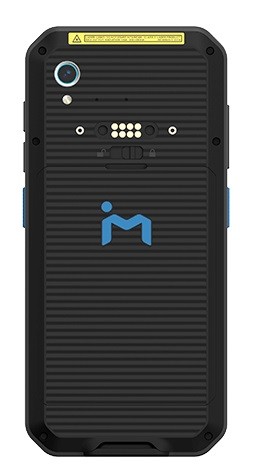

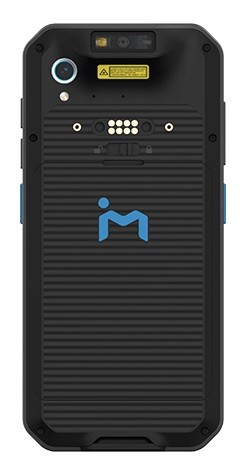

Rugged Handheld Computer
// 6" TFT-LCD
// Qualcomm QCM4490
// Touchscreen (Kapazitiv)
// IP68
// 6 GB
// 1 x USB (Back side)
// 128 GB eMMC
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate TC605
Allgemein | ||||
SKU / Artikelnummer | TC605 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Nummer | Qualcomm QCM4490 | ||
CPU Kerne | 8 St | |||
Max. Turbo-Taktfrequenz | 2,4 GHz | |||
Speicher | Speicher onBoard | 6 GB | ||
Storage | Embedded MultiMedia Card (eMMC) | 128 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 128 GB | |||
Display | ||||
Display Type | 6" TFT-LCD | |||
Max. Auflösung | 2160 x 1080 | |||
Seitenverhältnis | 2 : 1 | |||
Leuchtdichte | 600 cd/m² | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Audio | Lautsprecher | 1 St | ||
Display Audio - Mikrofon | 2 St | |||
Erweiterung | ||||
SIM | Anzahl | 2 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | Micro-SD | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac/ax | |
Bluetooth | Versions / Features | v5.2 | ||
RFID | Standards / Mode | 13.56 MHz (ISO 14443 A/B, FeliCa) | ||
Mobilfunknetz | GNSS | GLONASS, GPS | ||
Netzwerk | Wi-Fi, Bluetooth, RFID | |||
Externe I/O (Frontseite) | ||||
Barcode Scanner | Ja | |||
Externe I/O (Rückseite) | ||||
USB | USBOTG (USB On-The-Go) | 1 St | ||
Sensor | ||||
3D Sensor | 3D Accelerometer, 3D Gyroscope | |||
E-Compass | Ja | |||
Lichtsensor | Ja | |||
Näherungssensor | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Anschluss | USB Type C | |
Batterie | Type | 3.7V 5000 mAh | ||
Batteriebetriebszeit | Standard | 15 h | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 50°C | ||
Lagerung | -40° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 6" | ||
Breite | 167,7 mm | |||
Tiefe | 15,8 mm | |||
Höhe | 78,9 mm | |||
Schutzart (IP) | IP68 | |||
Vibration | Referenz Standard | MIL-STD-810H Method 514.8 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | ||
Sturzprüfung | Referenz Standard | MIL-STD-810H Method 516.8 | ||
Fallhöhe | 1,8 m | |||
Gewicht | 280 g | |||
Kamera | Front | Auflösung | 8 MP | |
Rückseite | Auflösung | 16 MP | ||
Autofocus | Ja | |||
LED Lampe | Ja | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | System Status | 1 St | ||
Farbe | Schwarz | |||
Coating | Beschichtung | Ja | ||
Material | Blendschutzglas | |||
Betriebssysteme / Software | ||||
Android | Release | 13 | ||
Unterstützte BS | Android | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, NCC, RCM, SOTI MobiControl Compliance, TELEC | |||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
