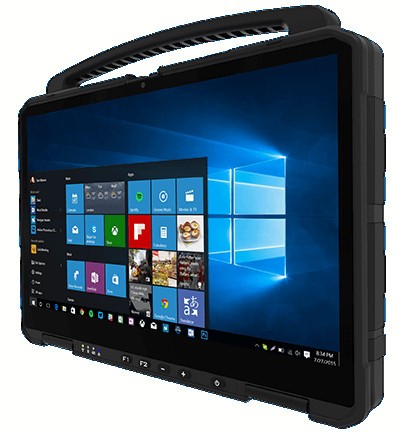

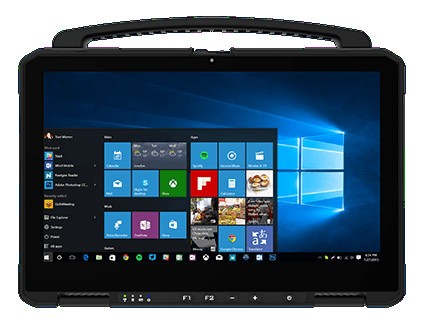

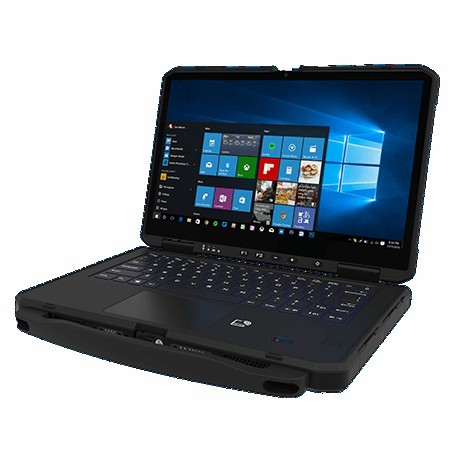

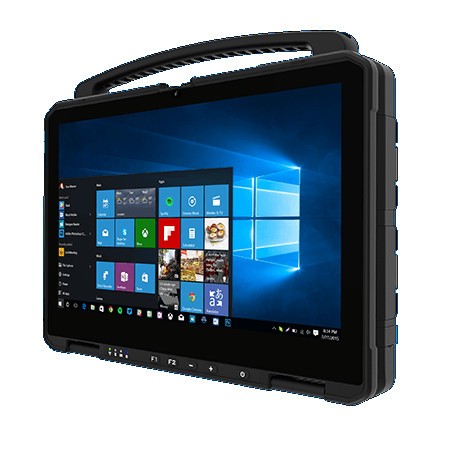

Rugged Laptops
Produkt ist EOL (End Of Life)!
// [13,3" TFT-LCD | 14" TFT-LCD]
// Intel Core i5-1135G7
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// 260 Pin SO-DIMM DDR4
// 256 GB SSD (M.2)
// 1 x G-LAN (Front page)
// 5 x USB (Front page)
// Power Supply DC 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate L140TG
Allgemein | ||||
SKU / Artikelnummer | L140TG | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i5-1135G7 | |||
CPU Kerne | 4 St | |||
Threads | 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 2,4 GHz | |||
Max. Turbo-Taktfrequenz | 4,2 GHz | |||
Cache | 8 MB | |||
Thermal Design Power (TDP) | 28 W | |||
Lithographie | 10 nm | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
IC Data Rate | 2133 MHz | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 8 GB | |||
Storage | Solid State Drive (M.2) | 256 GB | ||
Storage | Solid State Drive (M.2) 256 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0 | |||
Display | ||||
Display Type | 13,3" TFT-LCD, 14" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 800:1, 1000:1 | |||
Leuchtdichte | 500 cd/m², 700 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 °, 89 ° | ||
Vertikal | 85 °, 89 ° | |||
Touchscreen | Typ | Kapazitiv | ||
Multitouch | 2-Punkt | |||
Erweiterung | ||||
SIM | Formfaktor (Slot) | Nano SIM | ||
Storage | Micro-SDXC | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac/ax | |
Netzwerk | Wi-Fi | |||
Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v3.0 | 3 St | ||
USB v3.0 (Type C) | 1 St | |||
USB v3.1 (Gen 2, Type C) | 1 St | |||
Sensor | ||||
3D Sensor | 3D Gyroscope | |||
Lichtsensor | Ja | |||
Vibrationssensor | Ja | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 19V | |
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19V | |||
Batterie | Type | 2 x 10.8V typ. 2400 mAh LiPolymer-Akku | ||
Batteriebetriebszeit | Standard | 8 h | ||
Hotswap-fähig | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Lagerung | 10 bis 90%, nicht kondensierend | |||
Abmaße | Breite | 340 mm | ||
Tiefe | 230 mm | |||
Höhe | 38 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810H Method 514.8 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | ||
Sturzprüfung | Referenz Standard | MIL-STD-810H Method 516.8 | ||
Fallhöhe | 0,91 m | |||
Gewicht | 2550 g | |||
Kamera | Front | Auflösung | 2 MP | |
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
RF | 1 St | |||
Batterie | 1 St | |||
Docking-Anschluss | 1 x 19 Pin Docking-Anschluss | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 62368-1 | |||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
