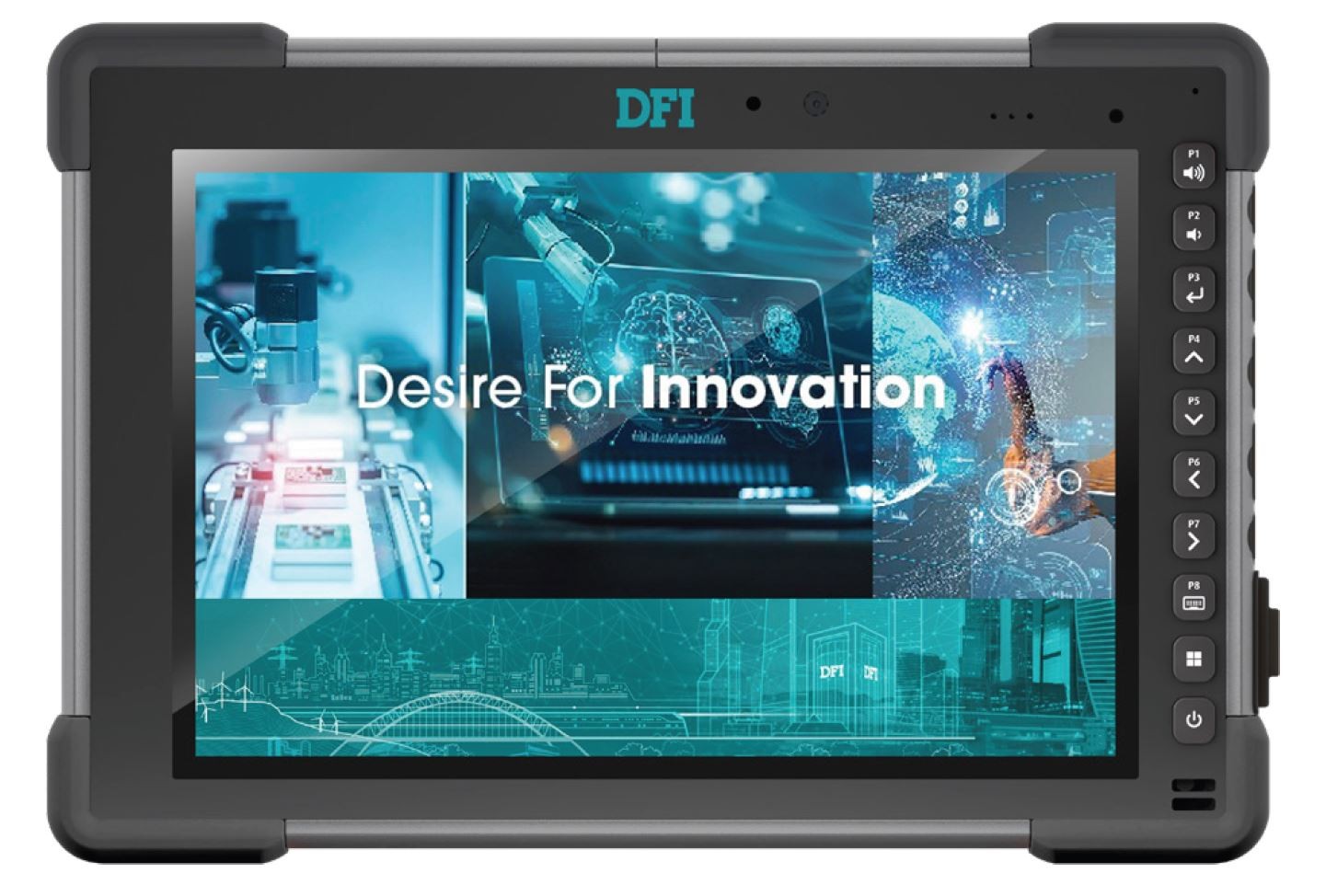

Rugged Tablets
// 10,1" TFT-LCD
// [Intel Celeron 6305E | Intel Core i5-1145GRE | Intel Core i7-1185GRE]
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// [8 GB | 16 GB]
// [128 GB | 256 GB] SSD
// 3 x USB (Back side)
// Power Supply DC 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI JUR101-TGU
Allgemein | ||||
SKU / Artikelnummer | JUR101-TGU | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Celeron 6305E, Intel Core i5-1145GRE, Intel Core i7-1185GRE | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 8 St | |||
Basis Frequenz | 1,5 GHz, 1,8 GHz | |||
Max. Turbo-Taktfrequenz | 4,1 GHz, 4,4 GHz, - | |||
Cache | 4 MB, 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 8 GB, 16 GB | |||
Storage | Solid State Drive (SSD) | 128 GB, 256 GB | ||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
Display | ||||
Display Type | 10,1" TFT-LCD | |||
Max. Auflösung | 1920 x 1200 | |||
Seitenverhältnis | 8 : 5 | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 800 cd/m² | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Lebensdauer | 30000 h | |||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
Storage | Micro-SD | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac | |
Bluetooth | Versions / Features | v5.1 | ||
Netzwerk | Bluetooth, Wi-Fi | |||

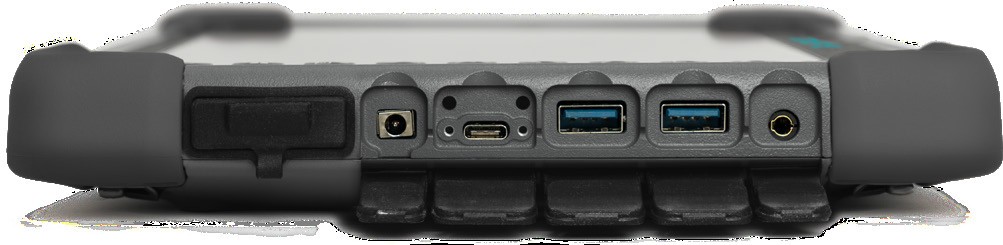

Externe I/O (Rückseite) | ||||
Audio | Speaker-Out | 1 St | ||
USB | USB v3.0 (Type C) | 1 St | ||
USB v3.1 Gen. 1 | 2 St | |||
Sensor | ||||
3D Sensor | 3D Accelerometer, 3D Gyroscope | |||
E-Compass | Ja | |||
Lichtsensor | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19V | |||
Batterie | Hotswap-fähig | Ja | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 10,1" | ||
Breite | 285 mm | |||
Tiefe | 195 mm | |||
Höhe | 30,5 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810H | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 | ||
Gewicht | 1760 g | |||
Kamera | Front | Auflösung | 2 MP | |
Rückseite | Auflösung | 13 MP | ||
LED Lampe | Ja | |||
Bedienelemente | Power | 1 St | ||
Betriebssysteme / Software | ||||
Windows | Windows 11 | -, Wird unterstützt | ||
Windows Embedded | Windows 11 IoT | -, wird unterstützt | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
