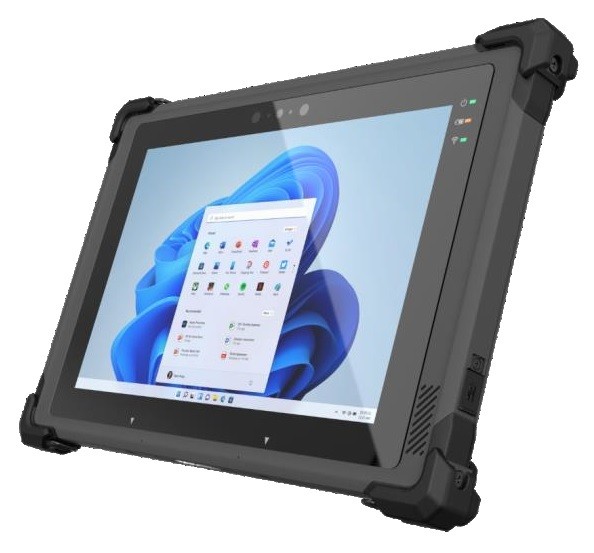

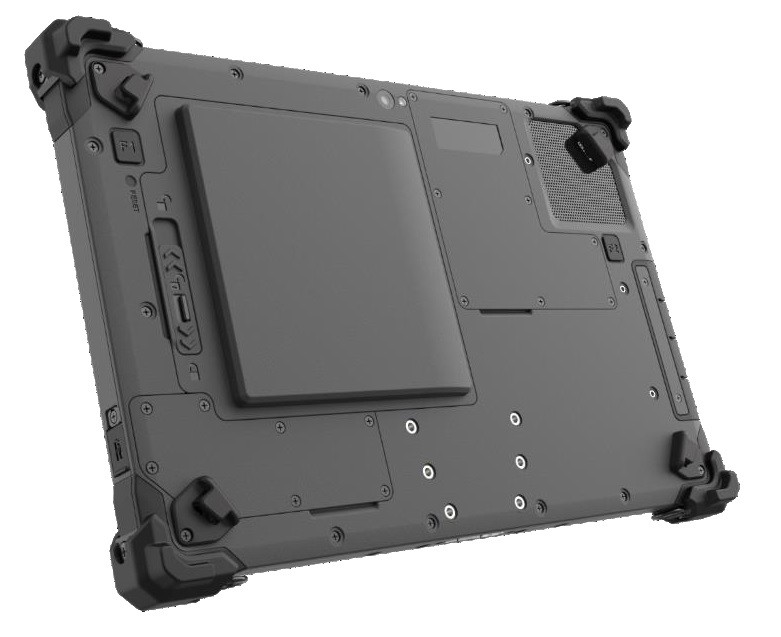

Rugged Tablets
// 10,1" TFT-LCD
// Intel Core i5-1335U
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// 8 GB
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// Power Supply DC 20V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: MSI ND82
Allgemein | ||||
SKU / Artikelnummer | ND82 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Raptor Lake | |||
Nummer | Intel Core i5-1335U | |||
CPU Kerne | 10 St | |||
Threads | 12 St | |||
Sockel | BGA 1744 | |||
Max. Turbo-Taktfrequenz | 4,6 GHz | |||
Performance-core Max Turbo Frequenz | 4,6 GHz | |||
Efficient-core Max Turbo Frequenz | 3,4 GHz | |||
Cache | 12 MB | |||
Grundleistungsaufnahme des Prozessors | 15 W | |||
Maximale Turbo-Leistungsaufnahme | 55 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR5 | ||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 8 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Display | ||||
Display Type | 10,1" TFT-LCD | |||
Max. Auflösung | 1920 x 1200 | |||
Seitenverhältnis | 8 : 5 | |||
Leuchtdichte | 800 cd/m² | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Multitouch | 10-Punkt | |||
Audio | Lautsprecher | 1 St | ||
Leistung | 2 W | |||
Erweiterung | ||||
Storage | Micro-SDXC | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac/ax | |
Bluetooth | Versions / Features | v5.3 | ||
Netzwerk | Wi-Fi, Bluetooth | |||
Externe I/O (Rückseite) | ||||
Anzeige | DP USB-C | 1 St | ||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.0 (Type C) | 1 St | ||
USB v3.1 Gen. 2 | 1 St | |||
USB v3.1 (Gen 2, Type C) | 1 St | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Sensor | ||||
3D Sensor | 3D Accelerometer, 3D Gyroscope | |||
E-Compass | Ja | |||
Lichtsensor | Ja | |||
Näherungssensor | Ja | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 20V | |
Anschluss | USB Type C | |||
Stromstärke | 3,25 A | |||
Stromversorgung - Eingang | DC: 20V | |||
Batterie | Type | 7.68V typ. 8340 mAh Li-Polymer-Akku | ||
Batteriebetriebszeit | Standard | 8 h | ||
Hotswap-fähig | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Abmaße | Formfaktor | 10,1" | ||
Breite | 293 mm | |||
Tiefe | 17 mm | |||
Höhe | 192 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810G | ||
Schock | Referenz Standard | MIL-STD-810G | ||
Sturzprüfung | Referenz Standard | MIL-STD-810G | ||
Fallhöhe | 1,5 m | |||
Gewicht | 1150 g | |||
Kamera | Front | Auflösung | 2 MP | |
Rückseite | Auflösung | 8 MP | ||
Autofocus | Ja | |||
LED Lampe | Ja | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
Wi-Fi | 1 St | |||
Batterie | 1 St | |||
Docking-Anschluss | 1 x 19 Pin Docking-Anschluss | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 IoT Core | wird unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Unterstützte BS | Windows, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
