Rugged Tablets
// 14" TFT-LCD
// Intel Core i5-1135G7
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 128 GB SSD
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// Power Supply DC 19V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate M140TGT
Allgemein | ||||
SKU / Artikelnummer | M140TGT | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i5-1135G7 | |||
CPU Kerne | 4 St | |||
Threads | 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 2,4 GHz | |||
Max. Turbo-Taktfrequenz | 4,2 GHz | |||
Cache | 8 MB | |||
Thermal Design Power (TDP) | 28 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (SSD) | 128 GB | ||
Storage | Solid State Drive (SSD) 128 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Display | ||||
Display Type | 14" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 800:1 | |||
Leuchtdichte | 700 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 85 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Erweiterung | ||||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | Micro-SDXC | |||
Netzwerk | ||||
G-LAN | Controller | Anzahl | 1 St | |
Netzwerk | 1x G-LAN | |||

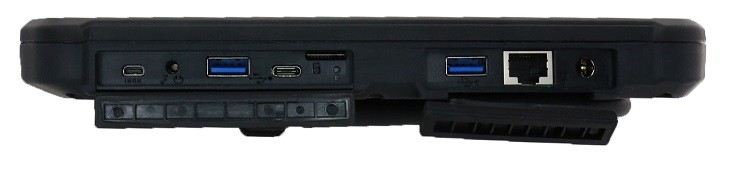

Externe I/O (Rückseite) | ||||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.0 | 2 St | ||
USB v3.0 (Type C) | 1 St | |||
Sensor | ||||
3D Sensor | 3D Gyroscope | |||
Lichtsensor | Ja | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 19V | |
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19V | |||
Batterie | Type | 11.4V, typ. 3500 mAh Li-Polymer-Akku | ||
Hotswap-fähig | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 15" | ||
Breite | 341,91 mm | |||
Tiefe | 224,67 mm | |||
Höhe | 25,4 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810H Method 514.8 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | ||
Sturzprüfung | Referenz Standard | MIL-STD-810H Method 516.8 | ||
Fallhöhe | 1,2 m | |||
Gewicht | 1750 g | |||
Kamera | Front | Auflösung | 2 MP | |
Rückseite | Auflösung | 8 MP | ||
Autofocus | Ja | |||
LED Lampe | Ja | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
RF | 1 St | |||
Batterie | 1 St | |||

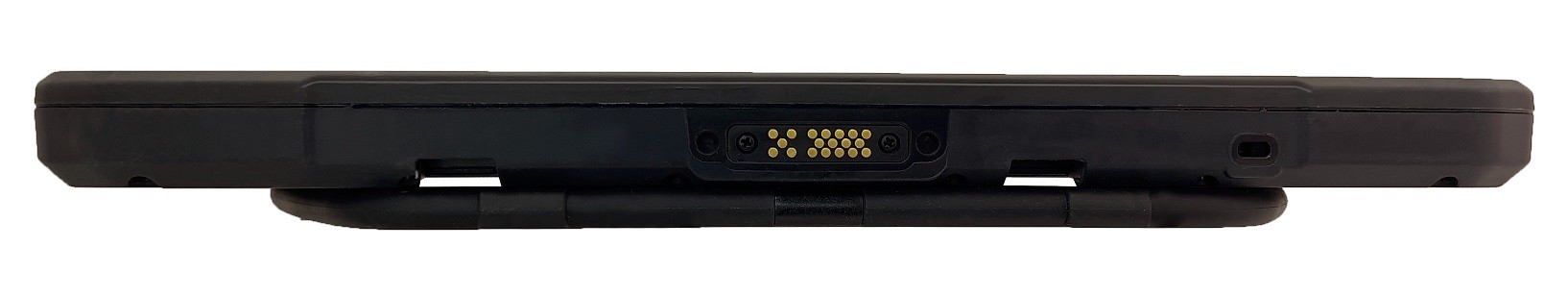

Docking-Anschluss | 1 x 19 Pin Docking-Anschluss | |||
Coating | Beschichtung | Ja | ||
Material | Blendschutzglas | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | |||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | SOTI MobiControl Compliance | |||
RoHS konform | Ja |
