Rugged Tablets
Produkt ist EOL (End Of Life)!
// 15,6" TFT-LCD
// Intel Core i5-1235U
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// 262 Pin SO-DIMM DDR5
// 256 GB SSD (NVMe)
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 19V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

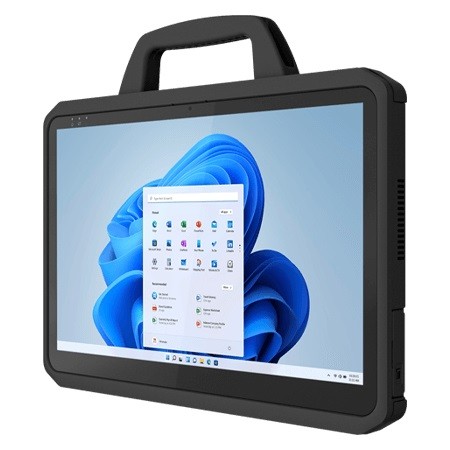

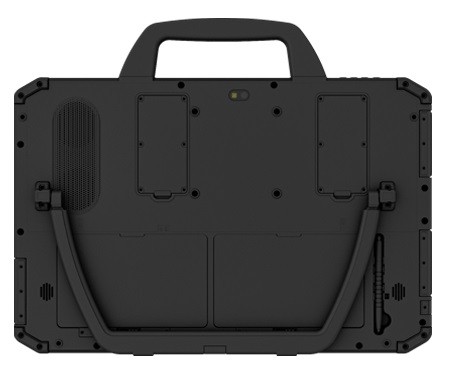

Basismodul: Winmate M156AD-M1
Allgemein | ||||
SKU / Artikelnummer | M156AD-M1 | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Core i5-1235U | |||
CPU Kerne | 10 St | |||
Threads | 12 St | |||
Sockel | BGA 1744 | |||
Max. Turbo-Taktfrequenz | 4,4 GHz | |||
Performance-core Max Turbo Frequenz | 4,4 GHz | |||
Efficient-core Max Turbo Frequenz | 3,3 GHz | |||
Cache | 12 MB | |||
Grundleistungsaufnahme des Prozessors | 15 W | |||
Maximale Turbo-Leistungsaufnahme | 55 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Speicher onBoard | 16 GB | |||
Storage | Solid State Drive (NVMe SSD) | 256 GB | ||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Display | ||||
Display Type | 15,6" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 800:1 | |||
Leuchtdichte | 800 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 85 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Audio | Lautsprecher | 2 St | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
Mobile PCI Express Module (MXM) | wird unterstützt | |||
Storage | M.2, Micro-SD (extern) | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac | |
Bluetooth | Versions / Features | v5.0 | ||
Netzwerk | Wi-Fi, Bluetooth | |||
Externe I/O (Rückseite) | ||||
Anzeige | DP USB-C | 1 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.0 | 3 St | ||
USB v3.0 (Type C) | 1 St | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Sensor | ||||
3D Sensor | 3D Gyroscope | |||
Lichtsensor | Ja | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | DC Jack | |||
DC | Anschluss | USB Type C | ||
Stromversorgung - Eingang | DC: 19V | |||
Batterie | Type | 2 x 11,55V typ. 3220 mAh Li-Ion-Akku | ||
Batteriebetriebszeit | Standard | 11 h | ||
Hotswap-fähig | Ja | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 15,6" | ||
Breite | 387,7 mm | |||
Tiefe | 27,5 mm | |||
Höhe | 256,1 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810H Method 514.8 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | ||
Sturzprüfung | Referenz Standard | MIL-STD-810H Method 516.8 | ||
Fallhöhe | 0,9 m | |||
Gewicht | 2800 g | |||
Kamera | Front | Auflösung | 2 MP | |
Rückseite | Auflösung | 8 MP | ||
Autofocus | Ja | |||
LED Lampe | Ja | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Batterie | 1 St | |||
Docking-Anschluss | 1 x 19 Pin Docking-Anschluss | |||
Farbe | Schwarz | |||
Coating | Material | Blendschutzglas | ||
Montageoption | VESA | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | MIL-STD 810F/G, SOTI MobiControl Compliance | |||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
