Rugged Tablets
// 10,1" TFT-LCD
// Intel Core Ultra 5 Prozessor 125U
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// 8 GB
// 256 GB SSD (NVMe)
// 1 x G-LAN (Front page)
// 2 x USB (Front page)
// Power Supply DC 19V
// 20V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

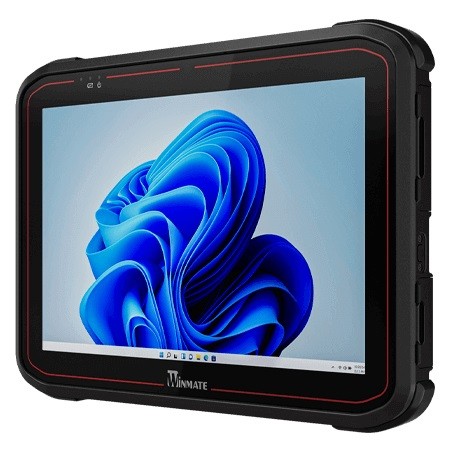

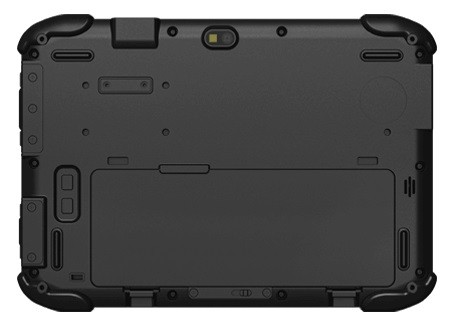

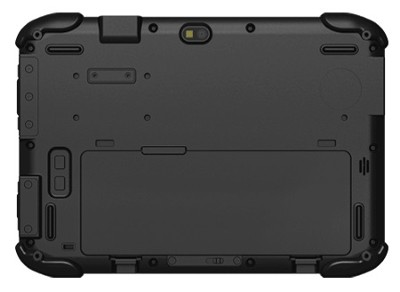

Basismodul: Winmate S101MT
Allgemein | ||||
SKU / Artikelnummer | S101MT | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Meteor Lake | |||
Nummer | Intel Core Ultra 5 Prozessor 125U | |||
CPU Kerne | 12 St | |||
Threads | 14 St | |||
Sockel | BGA 2049 | |||
Performance-core Grundtaktfrequenz | 1,3 GHz | |||
Performance-core Max Turbo Frequenz | 4,3 GHz | |||
Efficient-core Grundtaktfrequenz | 0,8 GHz | |||
Efficient-core Max Turbo Frequenz | 3,6 GHz | |||
Cache | 12 MB | |||
Grundleistungsaufnahme des Prozessors | 15 W | |||
Maximale Turbo-Leistungsaufnahme | 57 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Steckplätze | 1 St | ||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 8 GB | |||
Storage | Solid State Drive (NVMe SSD) | 256 GB | ||
Grafik | ||||
Prozessor | Intel Graphics | |||
Display | ||||
Display Type | 10,1" TFT-LCD | |||
Max. Auflösung | 1920 x 1200 | |||
Seitenverhältnis | 8 : 5 | |||
Kontrast | 800:1 | |||
Leuchtdichte | 800 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 85 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Audio | Lautsprecher | 1 St | ||
Display Audio - Mikrofon | 2 St | |||
Erweiterung | ||||
Storage | M.2, Micro-SDXC | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac | |
Bluetooth | Versions / Features | v5.0 | ||
Netzwerk | Wi-Fi, Bluetooth | |||
Externe I/O (Frontseite) | ||||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.0 | 1 St | ||
USB v3.0 (Type C) | 1 St | |||
SIM Card Slot | 1 St | |||
Sensor | ||||
3D Sensor | 3D Accelerometer, 3D Gyroscope | |||
Lichtsensor | Ja | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 20V | |||
Anschluss | USB Type C | |||
DC | Weitbereich | Nein | ||
Bereich | 19V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 20V,19V | |||
Batterie | Type | 11.4V, typ. 3500 mAh Li-Polymer-Akku | ||
Batteriebetriebszeit | Standard | 10,4 h | ||
Erweitert | 14,8 h | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | 10,1" | ||
Breite | 272 mm | |||
Tiefe | 192 mm | |||
Höhe | 25 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810H Method 514.8 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810H Method 516.8 Procedure I | ||
Sturzprüfung | Referenz Standard | MIL-STD-810H Method 516.8 | ||
Fallhöhe | 1,2 m | |||
Gewicht | 1100 g | |||
Kamera | Front | Auflösung | 2 MP | |
Rückseite | Auflösung | 8 MP | ||
Autofocus | Ja | |||
LED Lampe | Ja | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Docking-Anschluss | 1 x 19 Pin Docking-Anschluss | |||
Farbe | Schwarz | |||
Coating | Beschichtung | Ja | ||
Material | Blendschutzglas | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | SOTI MobiControl Compliance | |||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
