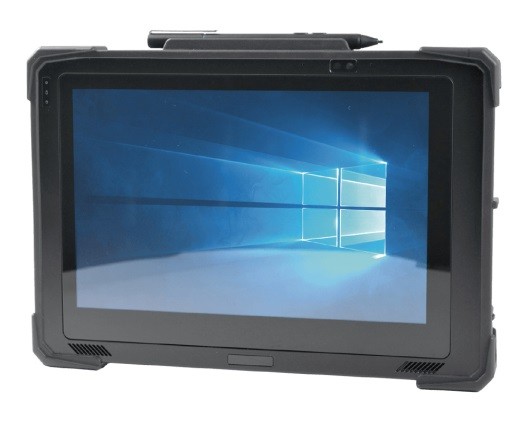

Semi-Rugged Tablets
// 10,1" TFT-LCD
// Intel Pentium N4200
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 1 x G-LAN (Back side)
// 4 x USB (Back side)
// Power Supply DC 12V / 19V / 24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: MSI MS-N0T1
Allgemein | ||||
SKU / Artikelnummer | MS-N0T1 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Pentium N4200 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz | |||
Max. Turbo-Taktfrequenz | 2,5 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Display | ||||
Display Type | 10,1" TFT-LCD | |||
Max. Auflösung | 1280 x 800 | |||
Seitenverhältnis | 8 : 5 | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Audio | Lautsprecher | 2 St | ||
Leistung | 1 W | |||
Erweiterung | ||||
Storage | Micro-SD (extern), SD / MMC-Karte | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n | |
Bluetooth | Versions / Features | v4.2 | ||
Netzwerk | 1x G-LAN, Wi-Fi, Bluetooth | |||

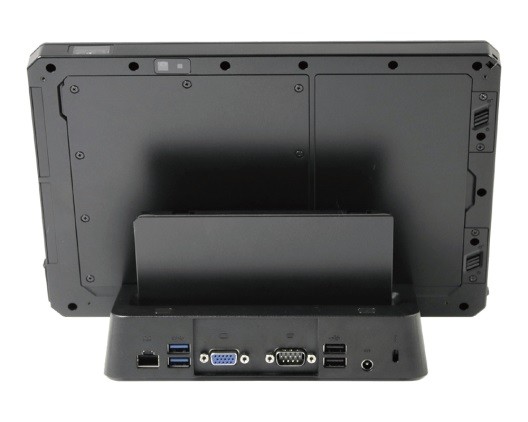

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Micro HDMI | 1 St | |||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
USB v3.0 | 2 St | |||
Sensor | ||||
3D Sensor | 3D Accelerometer, 3D Gyroscope | |||
E-Compass | Ja | |||
Lichtsensor | Ja | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Bereich | 100~240V | |
Einschübe | 1 St | |||
DC | Weitbereich | Nein | ||
Bereich | 12V / 19V / 24V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | AC: 100~240V, DC: 12V / 19V / 24V | |||
Batterie | Batteriebetriebszeit | Standard | 9 h | |
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -20° bis 60°C | |||
Abmaße | Formfaktor | 10,1" | ||
Breite | 279 mm | |||
Tiefe | 192,5 mm | |||
Höhe | 17,9 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Sturzprüfung | Referenz Standard | MIL-STD-810G Method 516.6 | ||
Fallhöhe | 1,2 m | |||
Gewicht | 990 g | |||
Kamera | Front | Auflösung | 2 MP | |
Rückseite | Auflösung | 5 MP | ||
Autofocus | Ja | |||
Bedienelemente | Power | 1 St | ||
Montageoption | VESA | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
Gerne beraten wir Sie persönlich.
