Ultra Rugged Tablets
// 13,3" TFT-LCD
// Intel Core i5-8265U
// Touchscreen (Kapazitiv)
// IP65 (komplett)
// SoC (System-On-Chip)
// 260 Pin SO-DIMM DDR4
// 128 GB SSD (M.2)
// 1 x G-LAN (Back side)
// 5 x USB (Back side)
// Power Supply DC 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

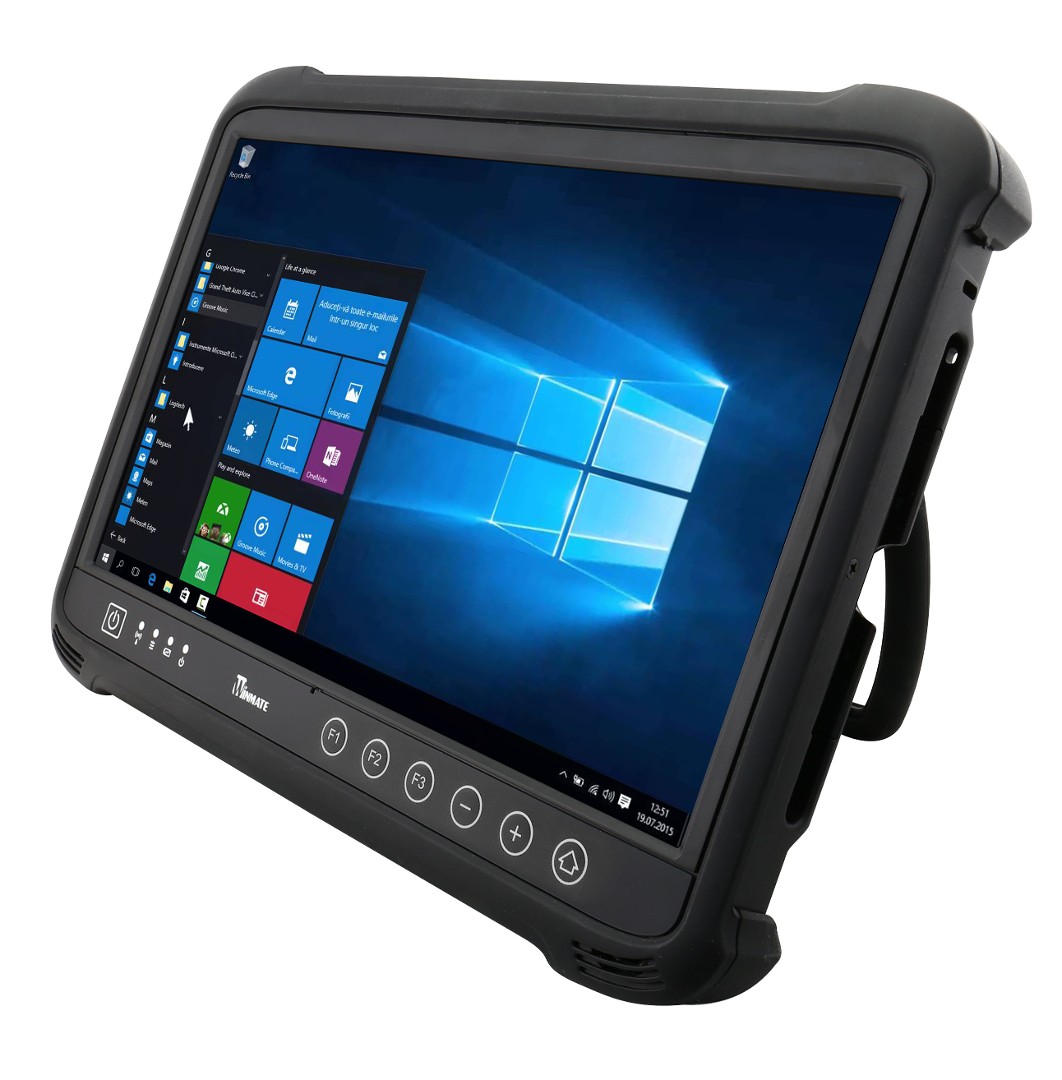

Basismodul: Winmate M133WK MPC
Allgemein | ||||
SKU / Artikelnummer | M133WK MPC | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Whiskey Lake | |||
Nummer | Intel Core i5-8265U | |||
CPU Kerne | 4 St | |||
Threads | 8 St | |||
Sockel | BGA 1528 | |||
Basis Frequenz | 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 3,9 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (M.2) | 128 GB | ||
Storage | Solid State Drive (M.2) 128 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Display | ||||
Display Type | 13,3" TFT-LCD | |||
Max. Auflösung | 1920 x 1080 | |||
Seitenverhältnis | 16 : 9 | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 500 cd/m² | |||
Betrachtungswinkel | Horizontal | 89 ° | ||
Vertikal | 89 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Audio | Lautsprecher | 2 St | ||
Leistung | 1 W | |||
Erweiterung | ||||
Storage | SD / MMC-Karte | |||
Netzwerk | ||||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n | |
Bluetooth | Versions / Features | v5.0 | ||
Netzwerk | Bluetooth, Wi-Fi | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 1 St | ||
Digital I/O | Anschluss | RJ-11 | ||
USB | USB v3.0 | 4 St | ||
USB v3.0 (Type C) | 1 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Kensington Lock | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 19V | |
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19V | |||
Batterie | Type | 15.4V, typ. 5900 mAh Li-Polymer-Akku | ||
Batteriebetriebszeit | Standard | 10 h | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 30 bis 75%, nicht kondensierend | ||
Abmaße | Breite | 338,2 mm | ||
Tiefe | 240 mm | |||
Höhe | 30 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Referenz Standard | MIL-STD-810G Method 514.6 Procedure I | ||
Schock | Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | ||
Sturzprüfung | Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | ||
Fallhöhe | 1,2 m | |||
Gewicht | 2200 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
RF | 1 St | |||
Batterie | 1 St | |||
Docking-Anschluss | 1 x 19 Pin Docking-Anschluss | |||
Farbe | Schwarz | |||
Coating | Beschichtung | Ja | ||
Material | Blendschutzglas | |||
Material | Magnesium | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | -, wird unterstützt | ||
Windows 10 Enterprise IoT LTSC (2019) | -, wird unterstützt | |||
Linux | Distribution | Ubuntu 18.04 LTS | ||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
