Vehicle Mounted Computer
// 7" TFT-LCD
// Intel Celeron N3350
// Touchscreen (Kapazitiv)
// IP65 (frontseitig)
// SoC (System-On-Chip)
// 240 Pin DIMM DDR3L
// 128 GB SSD (M.2)
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply ATX
// DC Wide range 9~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate FM07P
Allgemein | ||||
SKU / Artikelnummer | FM07P | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Celeron N3350 | |||
CPU Kerne | 2 St | |||
Threads | 2 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz | |||
Max. Turbo-Taktfrequenz | 2,4 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 240 Pin DIMM DDR3L | ||
DIMM Datarate | 1600 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (M.2) | 128 GB | ||
Storage | Solid State Drive (M.2) 128 GB | |||

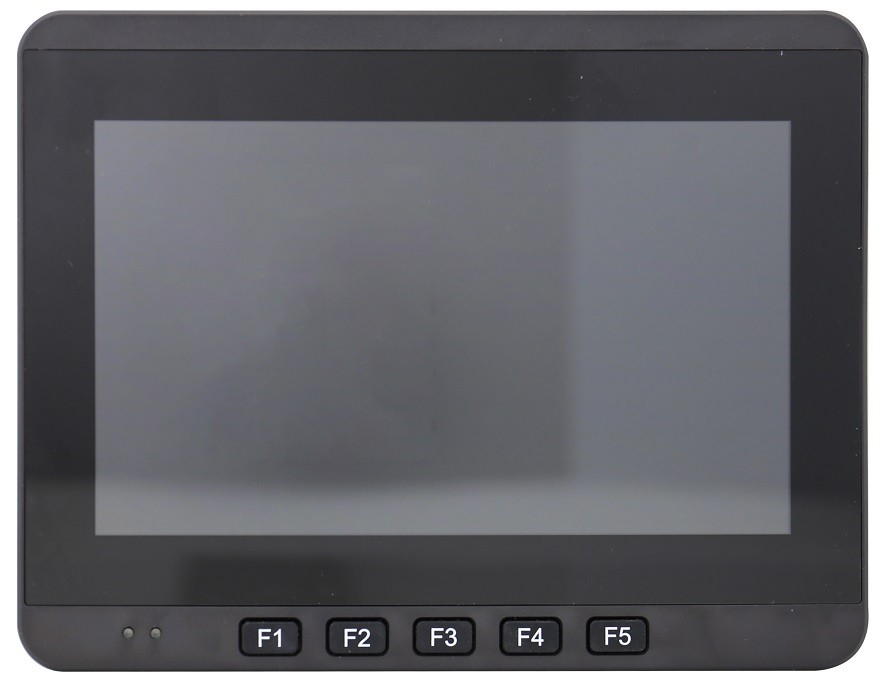

Display | ||||
Display Type | 7" TFT-LCD | |||
Max. Auflösung | 1024 x 600 | |||
Seitenverhältnis | 128 : 75 | |||
Kontrast | 800:1 | |||
Leuchtdichte | 1000 cd/m² | |||
Betrachtungswinkel | Horizontal | 85 ° | ||
Vertikal | 85 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Multitouch | 2-Punkt | |||
Audio | Lautsprecher | 1 St | ||
Leistung | 1 W | |||
Erweiterung | ||||

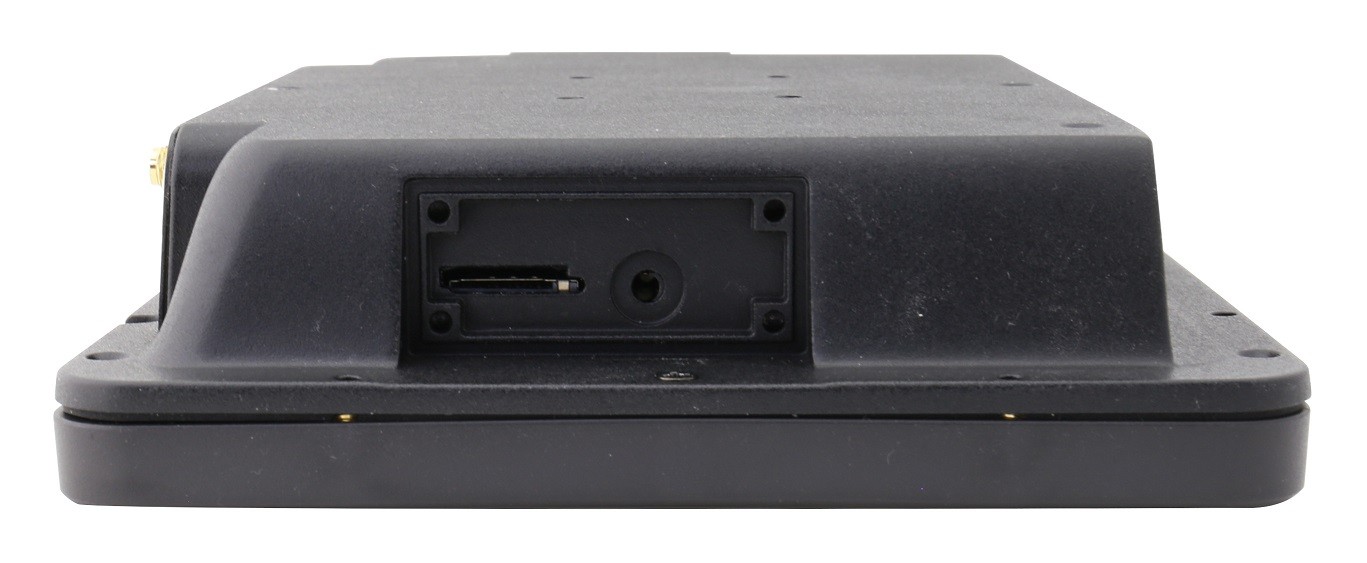

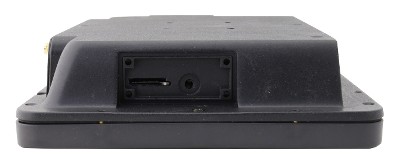

SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n/ac | |
Bluetooth | Versions / Features | v4.0 | ||
Netzwerk | 1x G-LAN, Wi-Fi, Bluetooth | |||

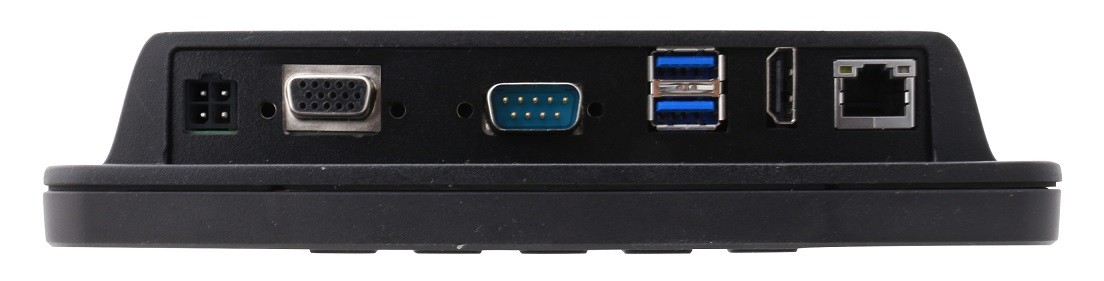

Externe I/O (Rückseite) | ||||
Ethernet | M12 Steckverbinder | 1 St | ||

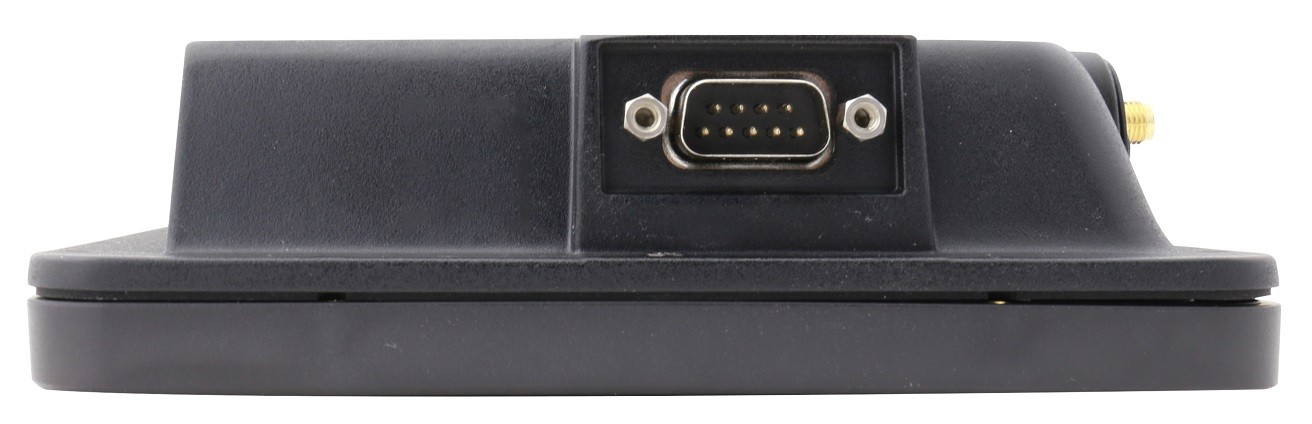

Seriell | RS-232 | DB-9 | 1 St | |
Digital I/O | Bits | 8-Bit | ||
Anschluss | DB-15 | |||
USB | USB v2.0 | 2 St | ||
CAN Bus | Anschluss | DB-15 | ||
Stück | 2 St | |||
Sensor | ||||
GPS Module | u-blox NEO-M8N | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | ATX | Anschluss | 4-Pin ATX (12V DC) | |
DC | Weitbereich | Ja | ||
Bereich | 9~36V | |||
Anschluss | M12 | |||
Ignition (IGN) | Ja | |||
Stromversorgung - Eingang | ATX: 4-Pin ATX (12V DC), DC: 9~36V | |||
Typ (Ausgang) | DC | Ignition (IGN) | Ja | |
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Lagerung | 10 bis 95%, nicht kondensierend | |||
Abmaße | Formfaktor | 7" | ||
Breite | 189,93 mm | |||
Tiefe | 39,8 mm | |||
Höhe | 145,93 mm | |||
Schutzart (IP) | IP65 (frontseitig) | |||
Vibration | Vibration | 1,96 / 2,18g RMS für XYZ / 5~500 Hz | ||
Referenz Standard | MIL-STD-810G Method 514.6 Procedure I | |||
Schock | Messdaten | 30G, 18 ms | ||
Referenz Standard | MIL-STD-810G Method 516.6 Procedure I | |||
Gewicht | 1000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||

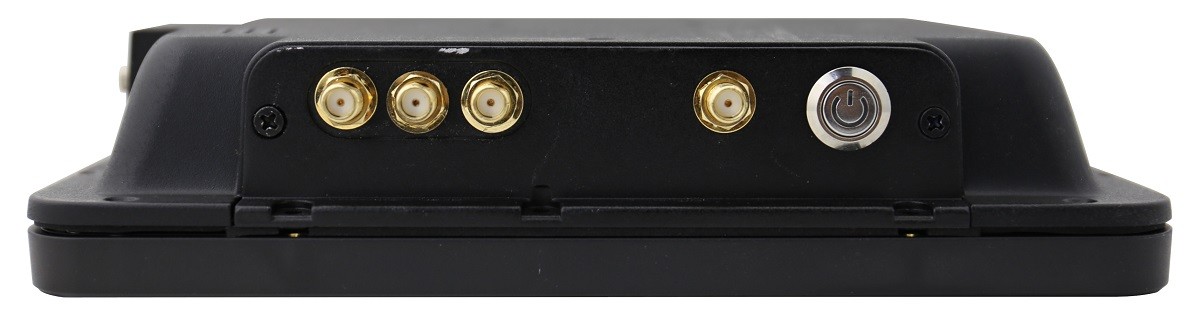

Antennenlöcher | 4 St | |||
Material | Aluminium | |||

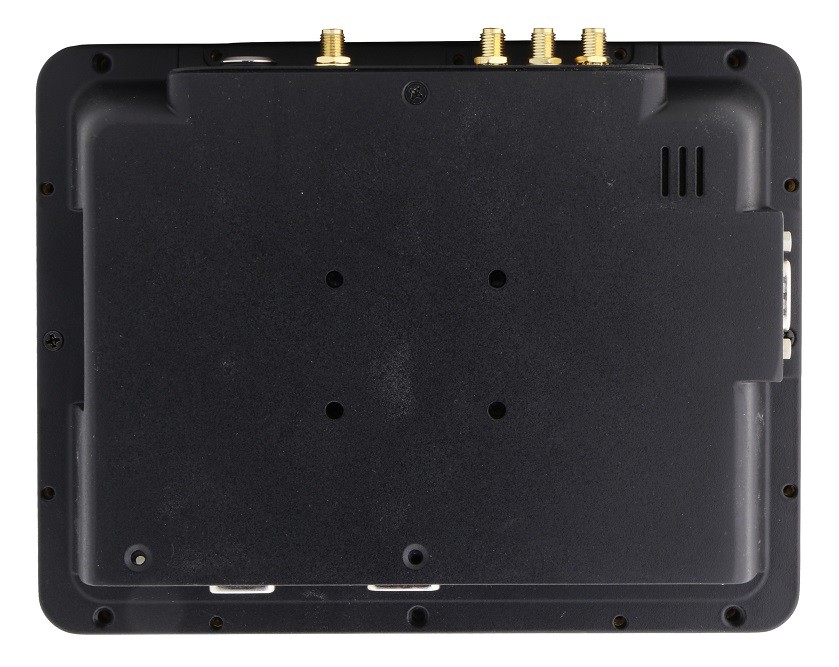

Montageoption | VESA | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Ubuntu 18.04 LTS | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
