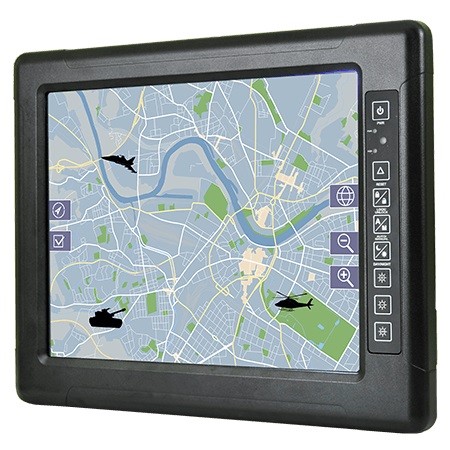

Military Panel PC
// 15" TFT-LCD Panel-PC
// Intel Celeron N2930
// Passiv cooled
// IP65 (komplett)
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 128 GB SSD (mSATA)
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// Power Supply DC 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Winmate R15IB3S-MLA3HB
Allgemein | ||||
SKU / Artikelnummer | R15IB3S-MLA3HB | |||
Produktgrunddaten | ||||
Hersteller | Winmate | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Bay Trail | |||
Nummer | Intel Celeron N2930 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1170 | |||
Basis Frequenz | 1,83 GHz | |||
Max. Turbo-Taktfrequenz | 2,16 GHz | |||
Thermal Design Power (TDP) | 7,5 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
DIMM Datarate | 1600 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB | |||
Storage | Solid State Drive (mSATA) | 128 GB | ||
Storage | Solid State Drive (mSATA) 128 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Display | ||||
Display Type | 15" TFT-LCD | |||
Max. Auflösung | 1024 x 768 | |||
Seitenverhältnis | 4 : 3 | |||
Kontrast | 2500:1 | |||
Leuchtdichte | 1000 cd/m² | |||
Betrachtungswinkel | Horizontal | 88 ° | ||
Vertikal | 88 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||

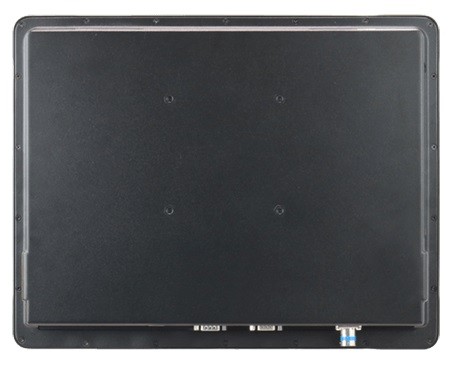

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
USB | USB v2.0 | 1 St | ||
USB v3.0 | 1 St | |||
Sensor | ||||
Lichtsensor | Ja | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 12V | |
Anschluss | MIL-DTL-38999/1 | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 15" | ||
Breite | 398 mm | |||
Tiefe | 58 mm | |||
Höhe | 308 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | MIL-STD-810G Method 514.6 | |||
Schock | Messdaten | 30G, 18 ms | ||
Sturzprüfung | Referenz Standard | MIL-STD-810G Method 516.6 | ||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Farbe | Schwarz | |||
Coating | Beschichtung | Ja | ||
Material | Blendschutzglas | |||
Material | Aluminium, Stahl | |||
Montageoption | VESA | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | MIL-STD 461E/F/G | |||
RoHS konform | Ja |
