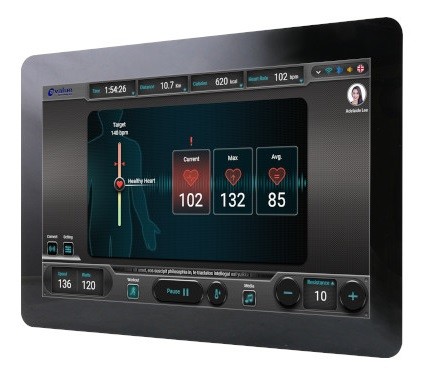

Open Frame Panel PC
// 10,1" TFT-LCD Panel-PC
// Intel Celeron J3455
// Touchscreen (Kapazitiv)
// SoC (System-On-Chip)
// 204 Pin SO-DIMM DDR3L
// 1 x G-LAN (Rückseite)
// 2 x USB (Rückseite)
// 2 x USB (intern)
// 2 x Seriell I/O
// 32 GB eMMC
// Digital I/O (16-Bit)
// Stromversorgung DC 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue OFT-10W04
Allgemein | ||||
SKU / Artikelnummer | OFT-10W04 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Celeron J3455 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,5 GHz | |||
Max. Turbo-Taktfrequenz | 2,3 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 10 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
DIMM Datarate | 1866 MT/s | |||
Steckplätze | 1 St | |||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 32 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics 500 | |||
Bildschirme (Multidisplay) | 2 Displays | |||
Display | ||||
Display Type | 10,1" TFT-LCD | |||
Max. Auflösung | 1280 x 800 | |||
Seitenverhältnis | 8 : 5 | |||
Kontrast | 1000:1 | |||
Leuchtdichte | 350 cd/m² | |||
Reaktionszeit | 25 ms | |||
Betrachtungswinkel | Horizontal | 80 ° | ||
Vertikal | 80 ° | |||
Hintergrundbeleuchtung | Ausführung | LED | ||
Touchscreen | Typ | Kapazitiv | ||
Lichtdurchlässigkeit | 86 % | |||
Interface | USB | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Unterstütze Abmaße | 3042 | |||
Slot 2 | Key ID | E | ||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | Micro-SD | |||
Netzwerk | ||||
Wireless | Wi-Fi | Protokoll | 802.11 a/b/g/n/ac | |
Netzwerk | Wi-Fi | |||

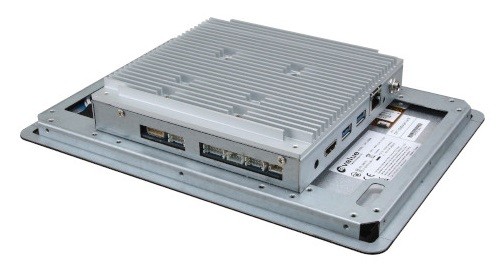

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Speaker-Out | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.0 | 2 St | ||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.54 mm Pitch) | 1 St | |
USBOTG (USB On-The-Go) | Micro USB | 1 St | ||
Seriell | RS-232 | Ports (2.00 mm Pitch) | 1 St | |
RS-422 / 485 | Ports (2.00 mm Pitch) | 1 St | ||
Digital I/O | Bits | 16-Bit | 1 St | |
I²C | 2 St | |||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Audio | Mic-In | 1 St | ||
Amplifier | 1 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | 10,1" | ||
Breite | 254 mm | |||
Tiefe | 178 mm | |||
Höhe | 41,6 mm | |||
Gewicht | 1300 g | |||
Bedienelemente | Power | 1 St | ||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | -, wird unterstützt | ||
Unterstützte BS | Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
